Please Read Carefully:
This headlight is designed for Newer model bikes as it has the lugs sticking out of the headlight rather than sticking up from the mudguard on the older bikes. Many bikes pre 2013 already have new style front mudguards to house the newer and bright H4 bulb headlight. A quick check is if your mudguard has two holes for the headlight to locate you are good to go.
If required a new style front mudguard and adapter bracket is available on ebay for £36, there i a photo to show you what your looking for
Replacement LED Headlight for KTM bikes years 2008 - 2013
Easy and fast mounting using rubber bands supplied

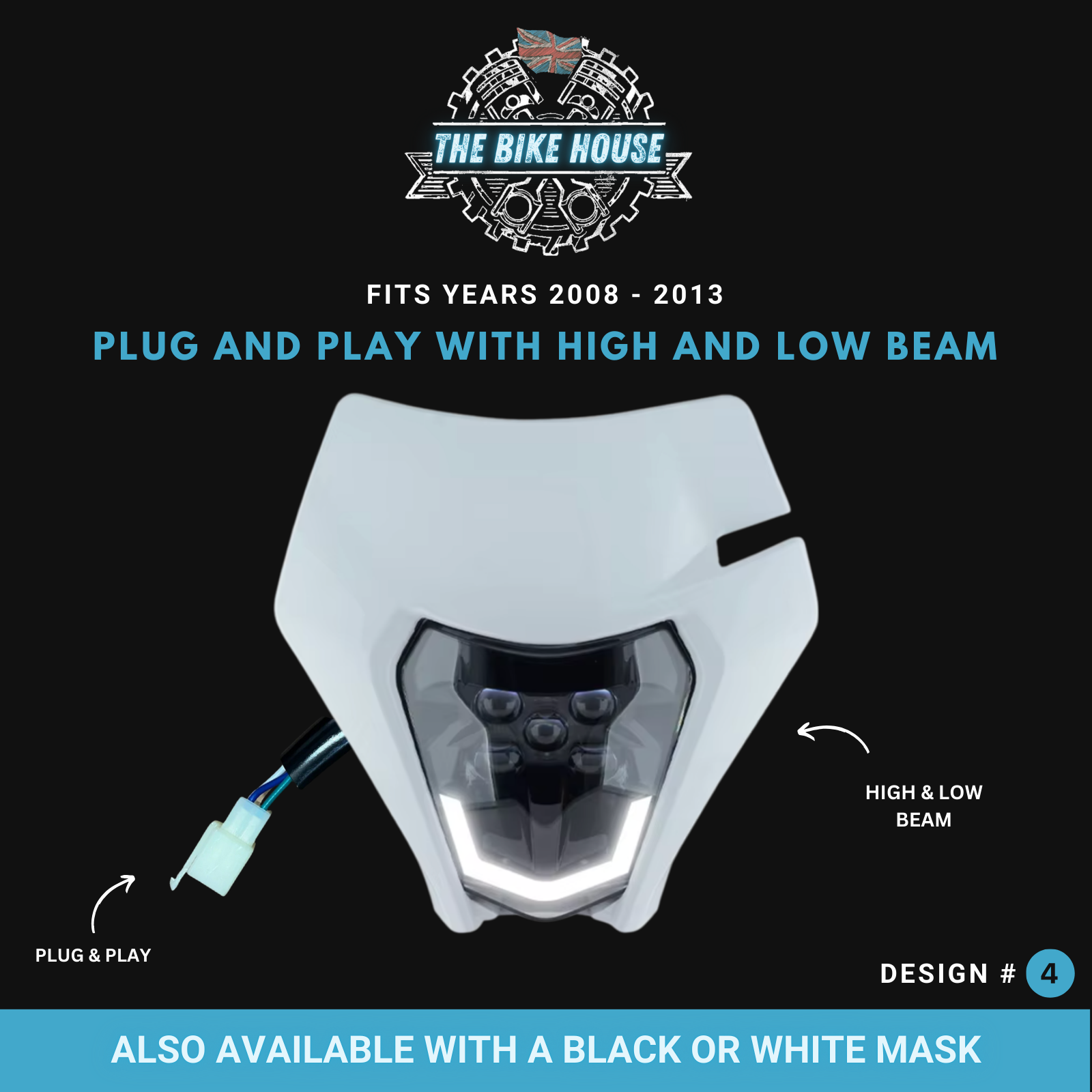

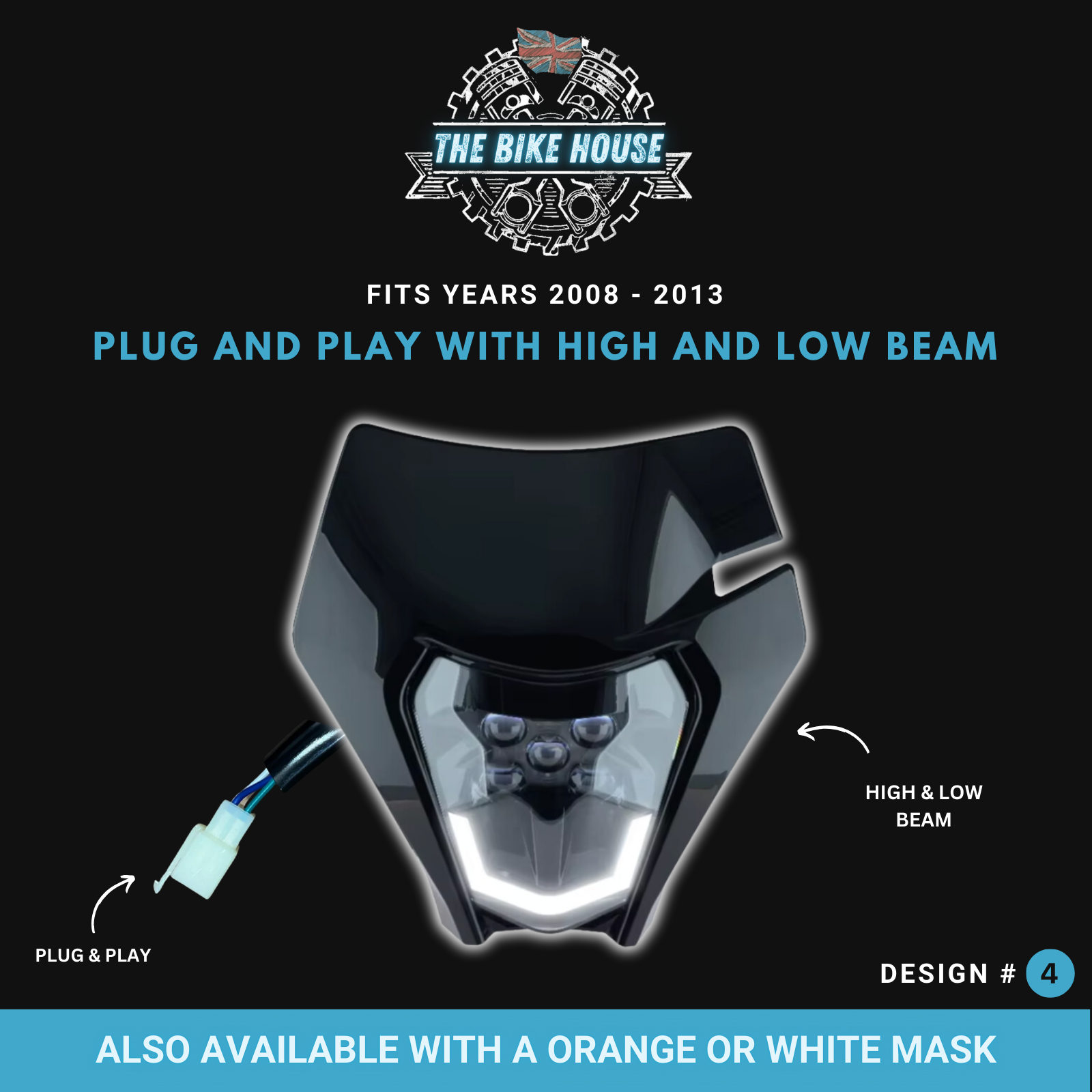

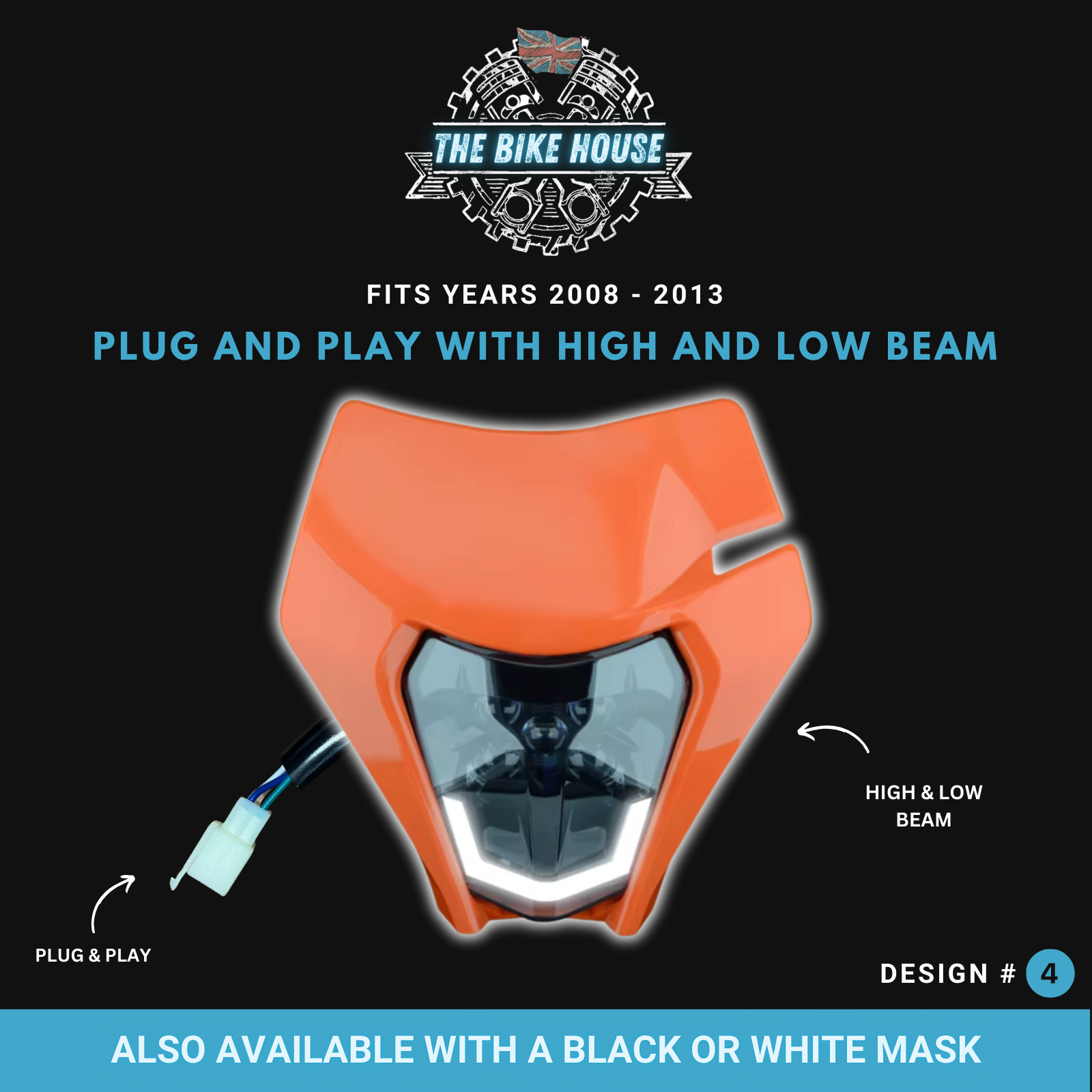

OEM headlight connection installed so no wiring required simply plug and play
Fitment
KTM EXC 125 - 2008 - 2013
KTM EXC 200 - 2008 - 2013
KTM EXC 250 - 2008 - 2013
KTM EXC 300 - 2008 - 2013
KTM EXC-F 250 - 2008 - 2013
KTM EXC-F 350 - 2008 - 2013
KTM EXC-F 450 - 2008 - 2013
KTM EXC-F 500 - 2008 - 2013
Please note that if your bike is not listed above it is still possible to install on your bike but for peak performance you will need to wire in line a ac to dc rectifier which are also available on ebay for about £3 and can be wired into the positive and negative of the headlight
Specification
Plug and play installation
Hi and Low beam settings
Hi beam - 5 Lights illuminated at 4200 lumens
Low Beam - 3 lights illuminated at 2100 lumens
Waterproof unit
Centre Light and mask designed to OEM dimensions meaning both interchangeable with existing OEM parts
Can be powered by AC or DC current
Life expectancy - 20,000 hours
Operating Temperature - ( -40 Degrees > +65 Degrees )
Light Temperature - Cool white 6000k
IP67 Rating
Voltage 12 - 60 v
Power draw 36 W

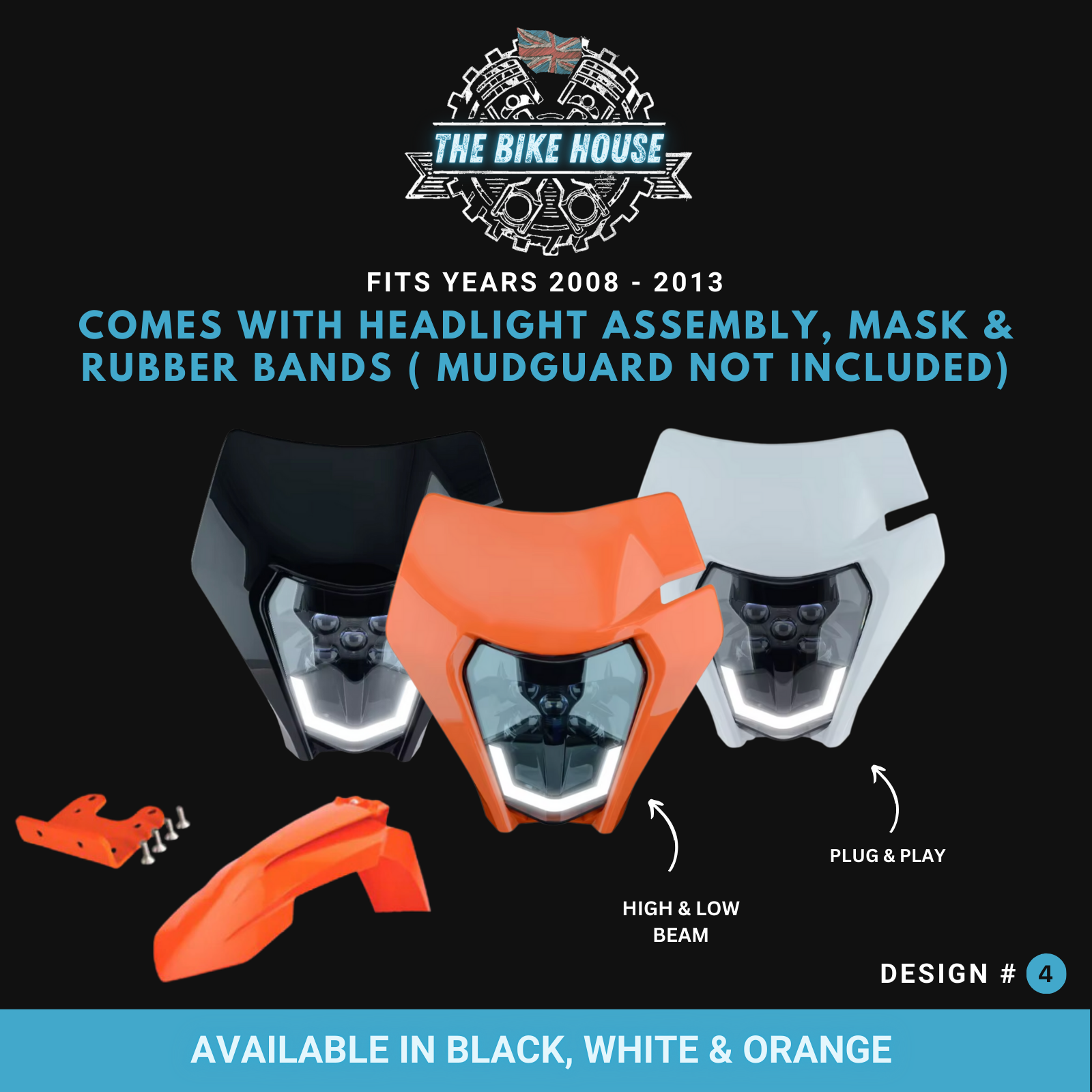

Package Includes
Headlight Mask in Black
LED centre Light
2 x Rubber Straps
