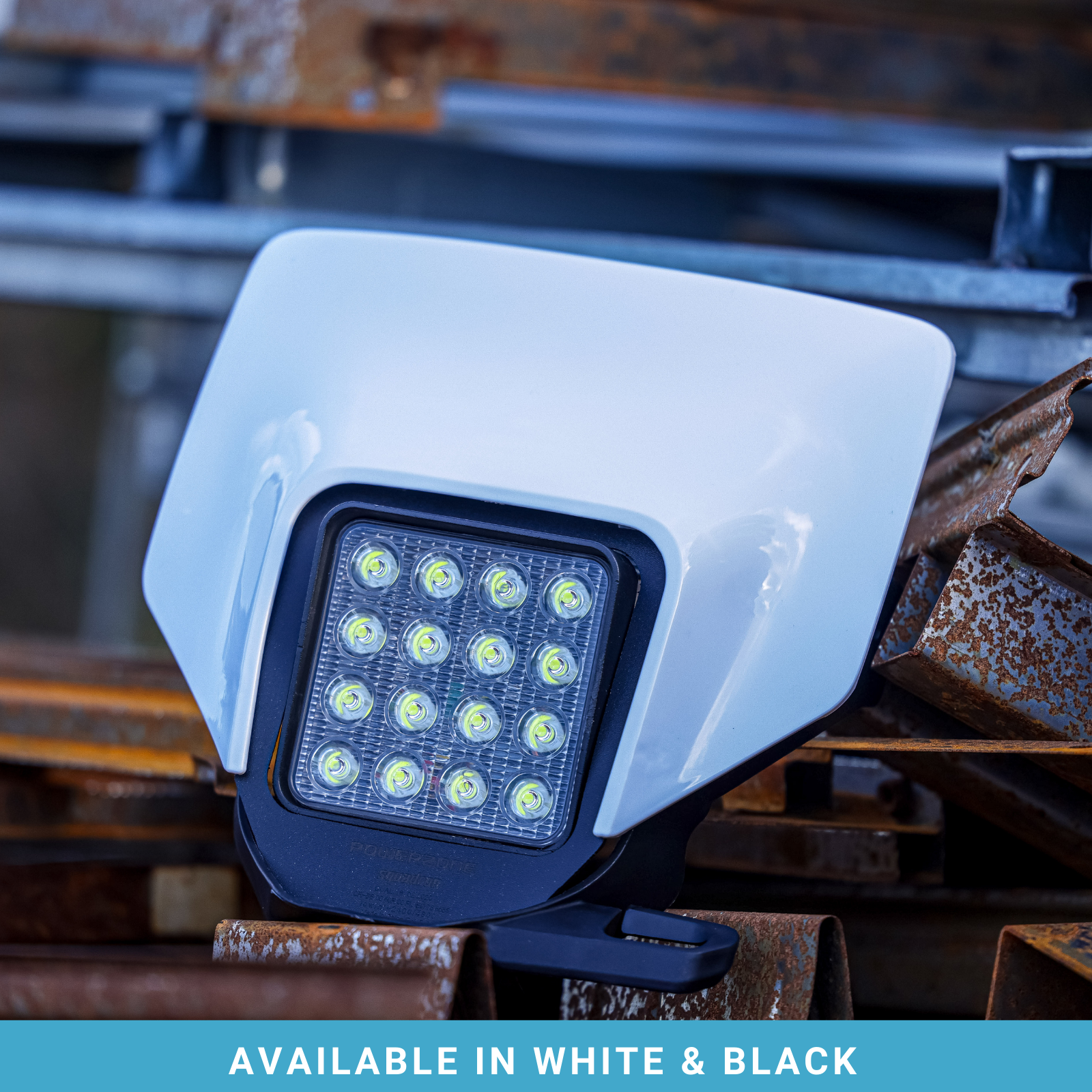

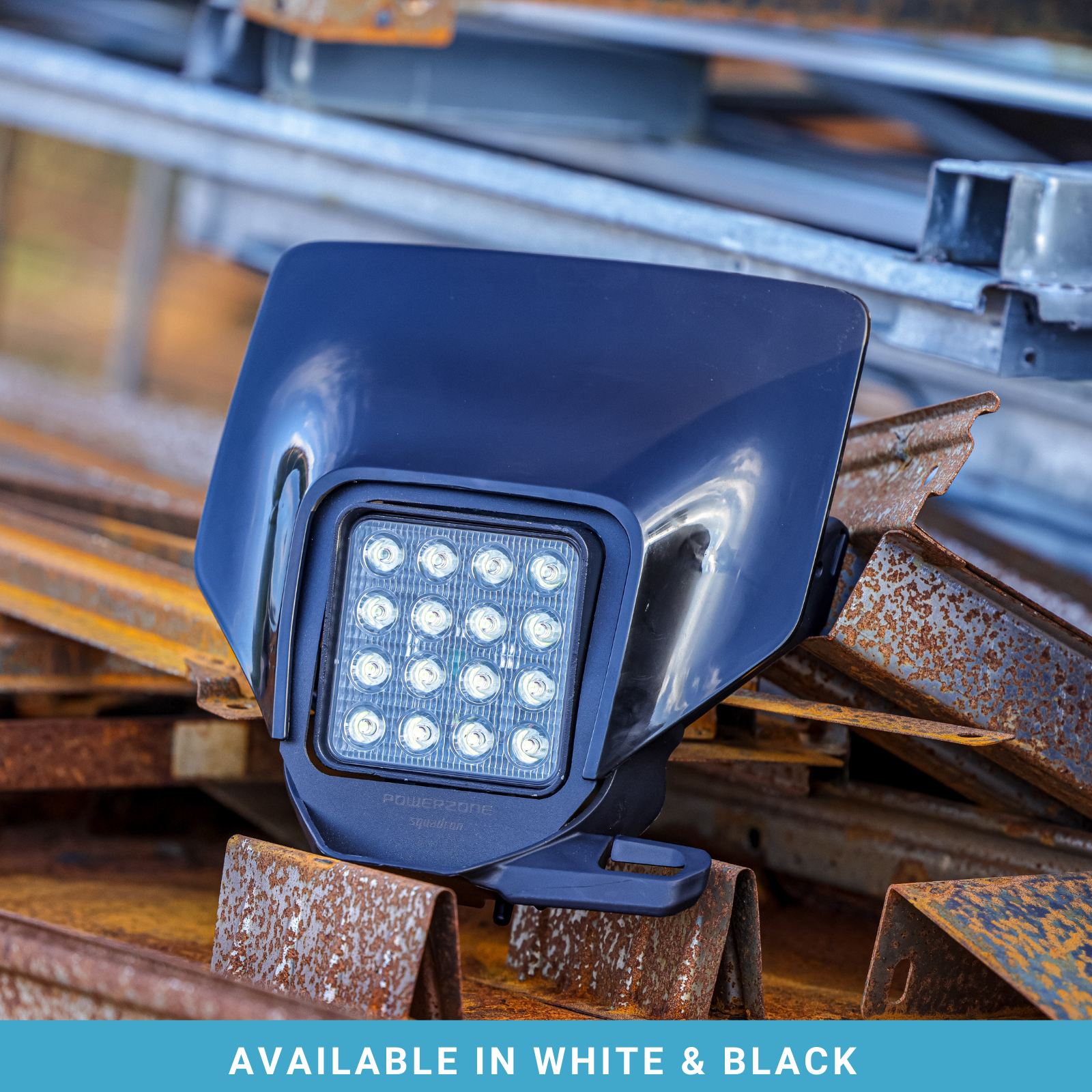

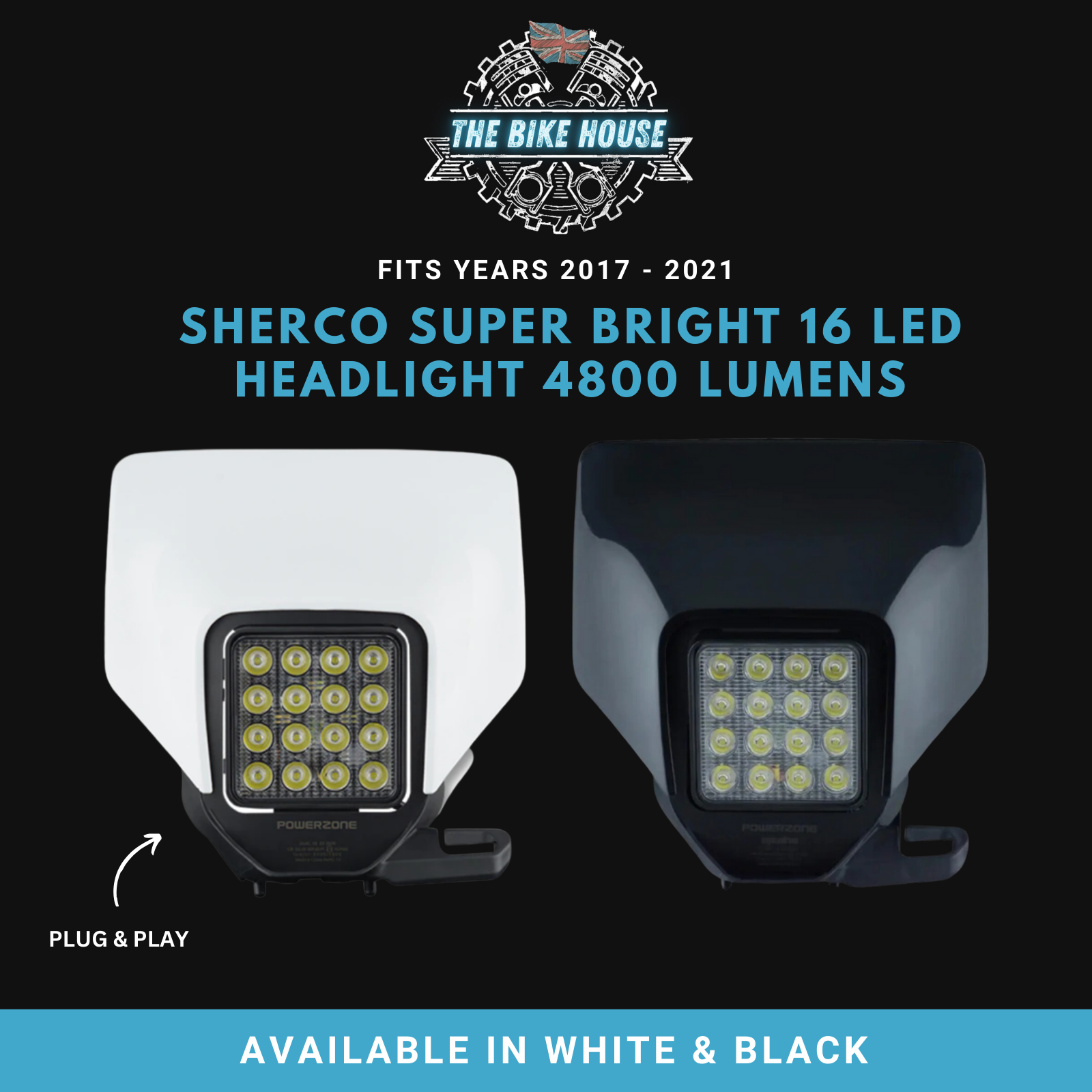

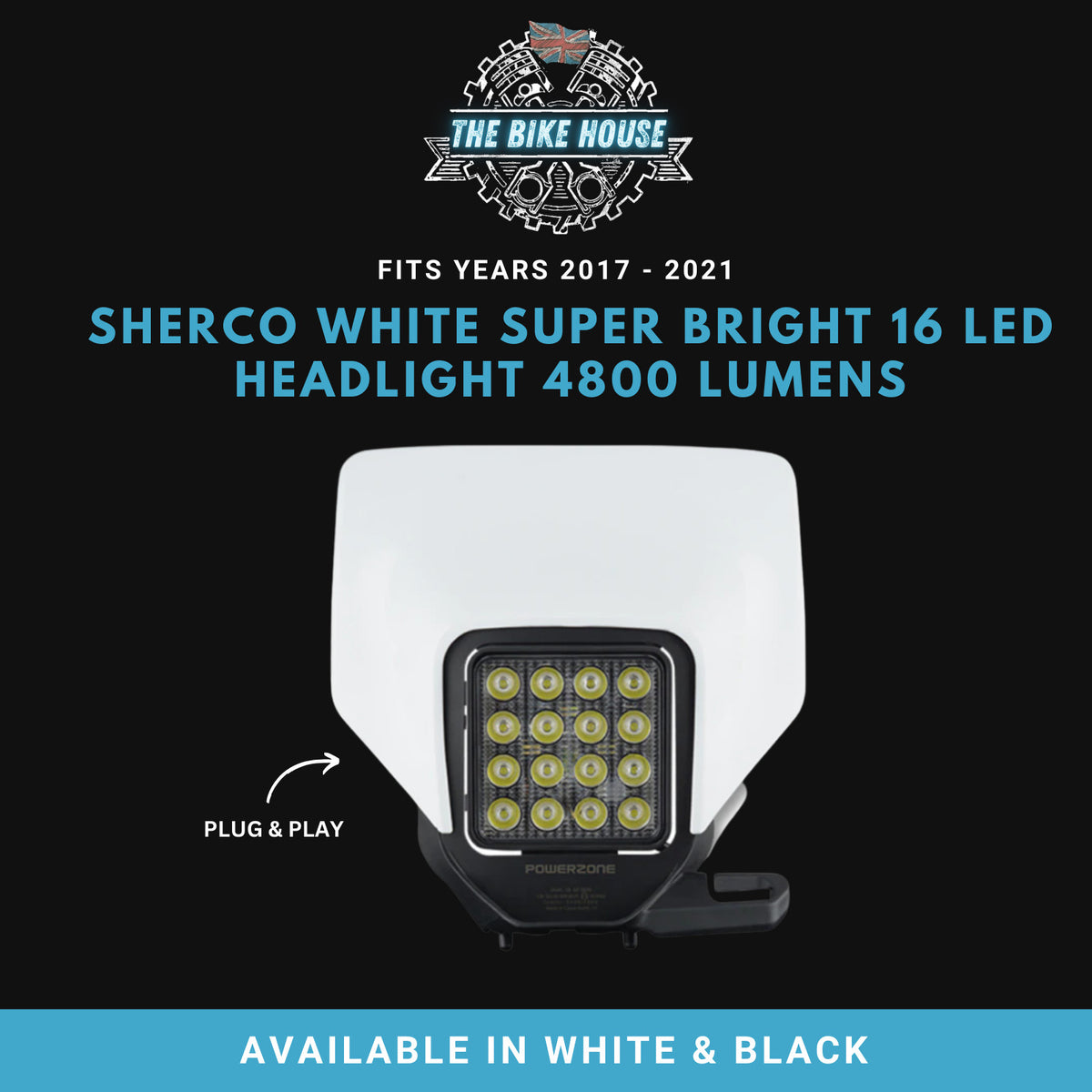

Replacement LED Headlight for Sherco bikes years 2017 to 2021
Please note this headlight is designed for the husqvarna however we have had customers install them on the sherco with great results
The headlight locates on the rubber bands only and is sufficient to hold it in place
Easy and fast mounting using rubber bands supplied
Fitment
Sherco SE & SEF models
Years 2017 - 2022
OEM headlight connection installed simply change the pin locations then plug in no modifications required
Simply use a small electrical screwdriver to remove the pins out of the plug and relocate them so the colours match correctly to the pins on your bike. This takes two minutes to do
Wiring of the headlight
Black is negative
Red is low beam
Yellow is high beam
Specifications
Plug and play installation no modifications required
E marked safe for on road use and will pass an MOT
Hi and Low beam settings
Hi beam - 16 LED Lights illuminated at 4800 lumens
Low Beam - 16 LED lights dimmed 2400 lumens
Waterproof unit
Centre Light and mask designed to OEM dimensions meaning both interchangeable with existing OEM parts
Can be powered by AC or DC current
Life expectancy - 20,000 hours
Operating Temperature - ( -40 Degrees > +65 Degrees )
Light Temperature - Cool white 6000k
IP67 Rating
Voltage 12 - 60 v
Package Includes
Headlight Mask in White
LED centre Light
2 x Rubber Straps
