CITROEN DISPATCH REVERSING CAMERA REVERSE & 7" MONITOR BRAKE LIGHT 2007 - 2016

Camera Description

Please note this is an aftermarket part designed to fit Citroen Dispatch vans from years 2007 - 2016.

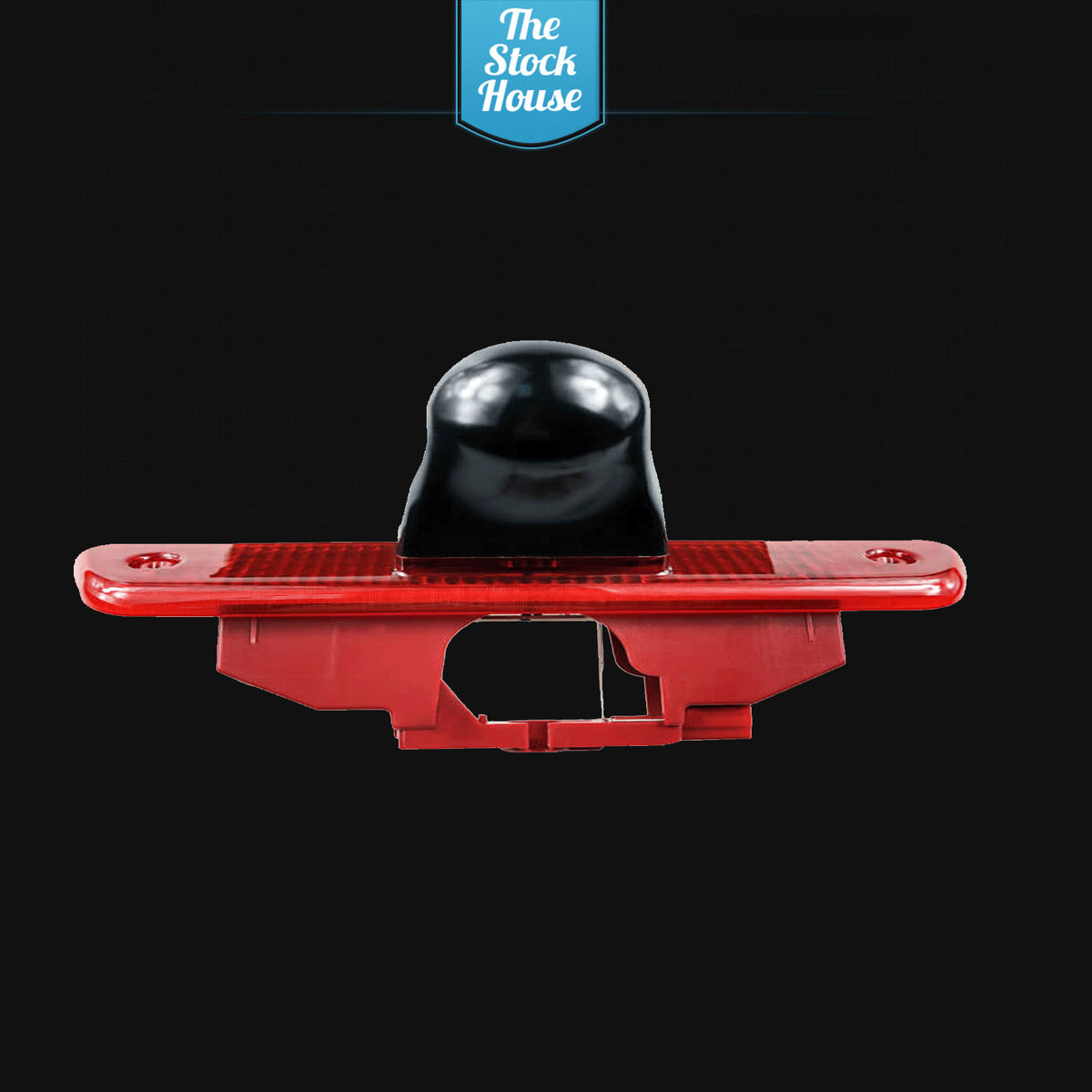

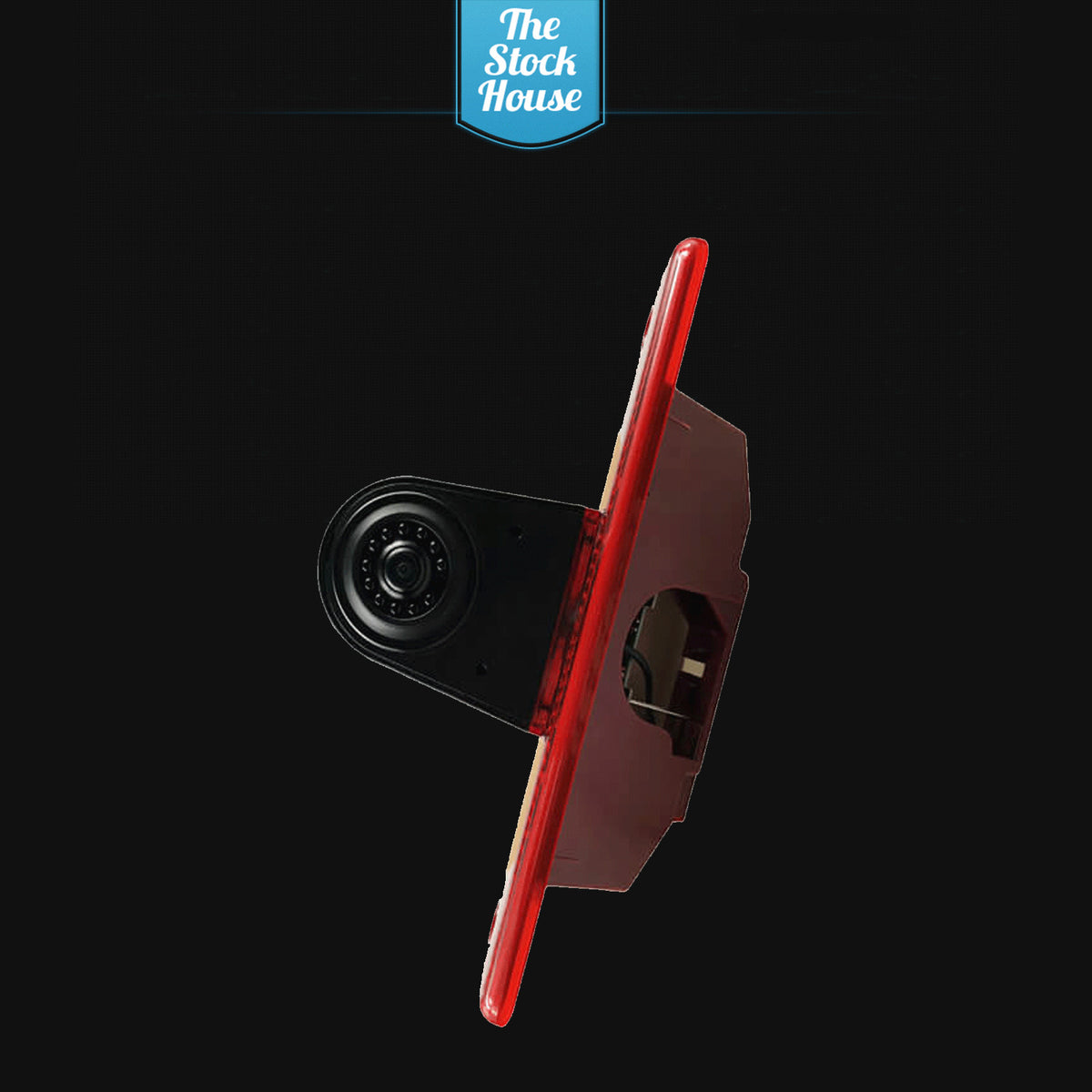

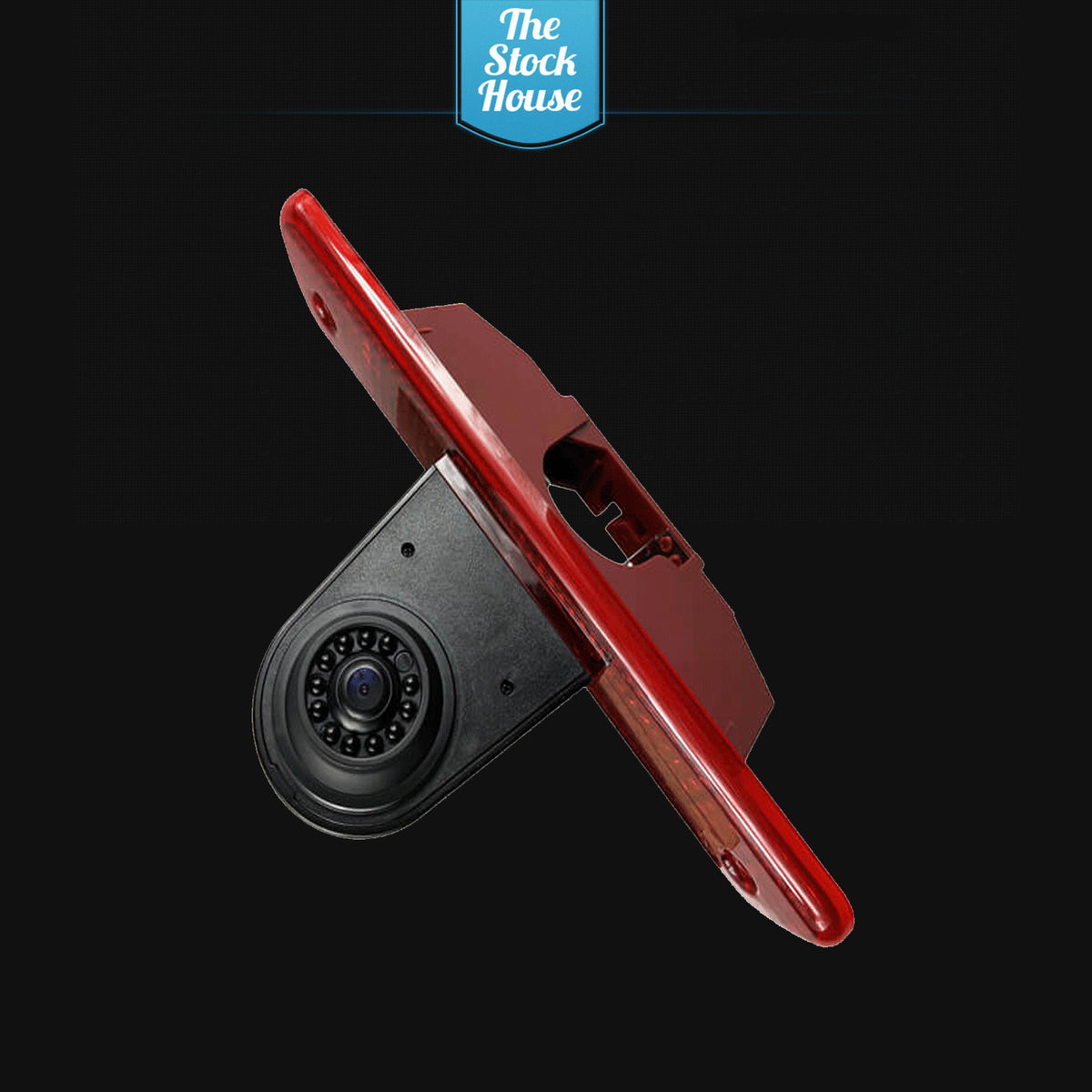

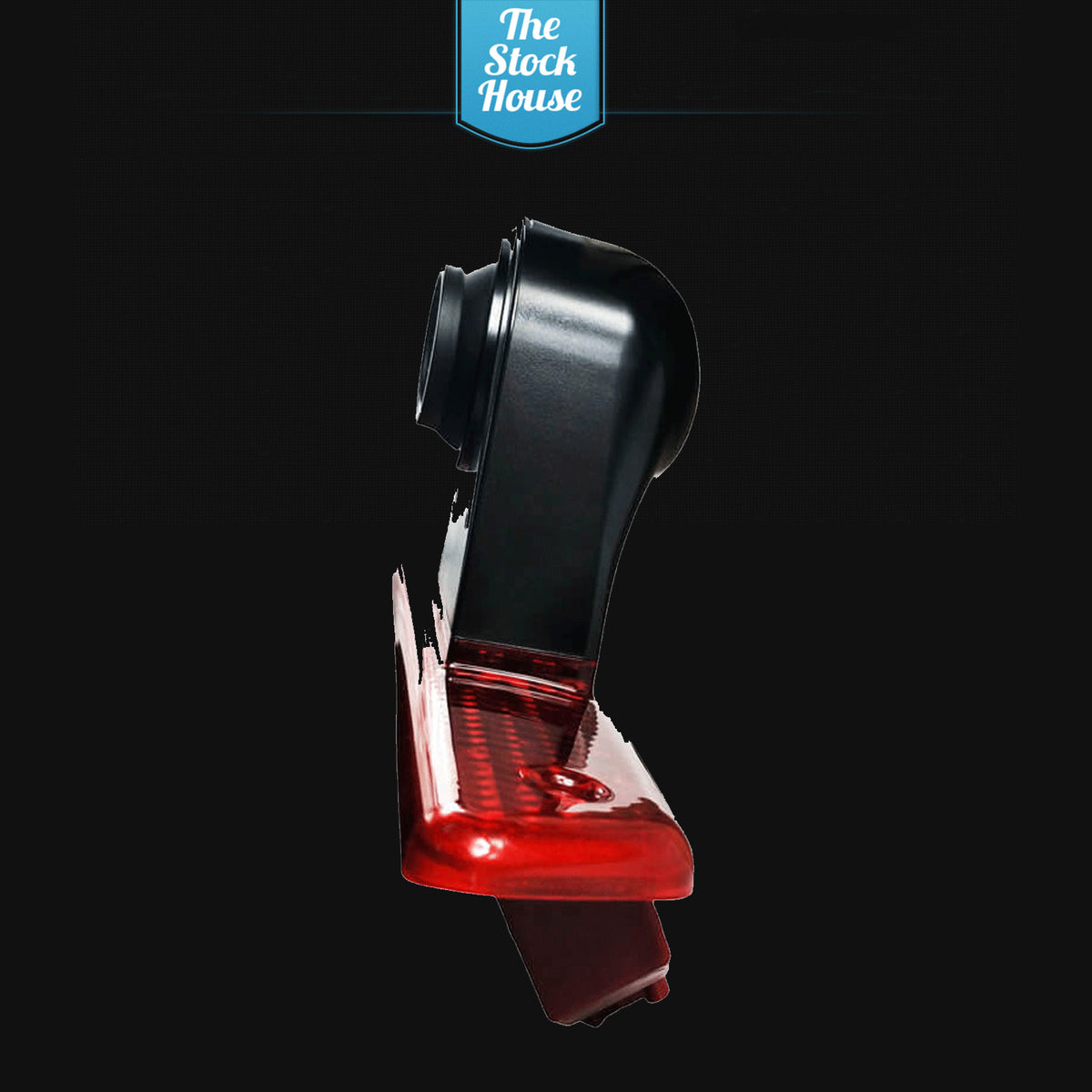

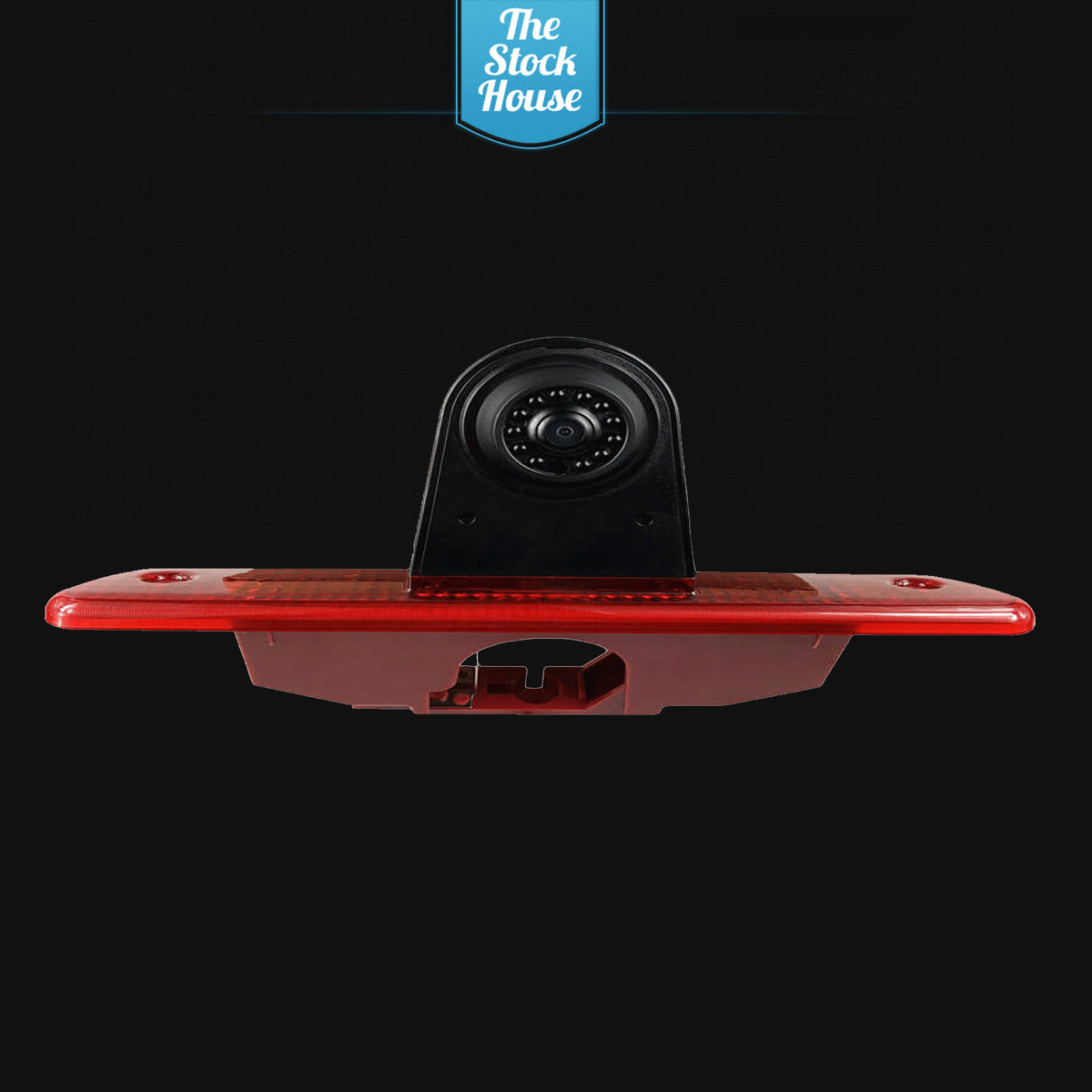

This camera is designed to replace the 3rd brake light situated on the rear of the vehicle.

Please note this kit comes with everything required to install this system

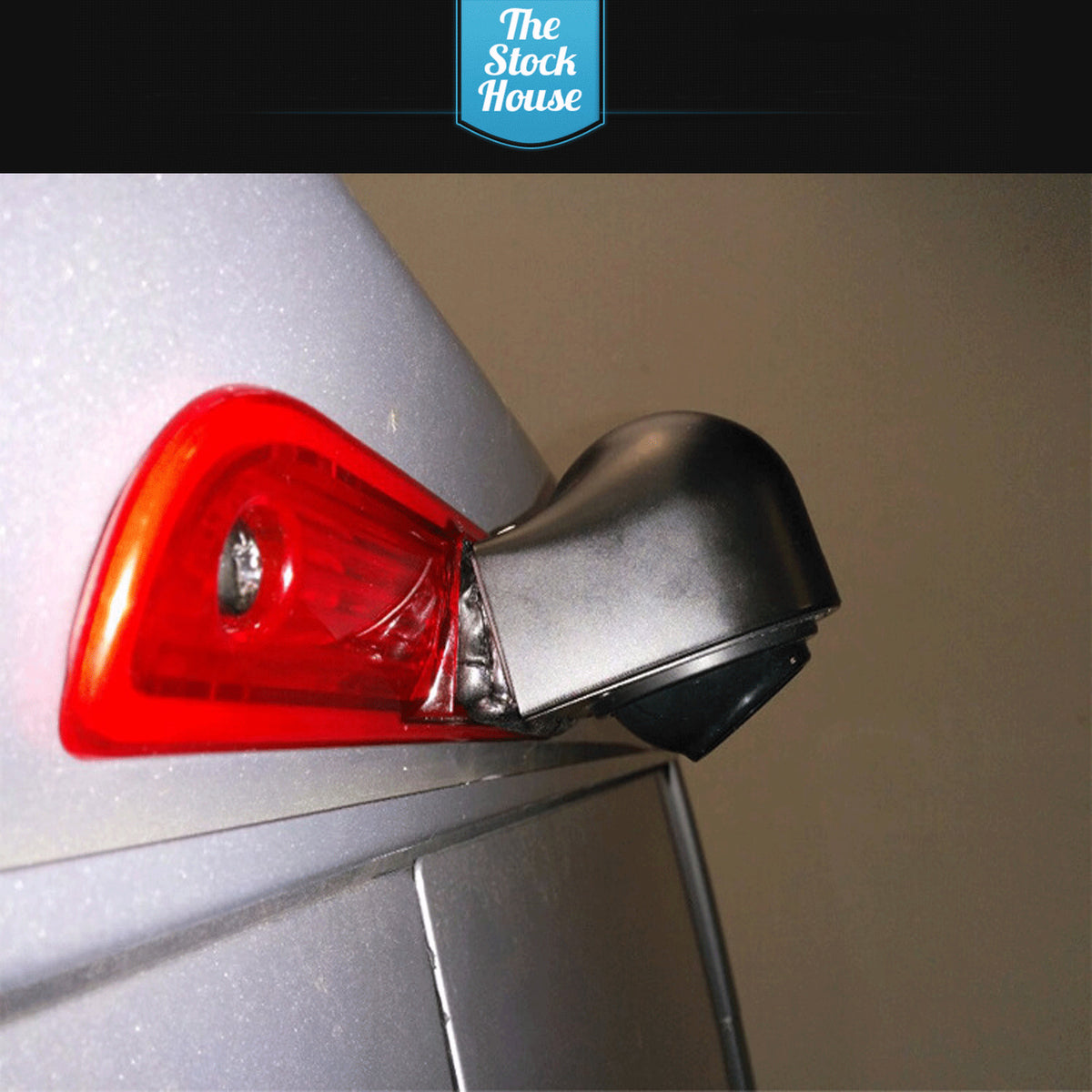

The old light is simply removed and replaced with this unit. A 10m cable then is run to your monitor at the front of the vehicle.

Please see the instructions below to see installations instructions.

Camera specifications

Cable Length - 10 Meters

• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ color HD CMOS
• System: NTSC
• Perfect IR night vision, 8 pcs IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

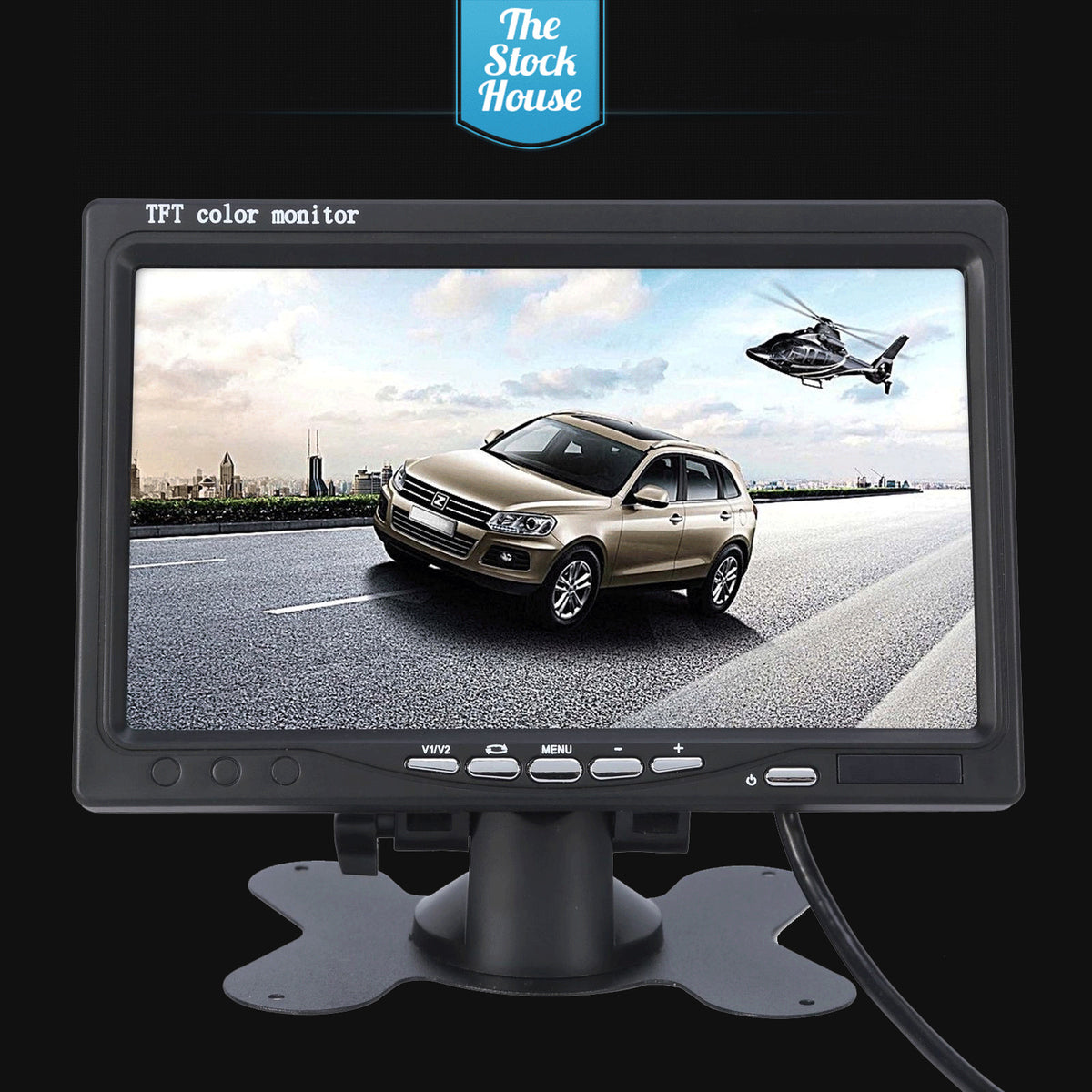

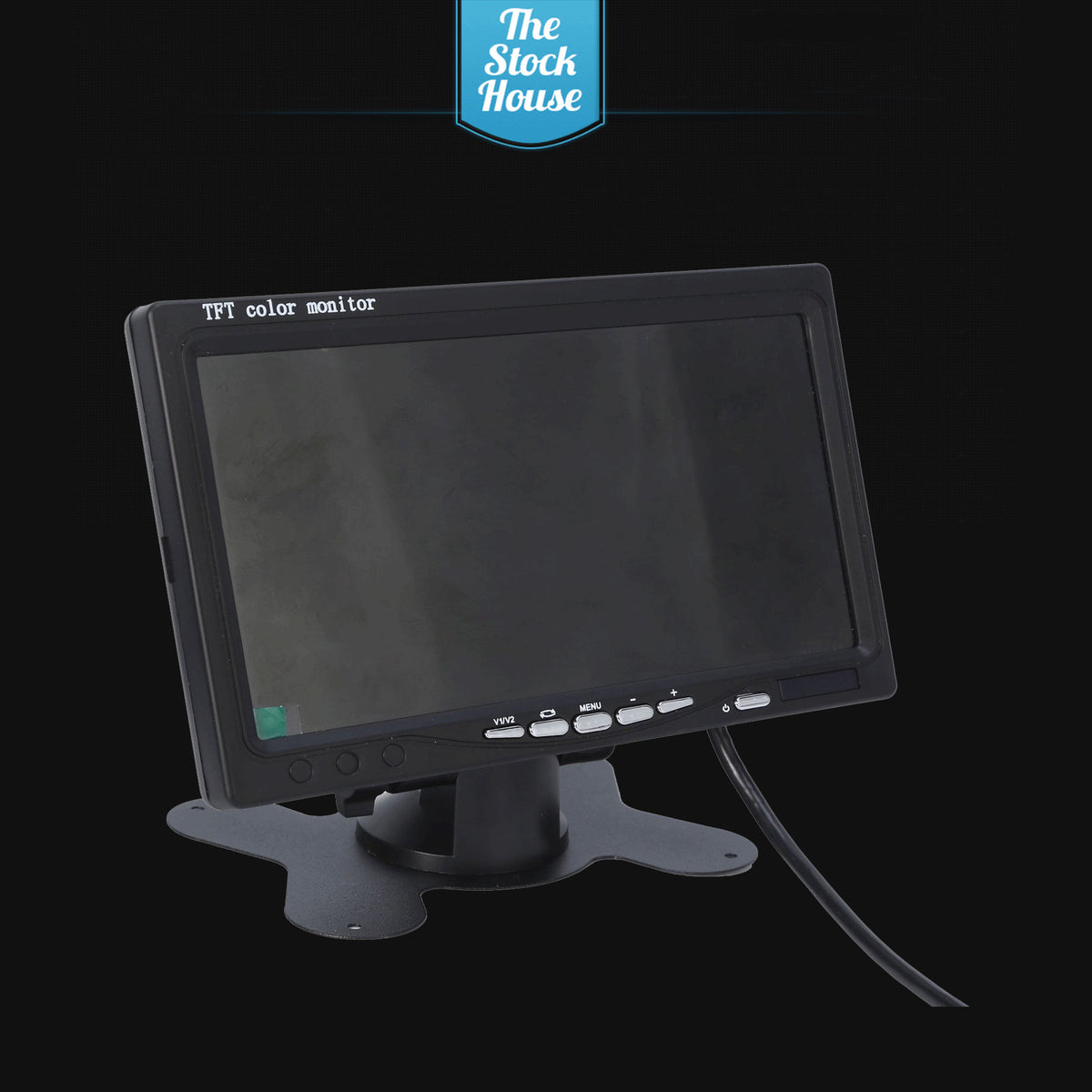

7" Monitor Description

• Power Consumption: Around 8W
• Contrast Ratio: 100:1
• PAL/NTSC auto switch
• Housing Colour: Black
• Screen: Colour 7" LCD TFT
• Display Size: 7"
• Item Size: Approx 195*135*25mm (L*W*D)
• Material Type: ABS plastic
• Item Weight: 379 g
• 2-channel video input:V1/ V2 auto switching(V1 display first )

Note: Please Connect the Rearview camera's video cable with LCD's yellow cable (Video V1)Then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)

Features

Simple to install

Full colour display

Installation tips:Two-way video inputs will display a black screen when no there is no signal

Please note screen can be rotated if you wish to mount upside down

Wifi Transmitter Description

Wireless 2.4GHz transmitter /receiver set (12Volt for vehicle installation)

• Work Range:Up to about 80m(Hollowness)
• Connects to rear-view camera and front video screen
• Power: DC 12V
• Transmitter/Receiver Cable Length:1.5m

Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

The transmitter also includes a handy pass through for the power so you can connect it inline with your camera.

Wireless transmitter with male phono plug and male 2.5mm power plug for supplying power to the camera.

Wireless receiver with male phono plug for connection to monitor.

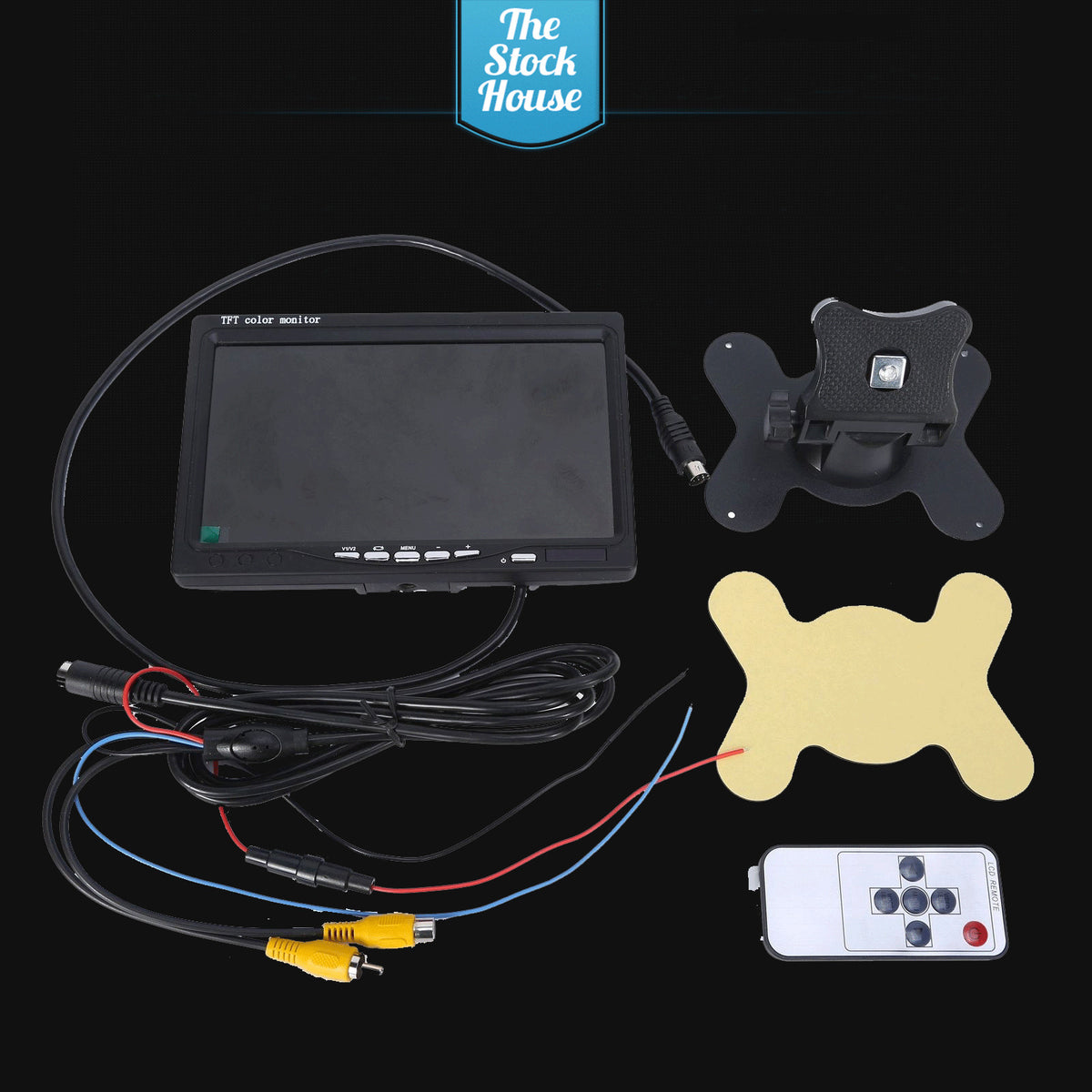

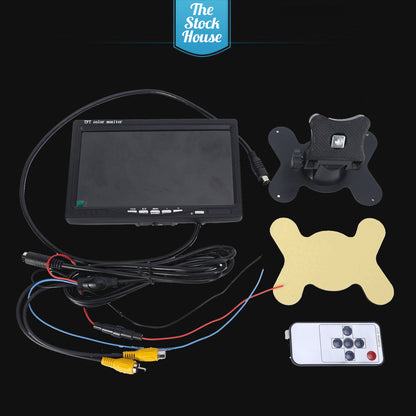

Package Includes

Brake light reversing camera

7" Monitor

10 meter 4 pin extension cable

Male to Male connection

4 Pin accessory Cable

12v Power adaptor for camera

12v Power adapter for Monitor

1 x 2.4Ghz Transmitter

1 x 2.4Ghz Receiver

Installation Instructions

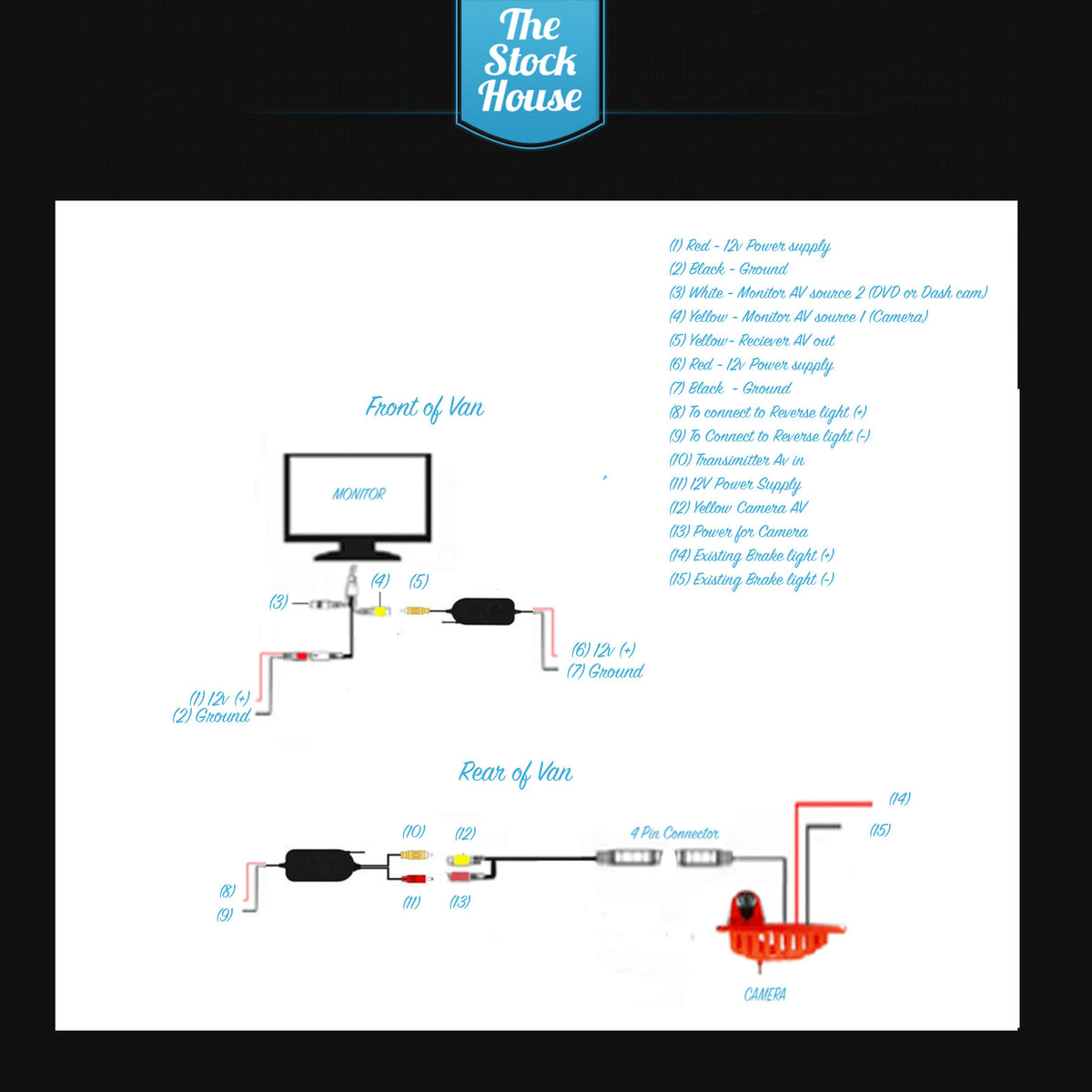

Please refer to the diagram for reference which can be found in the in images for this kit

We recommend before installing the product in place test everything to check that it works.

First thing to consider is which power source you are going to use for the Monitor and Reciever. This should be fused.

Below is a description of each wire

(1) Red - 12v Power supply

(2) Black - Ground

(3) White - Monitor AV source 2 (DVD or Dash cam)

(4) Yellow - Monitor AV source 1 (Camera)

(5) Yellow- Receiver AV out

(6) Red - 12v Power supply

(7) Black - Ground

(8) To connect to Reverse light (+)

(9) To Connect to Reverse light (-)

(10) Transmitter Av in

(11) 12V Power Supply

(12) Yellow Camera AV

(13) Power for Camera

(14) Existing Brake light (+)

(15) Existing Brake light (-)

For the Power of the transmitter use the positive and negative from the reverse light. This ensures the camera is only turned on when the van is reversing

If the parking lines are turned off as default and you require them simply cut the brown loop which is exposed on the wiring loom

We also supply the 10m extension cable which is supplied with the camera. This can be used to wire the camera with the Wifi Transmitter.

Should you have issues with the brake light not working this can be because the polarity is the incorrect around meaning the positive and negative need to be switched
