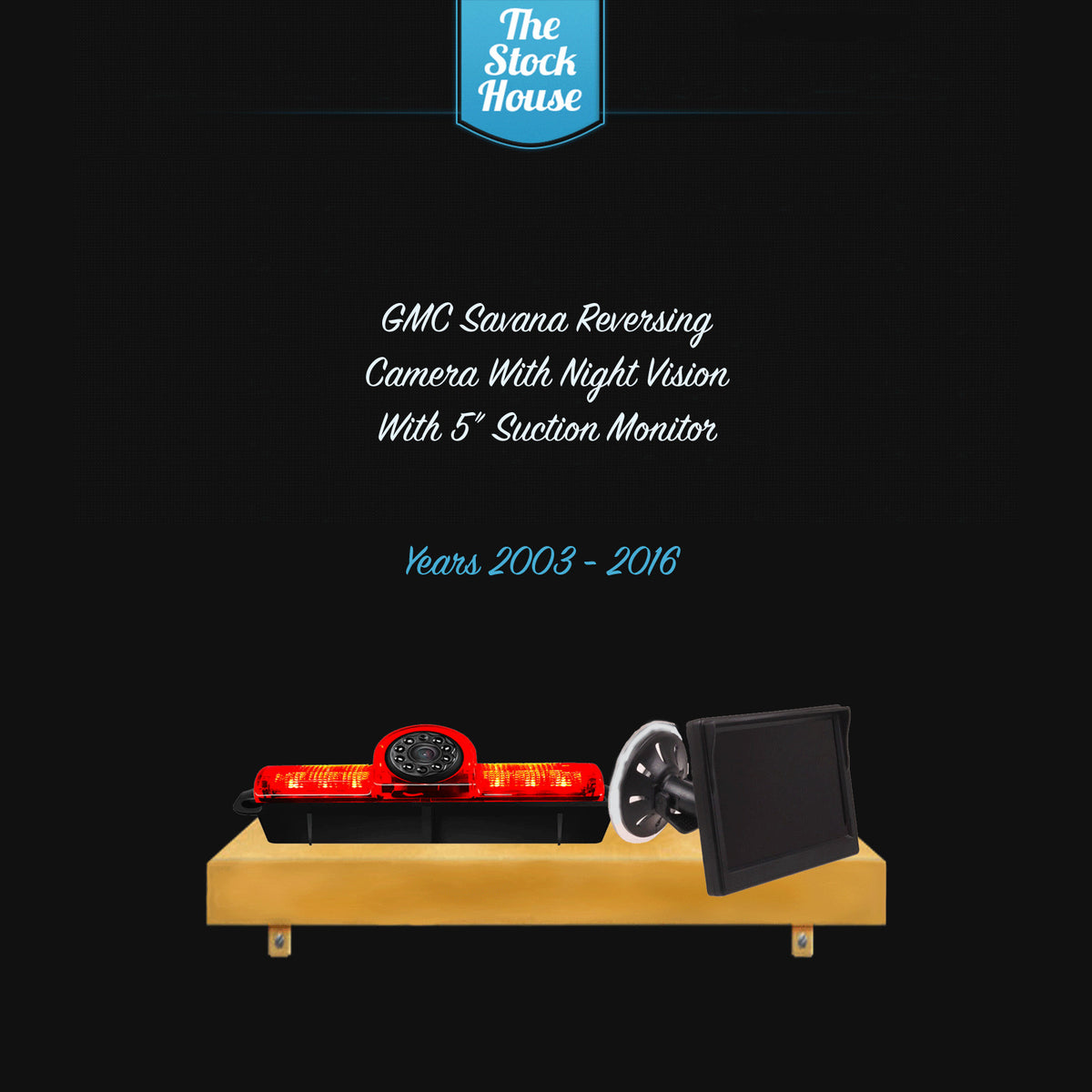

GMC Savana Brake Light Reversing Camera & 5" Suction Monitor 03-16 Back up

Camera Description

Please note this is an aftermarket part designed to fit GMC Savana vans from years 2003-2016.

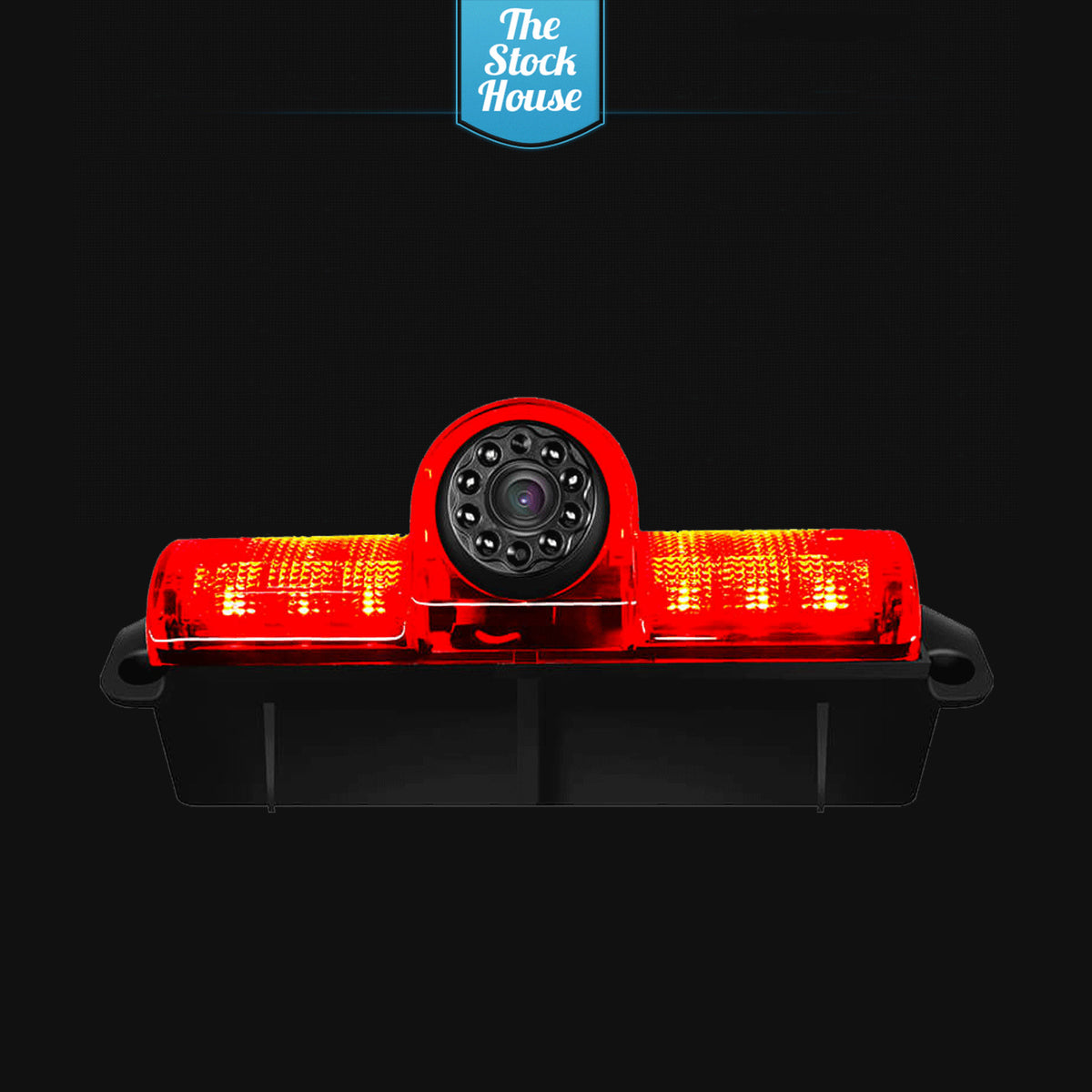

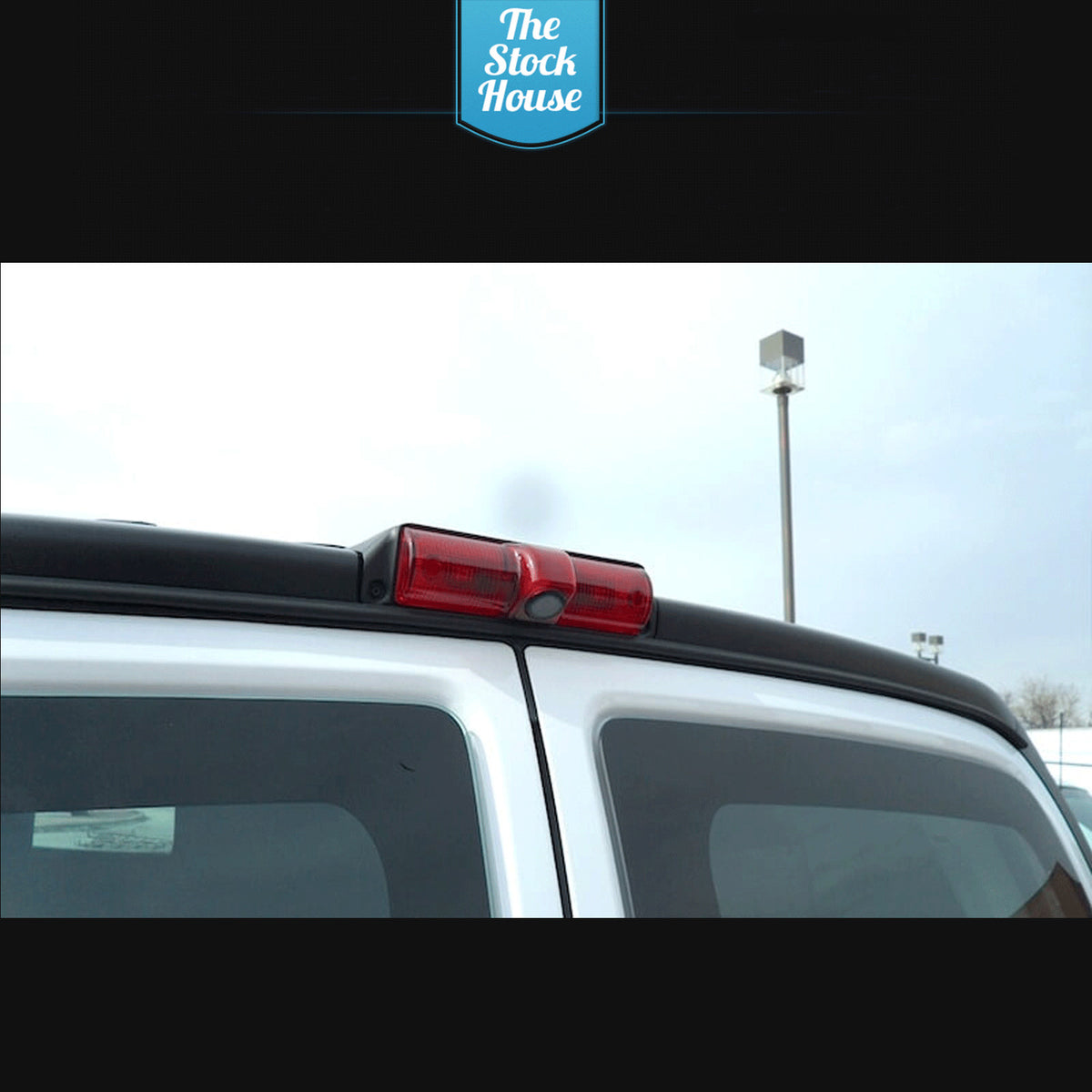

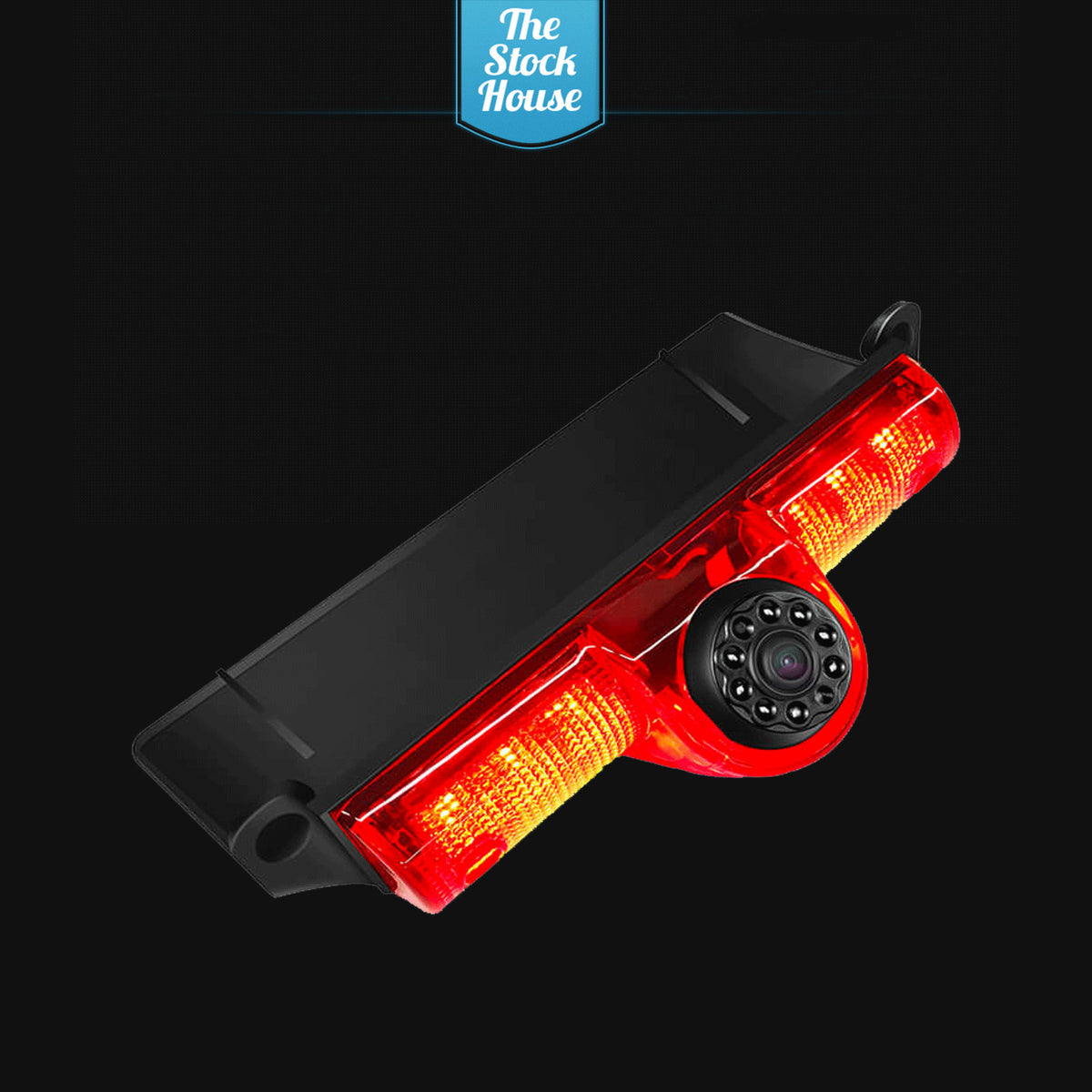

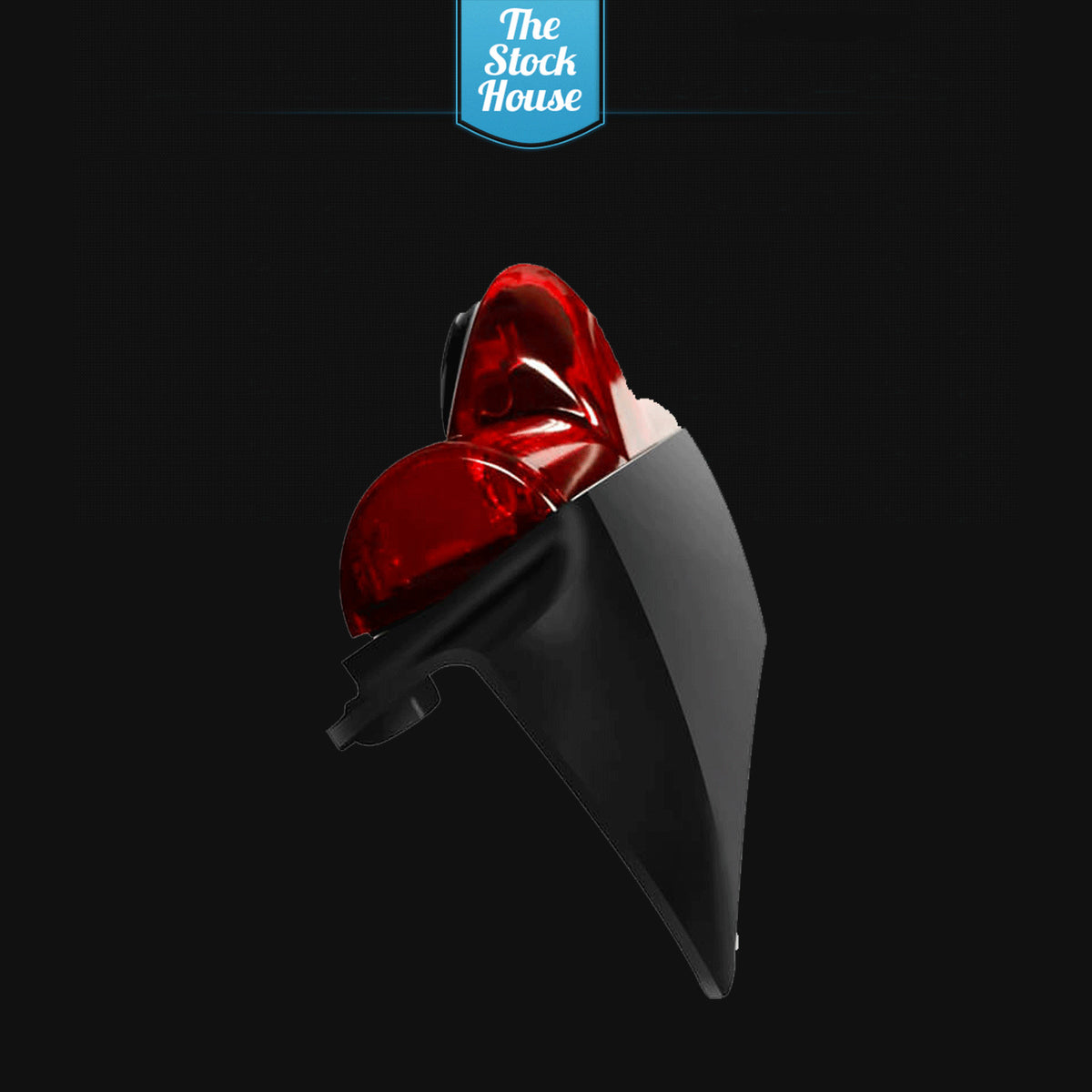

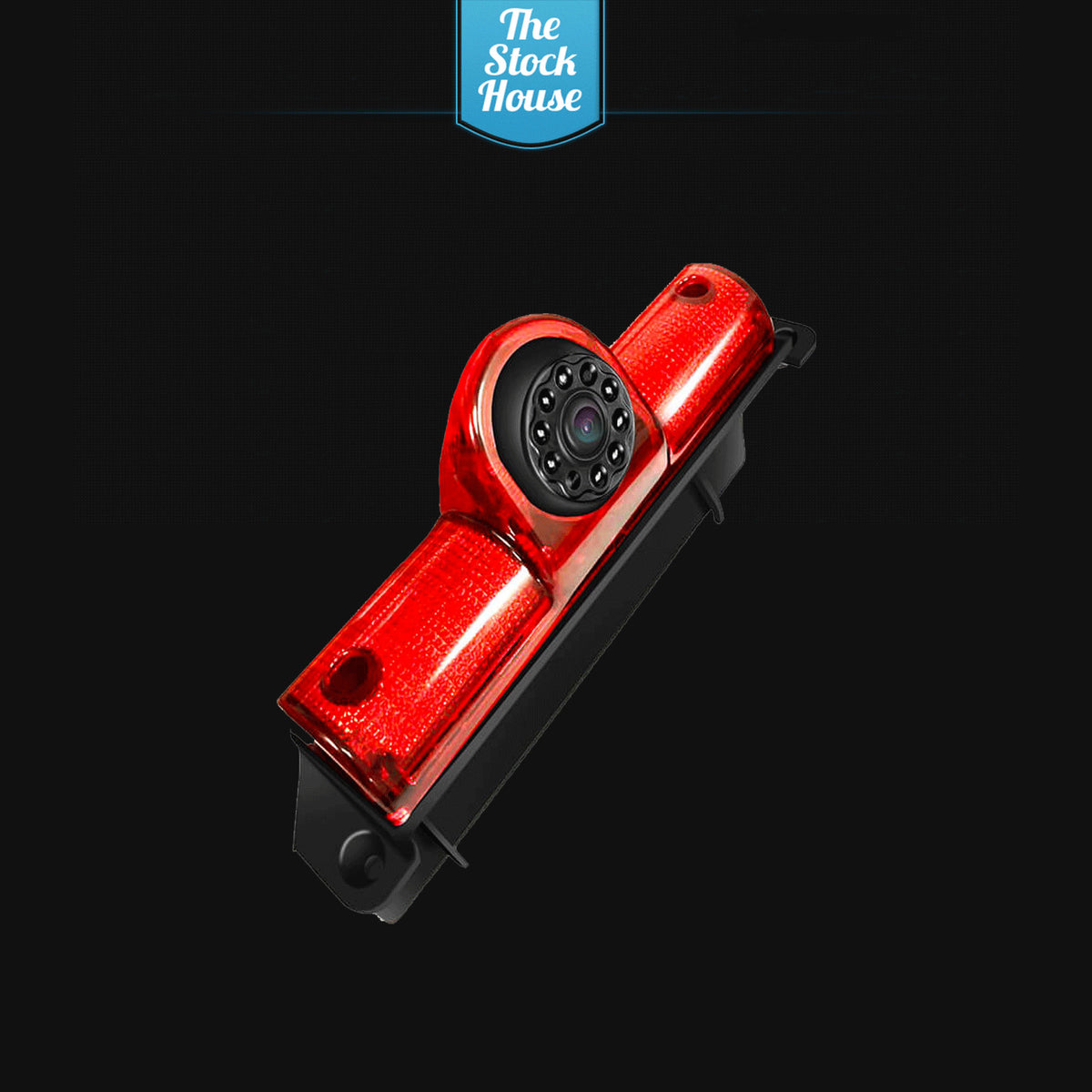

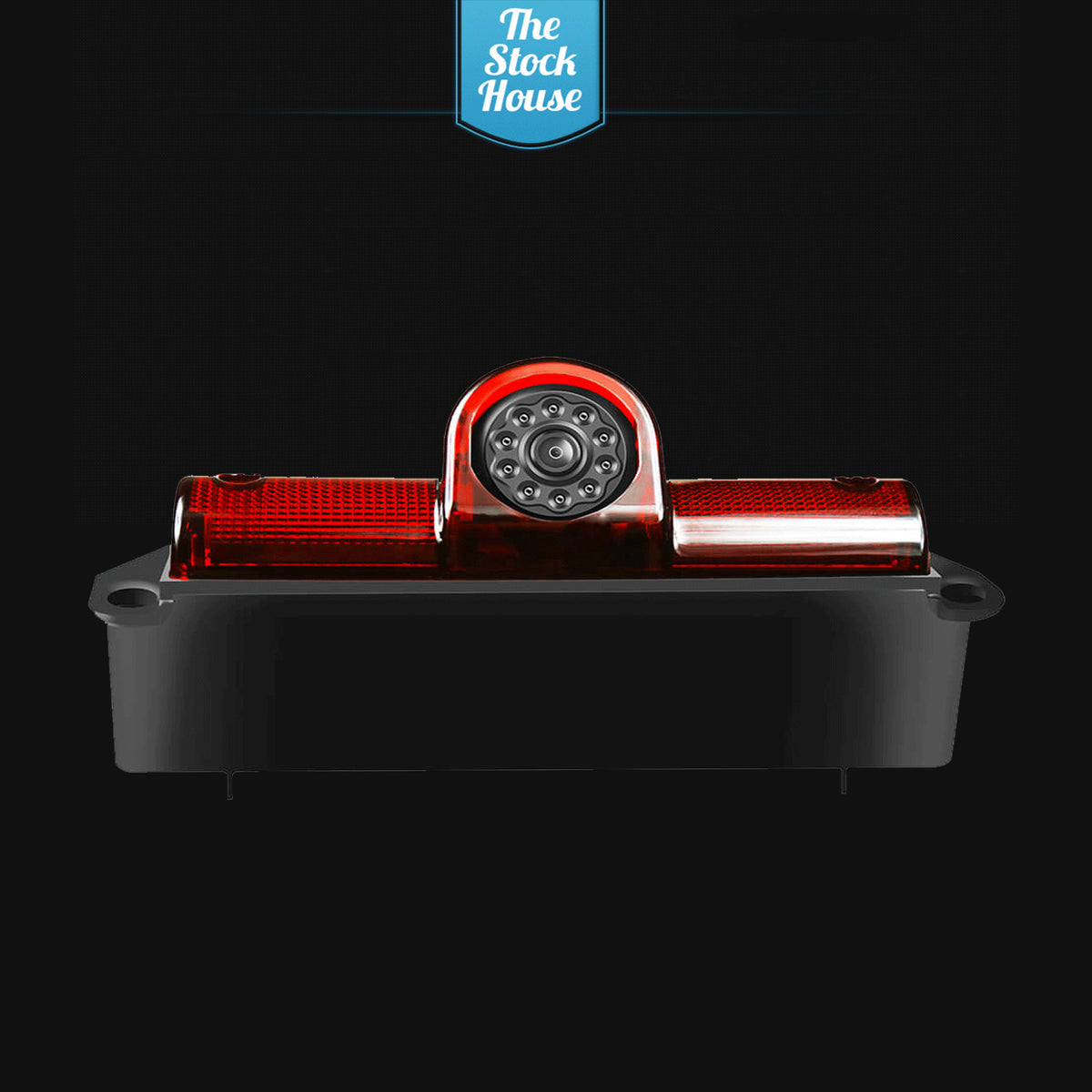

This camera is designed to replace the 3rd brake light situated on the rear of the vehicle.

Please note this kit comes with everything required to install this system

The old light is simply removed and replaced with this unit. A 10m cable then is run to your monitor at the front of the vehicle.

Please see the instructions below to see installations instructions.

Camera specifications

Cable Length - 10 Meters

• Min illumination:0Lux (LED ON)
• Image sensors: 1/3? colour HD CMOS
• System: NTSC
• Perfect IR night vision, 8 pcs IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

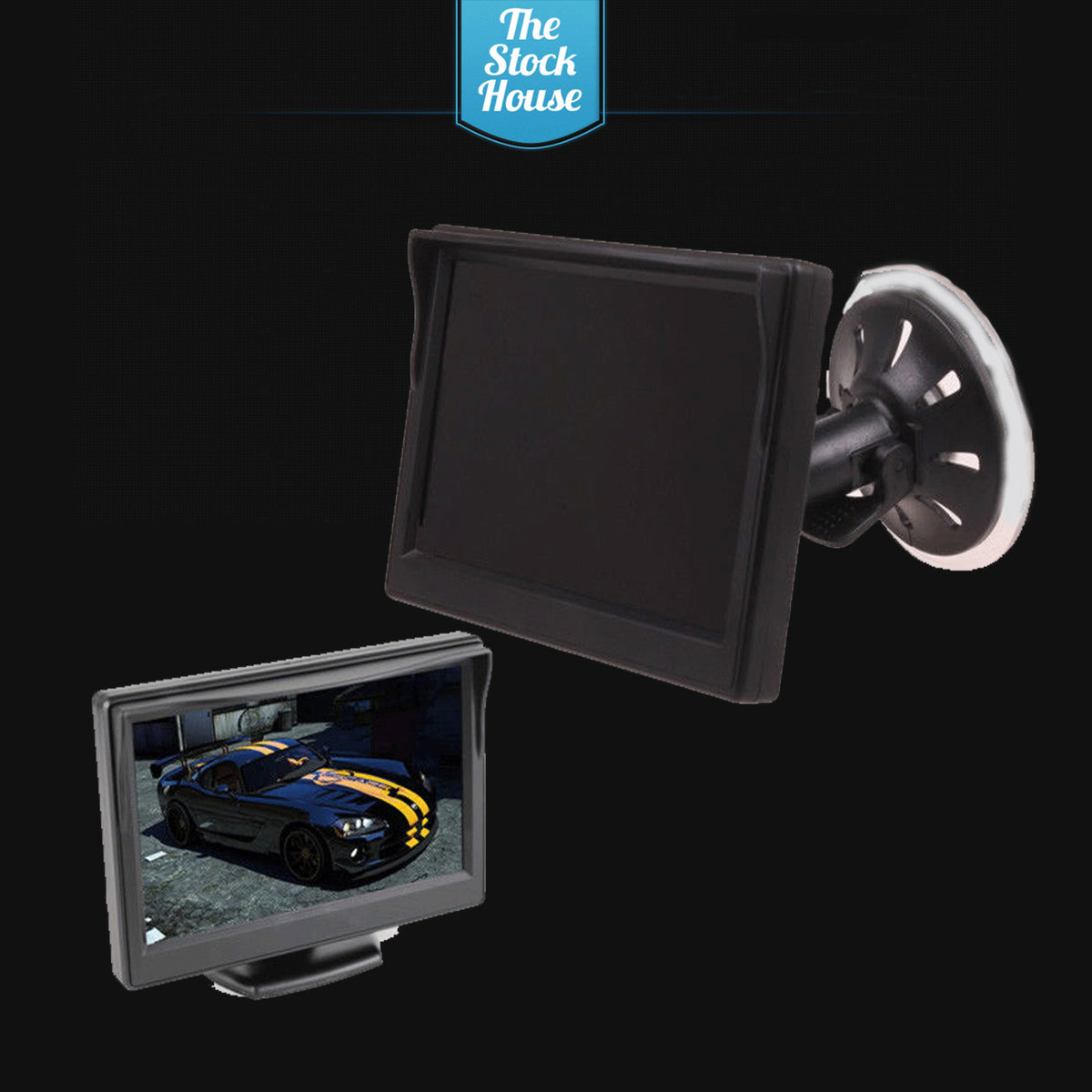

5" Suction Monitor Description

PAL/NTSC auto switch

• Colour: Black
• Display Size: 5"
• 480 x 272 resolution with 16:9 aspect ratio
• Automatically goes to sleep once there is no video being shown

Wakes up and turns on as soon as it receives a video signal.

Suction cup mounting bracket

• 2-channel video input:V1/ V2 auto switching(V1 display first )

Note: Please Connect the Rearview camera's video cable with LCD's yellow cable (Video V1)Then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)

Features

Simple to install

Full colour display

Installation tips:Two-way video inputs will display a black screen when no there is no signal

Please note image cannot be flipped so cannot be installed upside down

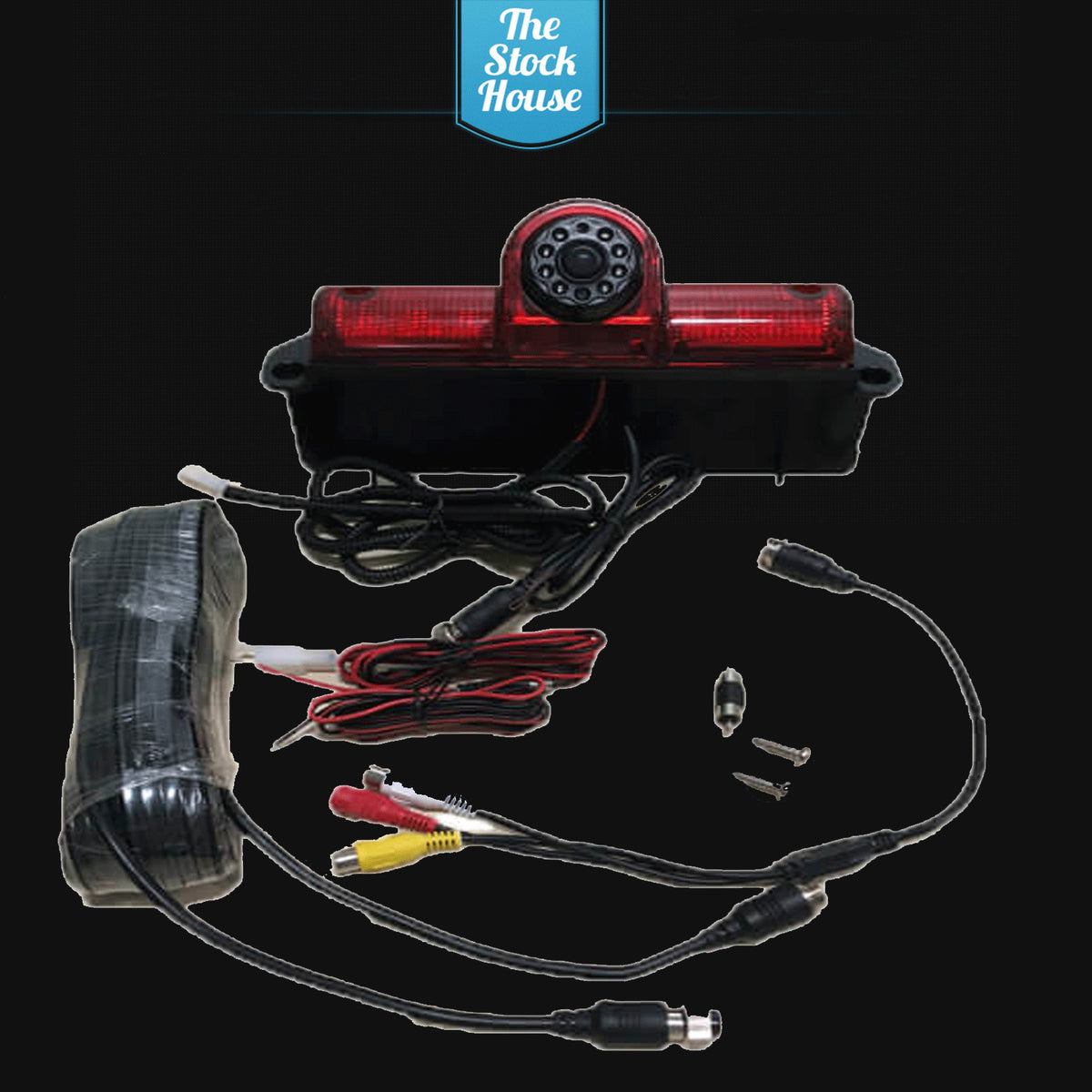

Package Includes

Brake light reversing camera

5 " Suction Monitor

10 meter 4 pin extension cable

Male to Male connection

4 Pin accessory Cable

12v Power adaptor for camera

12v Power adapter for Monitor

Installation Instructions

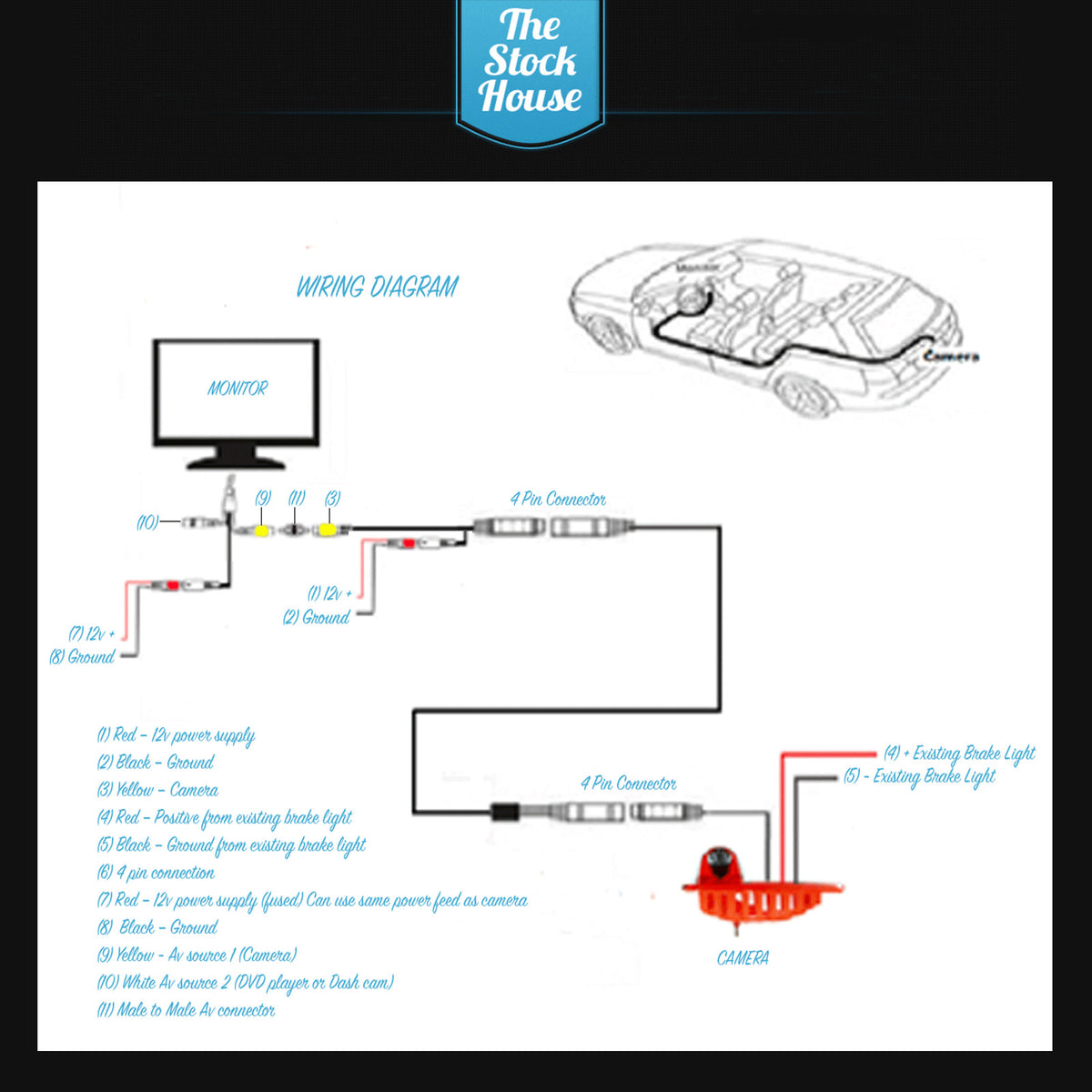

Please refer to the diagram for reference which can be found in the in images for this kit

We recommend before installing the product in place test everything to check that it works.

First thing to consider is which power source you are going to use to turn on the camera. This can be done in a few ways and is specific to each vehicle, but this can be done by:

- Using the wire signal coming from when reverse is engaged.

- Using the reverse gear signal wire on the loom for an aftermarket stereo

- Using a scotch lock and use the power source from the reversing light. This option will require running an additional cable to the front of the Vehicle.

This power source can be used for the camera (1) and the monitor (7) should you want them both to turn on only when reverse is engaged

Below is a description of each wire

Accessory Cable

(1) Red - 12v power supply

(2) Black - Ground

(3) Yellow - CameraCamera side wiring

(4) Red - Positive from existing brake light

(5) Black - Ground from existing brake light

(6) 4 pin connectionMonitor wires

(7) Red - 12v power supply (fused) Can use same power feed as camera(

• Black - Ground
• (9) Yellow - Av source 1 (Camera)
• (10) White - Av source 2 (DVD player or Dash cam)
• (11) Male to Male Av connector (Used to connect cables (3) & (9) together)

If the parking lines are turned off as default and you require them simply cut the brown loop which is exposed on the wiring loom

Ideally the 10m cable should be installed inside the van with the panels inside removed. For applications where this is not possible the cable can be run externally but be aware damage can be caused by debris off the road and heat from the exhaust.

Should you have issues with the brake light not working this can be because the polarity is the incorrect around meaning the positive and negative need to be switched
