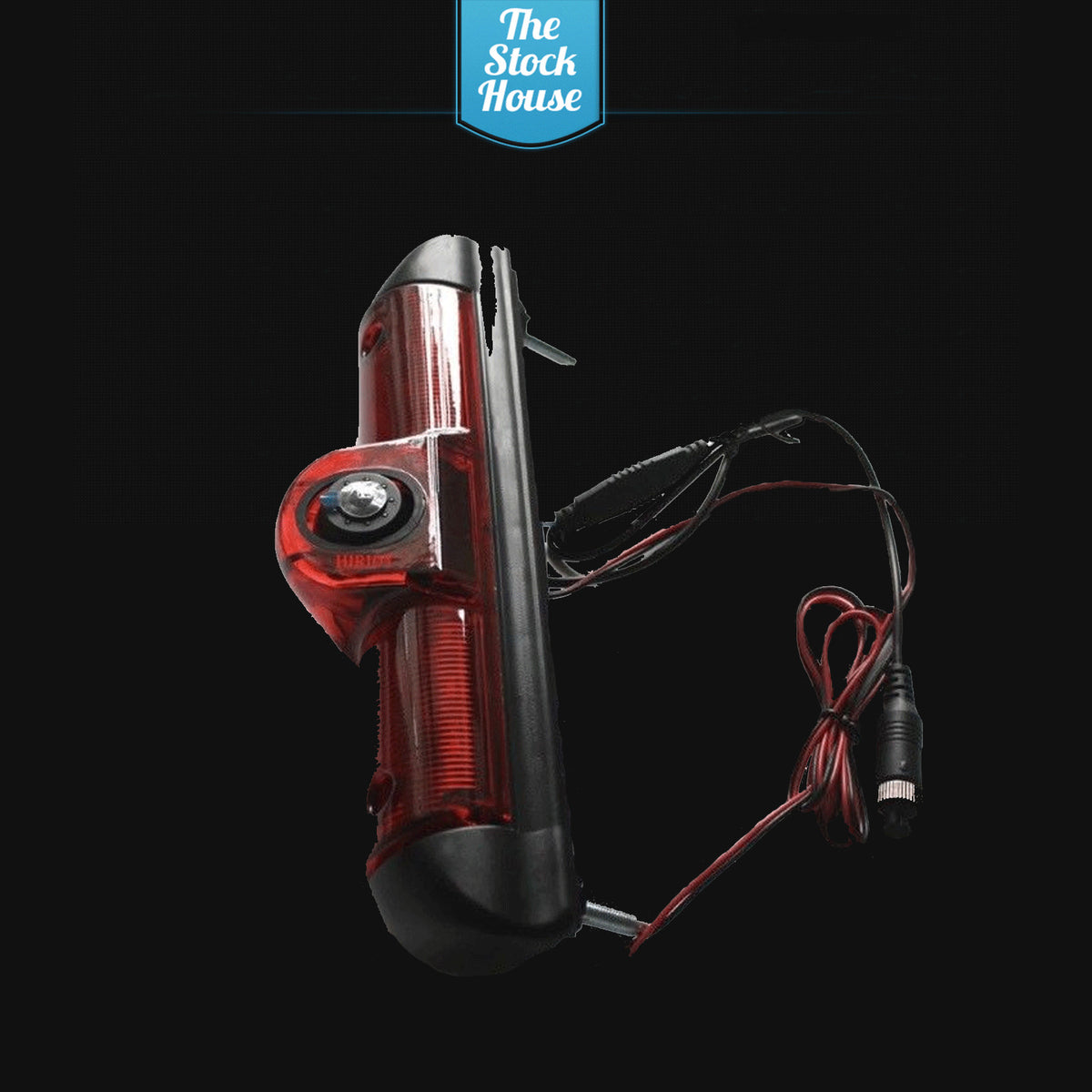

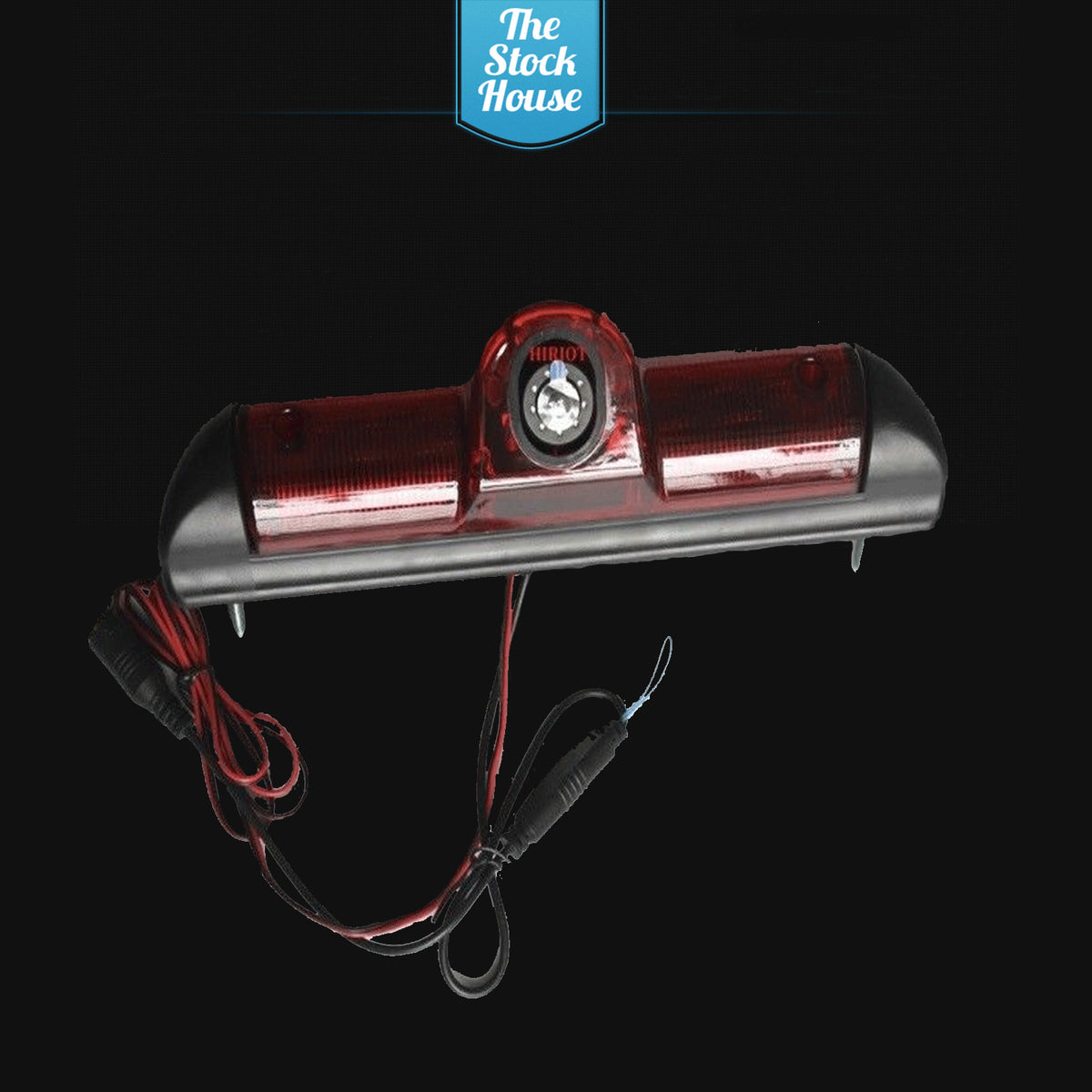

Peugeot Boxer 2006-2020 Reversing Brake Camera Night Vision & Parking Lines

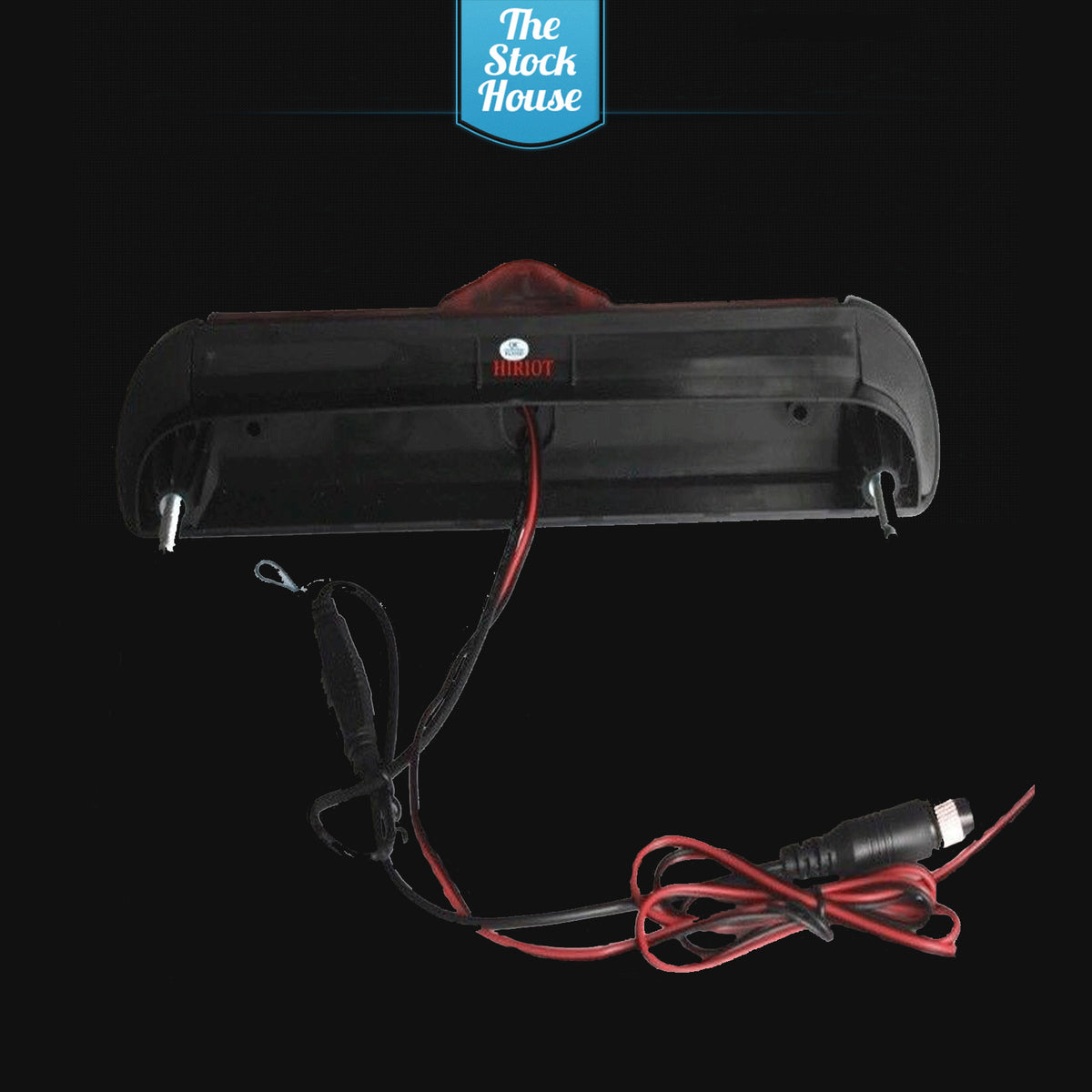

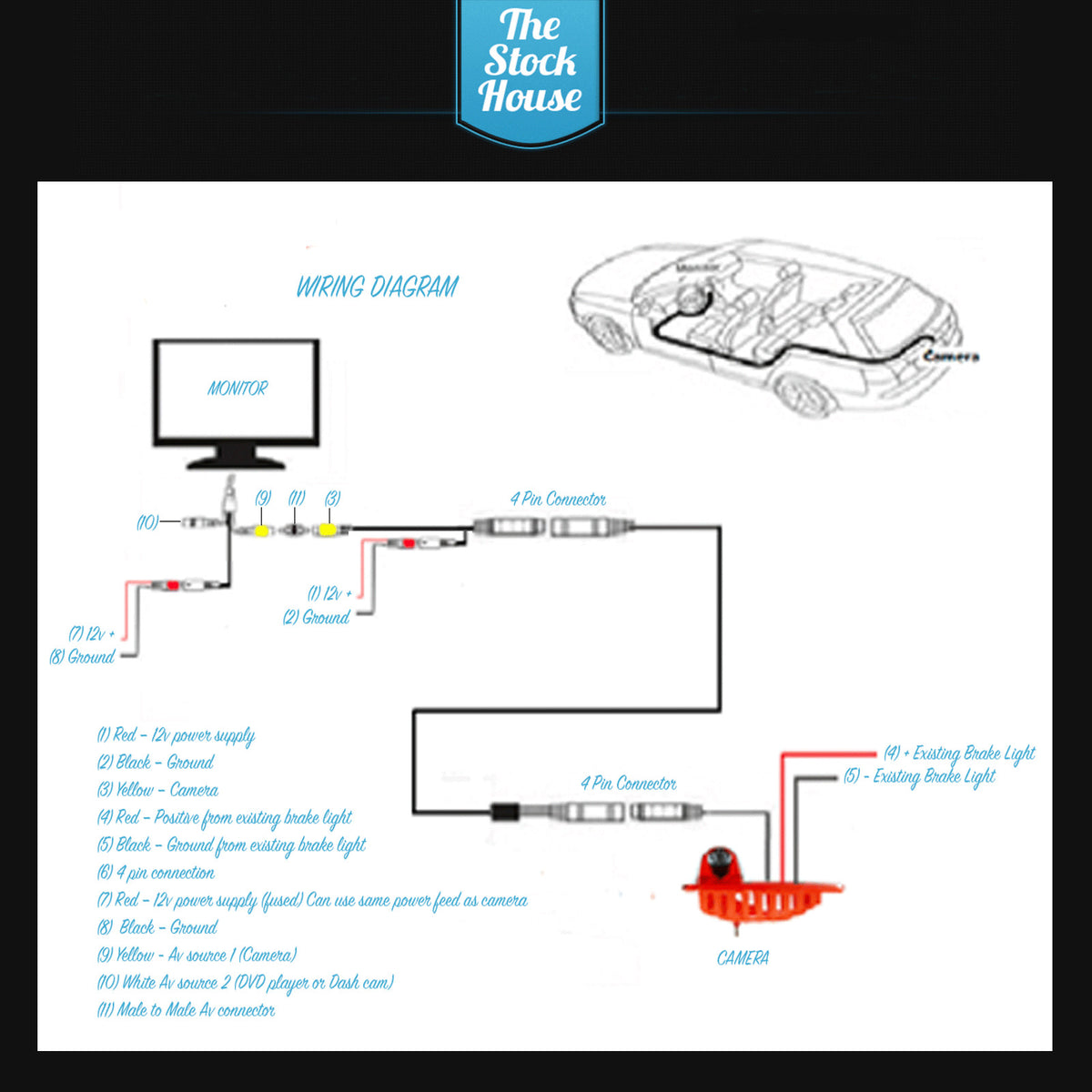

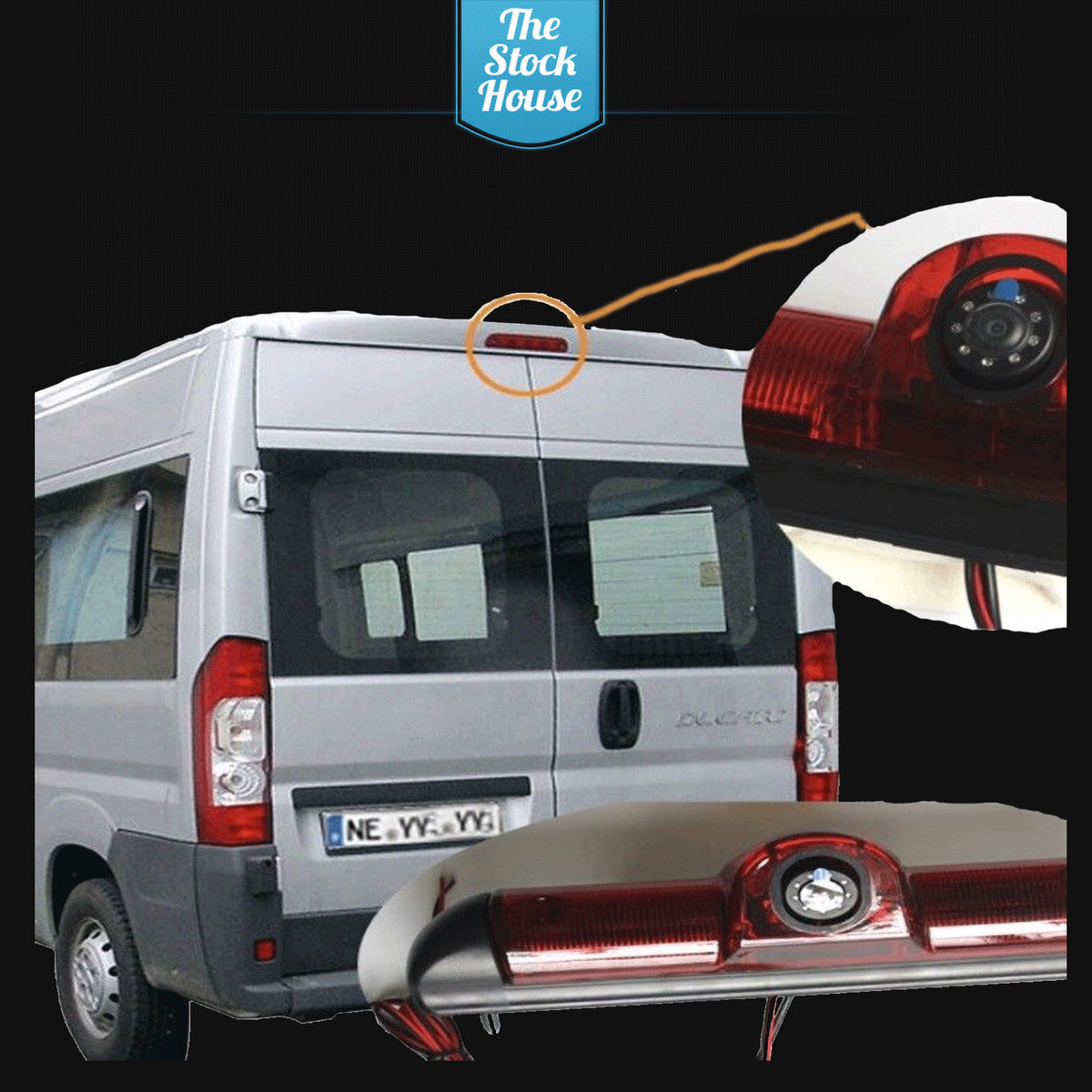

The old light is simply removed with the two screws from outside then 2 nuts from the inside to remove studs. The camera replaces it with led lights in the unit to retain the 3rd brake light by crimping together the positive and negative from the old light.

A 10m cable then is run to either your head unit or screen

Please note that access to the back of the camera from inside the van is required install this item

Can be used with any stereo which can support a reversing camera

• Technique Parameter:
• Image sensors: 1/3" color HD CCD
• TV System: NTSC default & PAL request
• Minimum illumination: 0.1Lux
• White Balance: Auto
• Video Color: Colorful
• Waterproof Class: ip66
• Effective Pixels: 728(H)*582(V)(NTSC)
• Resolution: 600 TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: —20°C~+80°C RH95%
• Storage Temperature: —40°C~+100°C RH95%
• Working Power (DCV): 12V
• Current consumption: 90mA Max
• Power: DC 12V
• Video cable is RCA connector

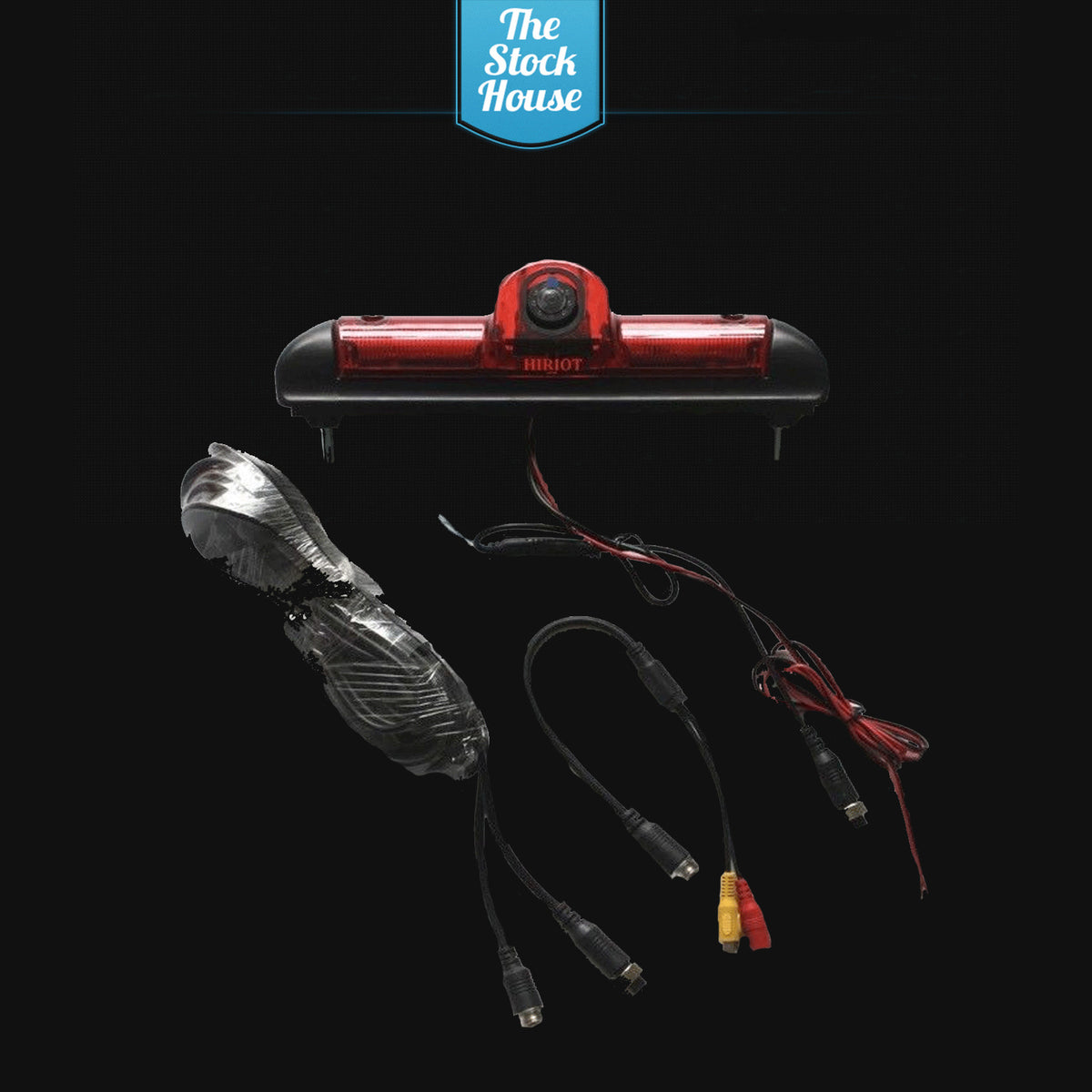

• Package contents:
• --Special Brake Light Rear view Camera
• --Power DC cable
• --Extension cable (about 10 meters)
• --Adapter
