To Fit Nv400 Wifi Reversing Camera Brake Light & Rear Mirror Monitor 2010 On

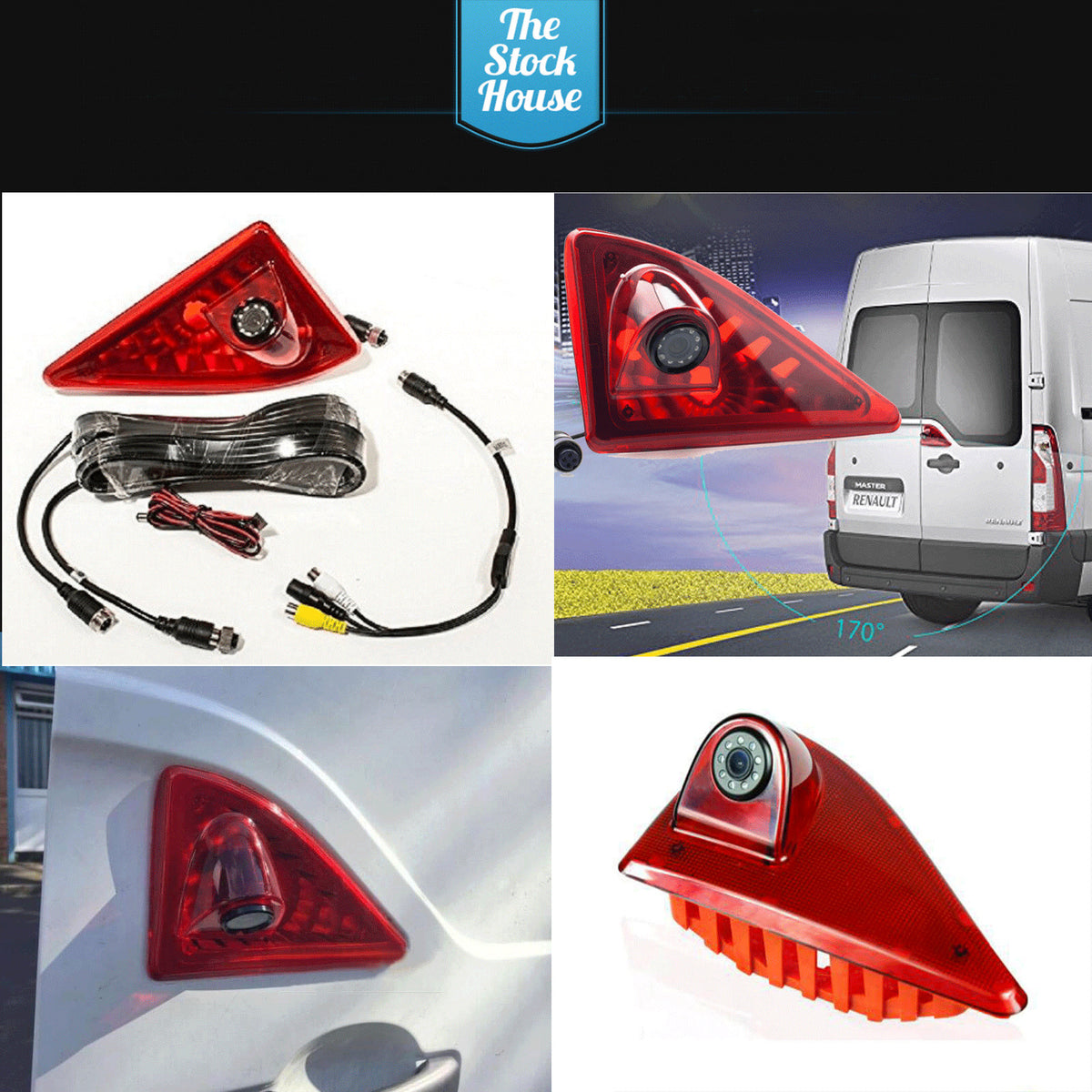

Camera Description

Please note this is an aftermarket part designed to fit Nissan NV400 which is not supplied by Nissan

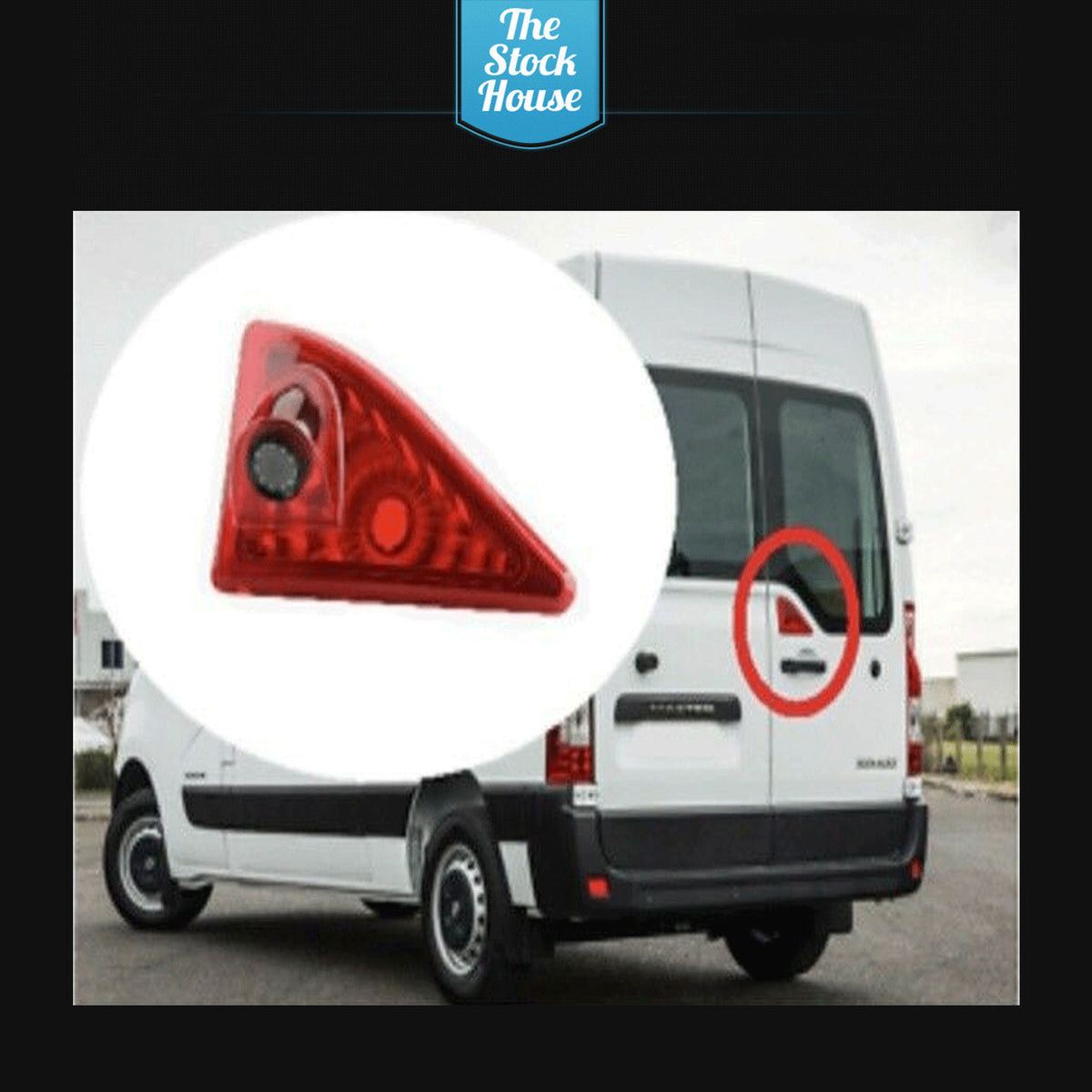

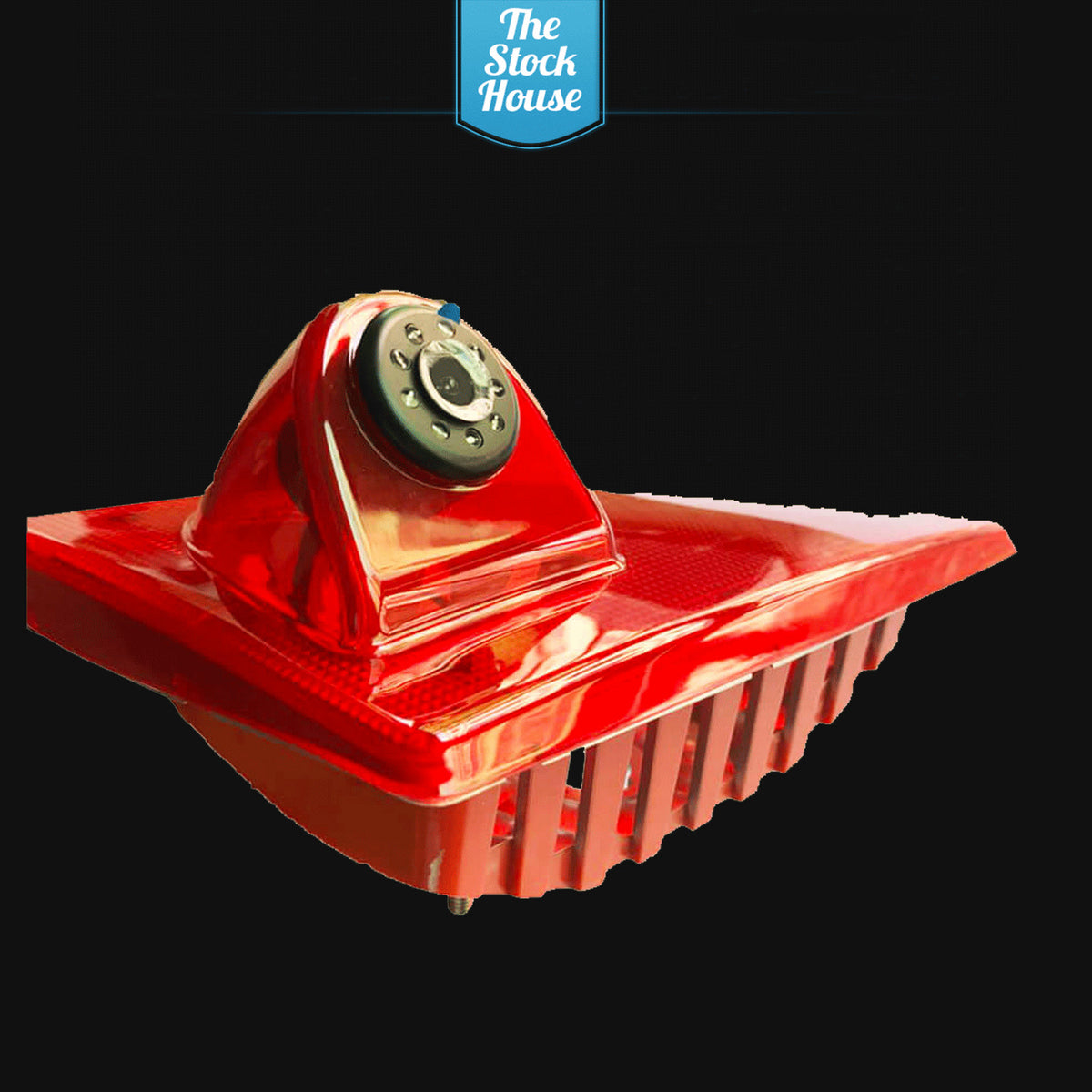

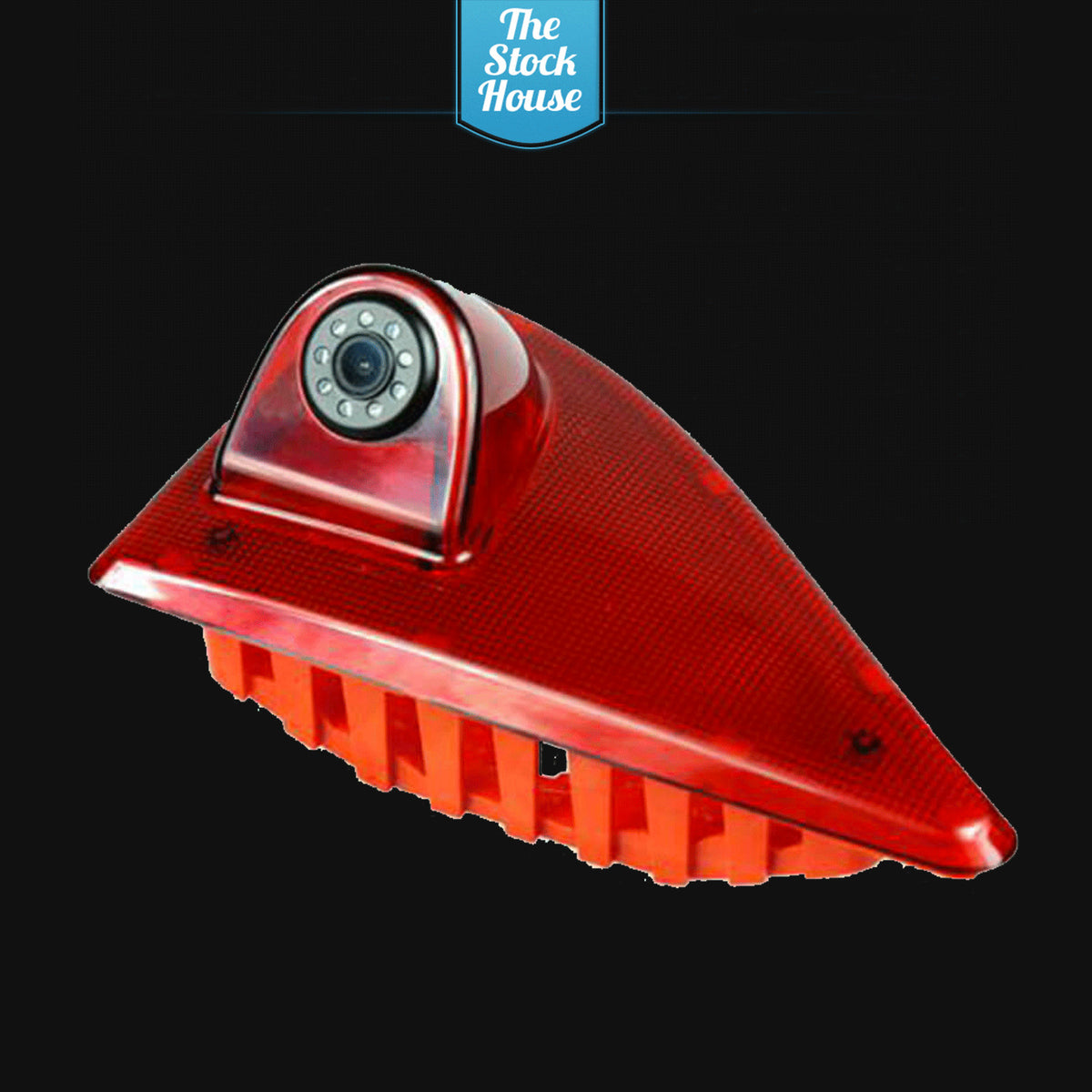

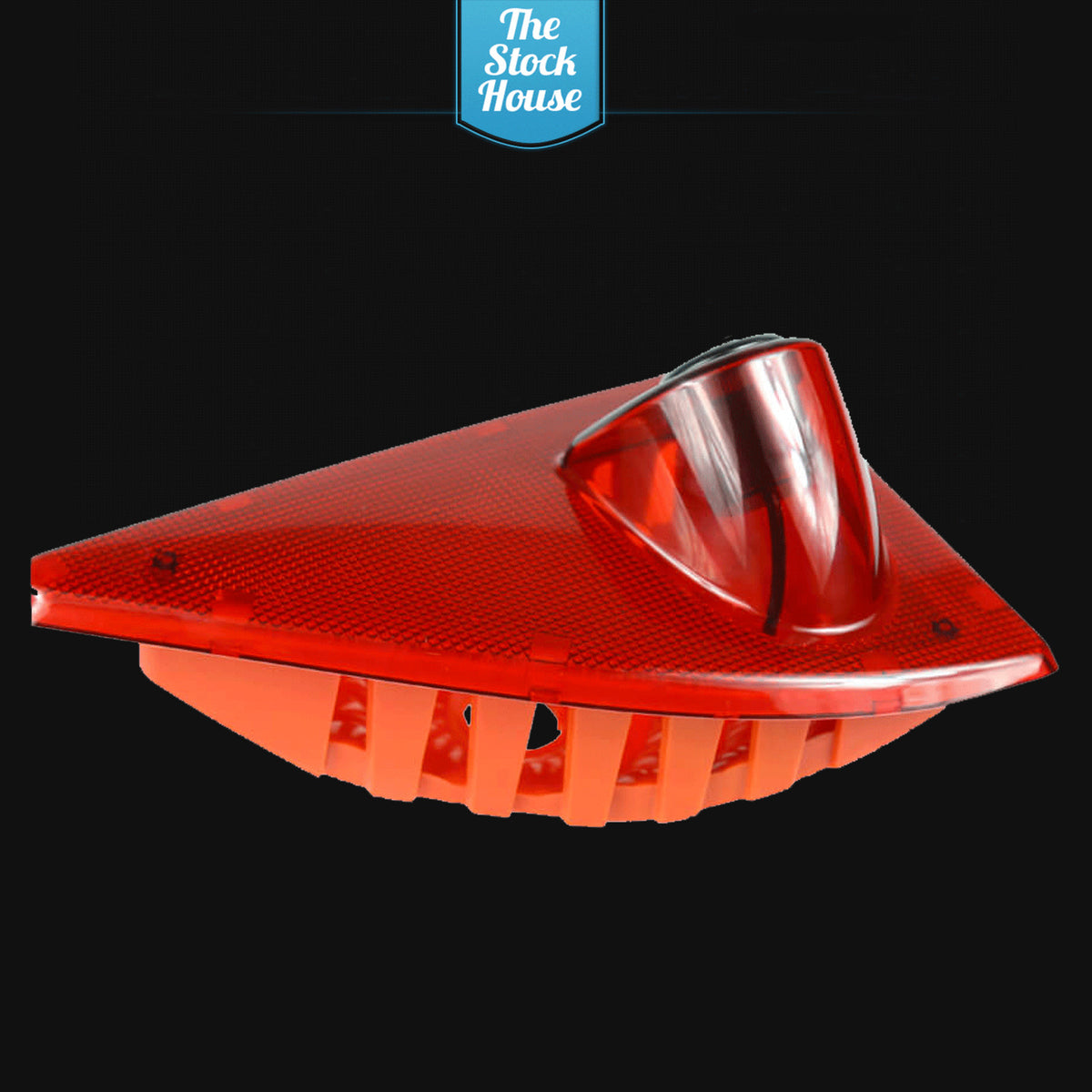

This camera is designed to replace the 3rd brake light situated on the rear of the vehicle.

Please note this kit comes with everything required to install this system

The old light is simply removed and replaced with this unit. A 10m cable then is run to your monitor at the front of the vehicle.

Please see the instructions below to see installations instructions.

Camera specifications

Cable Length - 10 Meters

System - NTSC

• Lend:1.9
• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ color HD CMOS/CCD
• Perfect IR night vision, 8 pcs IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

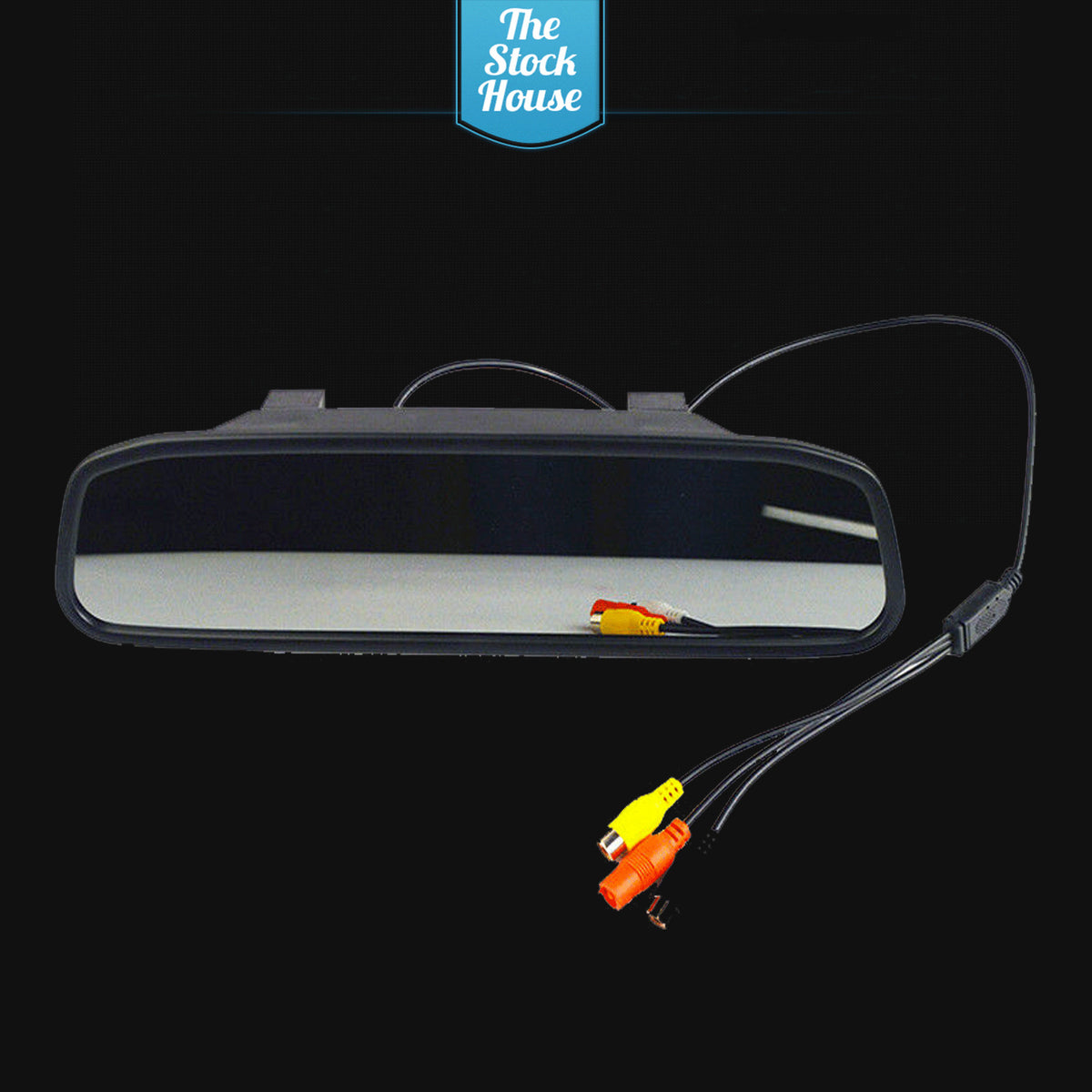

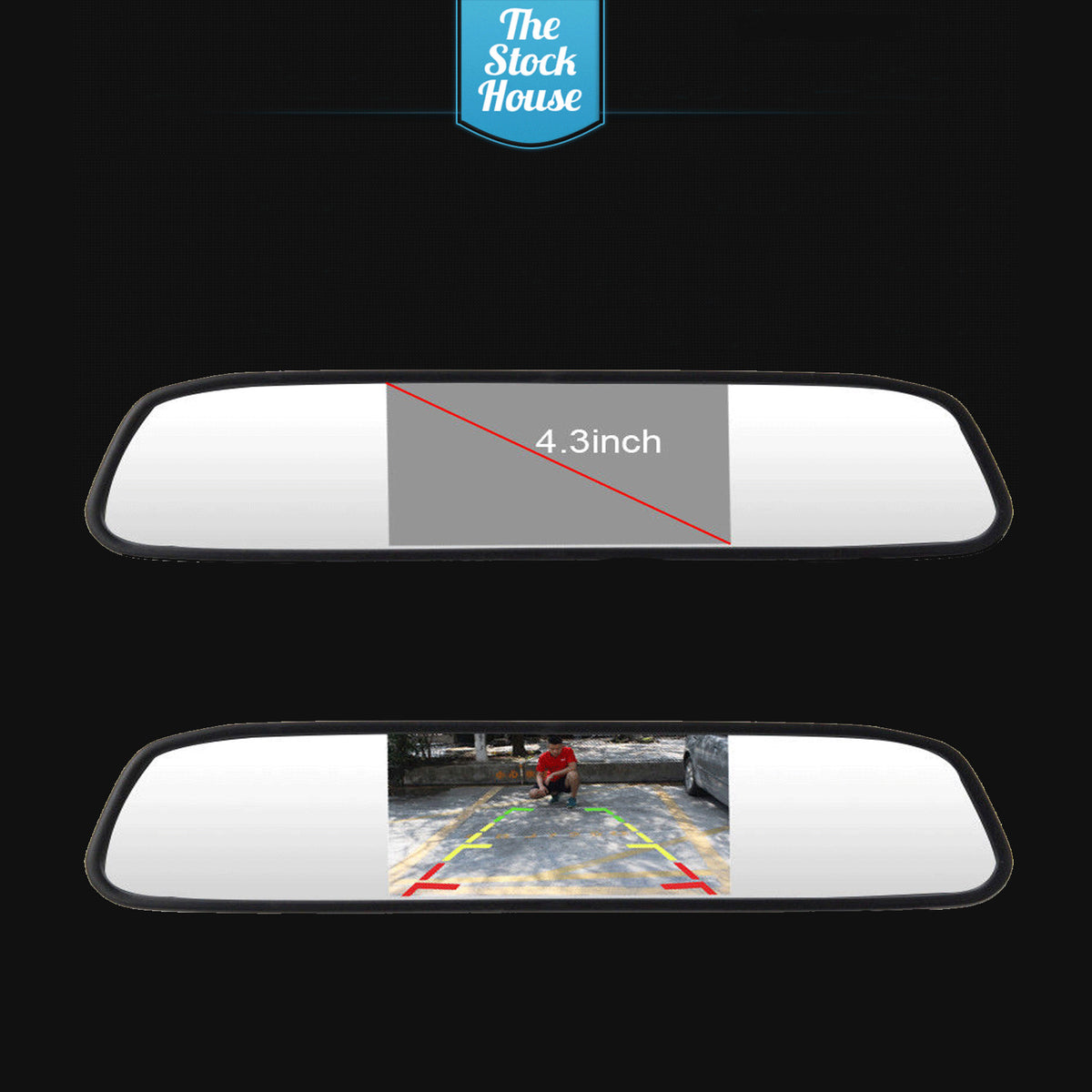

4.3" Mirror Monitor Description

High-resolution picture.

Full colour LED backlight display.

With 2 video input: White video cable connects to car rearview camera, yellow one to other video equipment.

Parking rearview priority: The monitor will start up automatically display the video from rearview camera when you are reversing and then close itself afterwards

Supports Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

Screen rotatable.

With menu buttons, Brightness/contrast/hue/saturation/language (Chinese/English/Spanish) adjustable.

Easy to install.

Low power consumption.

No Audio input or output

• Chip: 4140+673

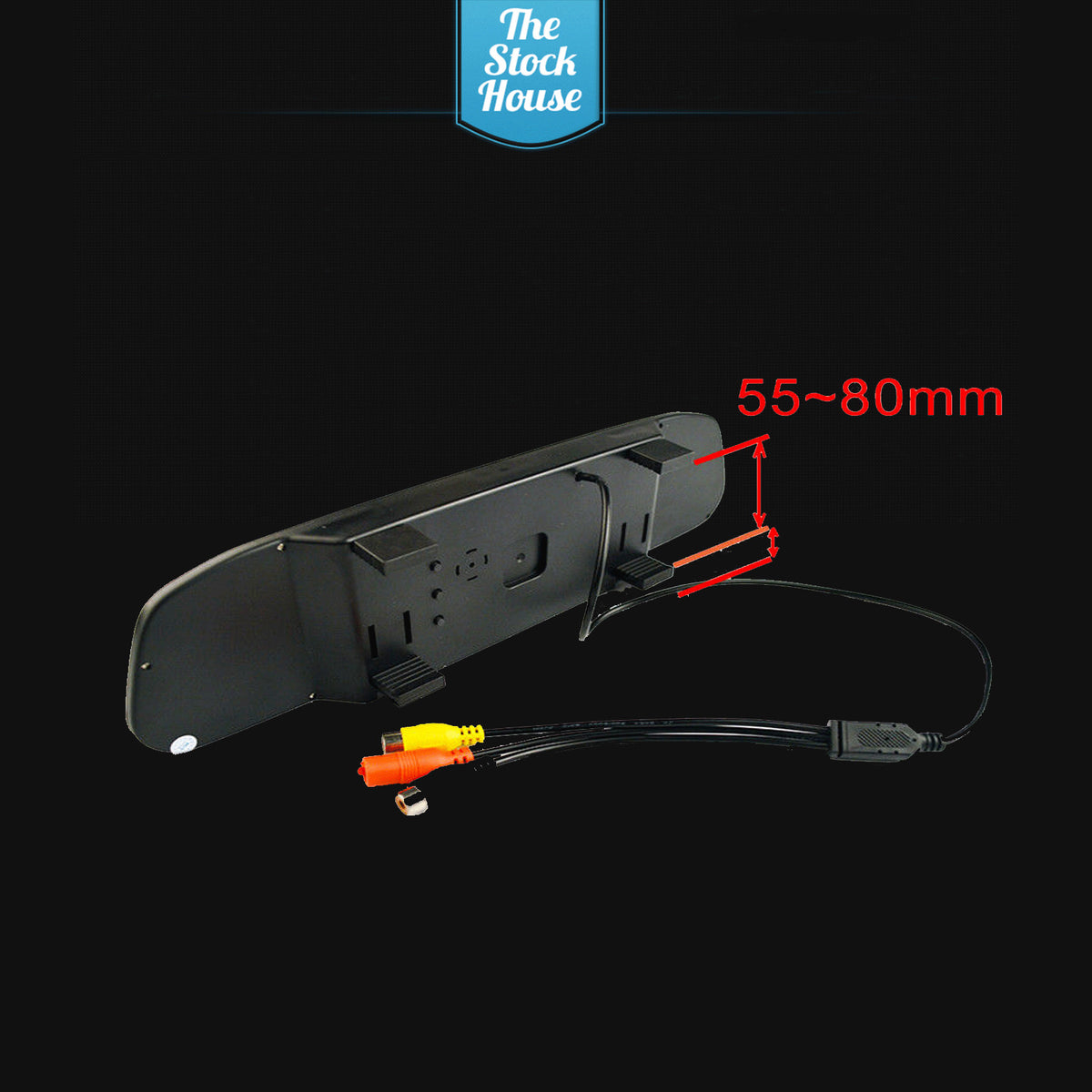

• Please note: This monitor is used to clip over an existing mirror

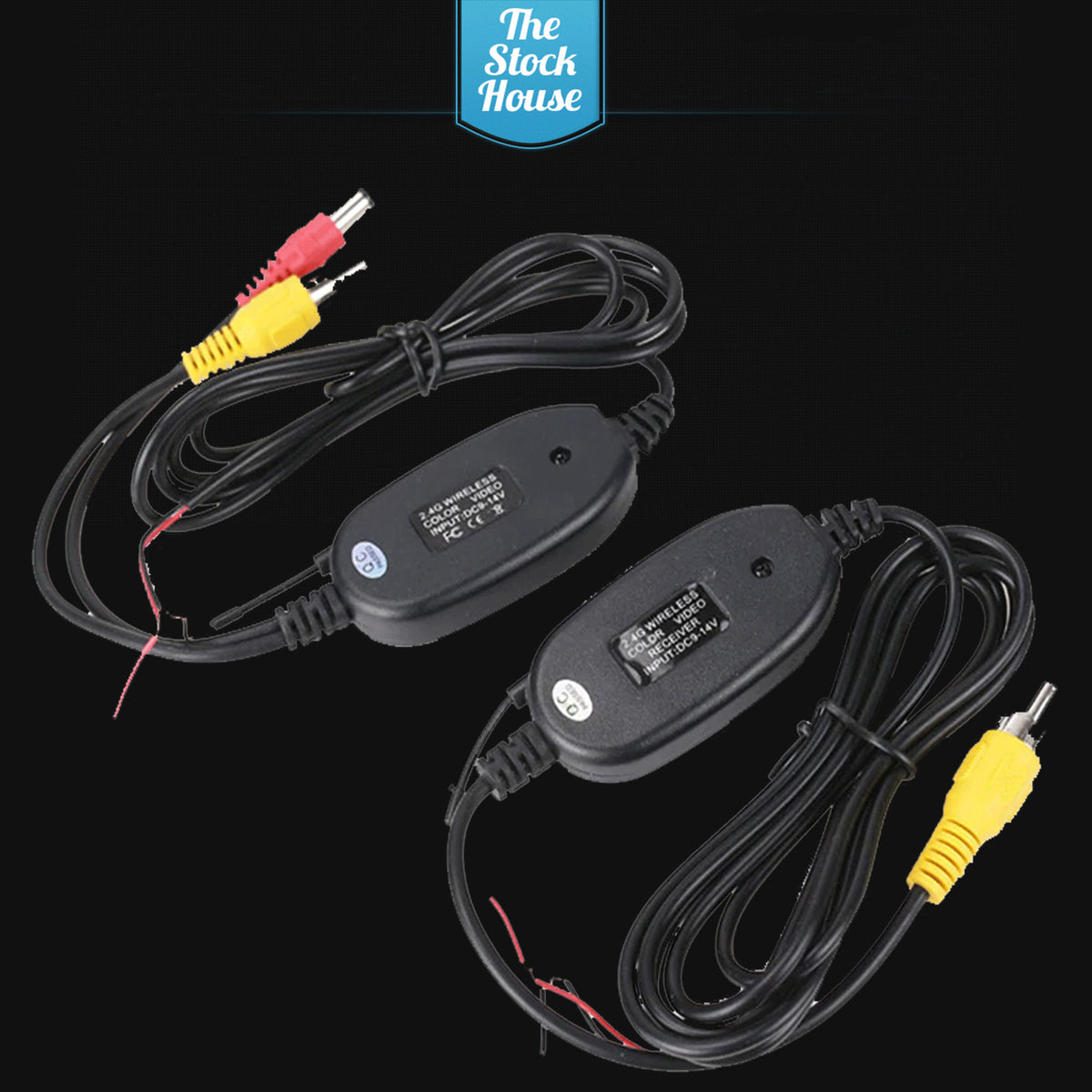

Wifi Transmitter Description

Wireless 2.4GHz transmitter /receiver set (12Volt for vehicle installation)

• Work Range:Up to about 80m(Hollowness)
• Connects to rear-view camera and front video screen
• Power: DC 12V
• Transmitter/Receiver Cable Length:1.5m

Convert any reversing camera with a standard phono/RCA connector into a wireless camera with this universal transmitter and receiver kit.

Eliminates the need to run a cable the length of the vehicle, just connect the transmitter at the camera end and the receiver at the monitor end.

The transmitter also includes a handy pass through for the power so you can connect it inline with your camera.

Wireless transmitter with male phono plug and male 2.5mm power plug for supplying power to the camera.

Wireless receiver with male phono plug for connection to monitor.

Package Includes

Brake light reversing camera

• 3" Mirror Monitor
• 10 meter 4 pin extension cable
• Male to Male connection
• 4 Pin accessory Cable
• 12v Power adaptor for camera
• 12v Power adapter for Monitor
• 1 x 2.4Ghz Transmitter
• 1 x 2.4Ghz Receiver

Installation Instructions

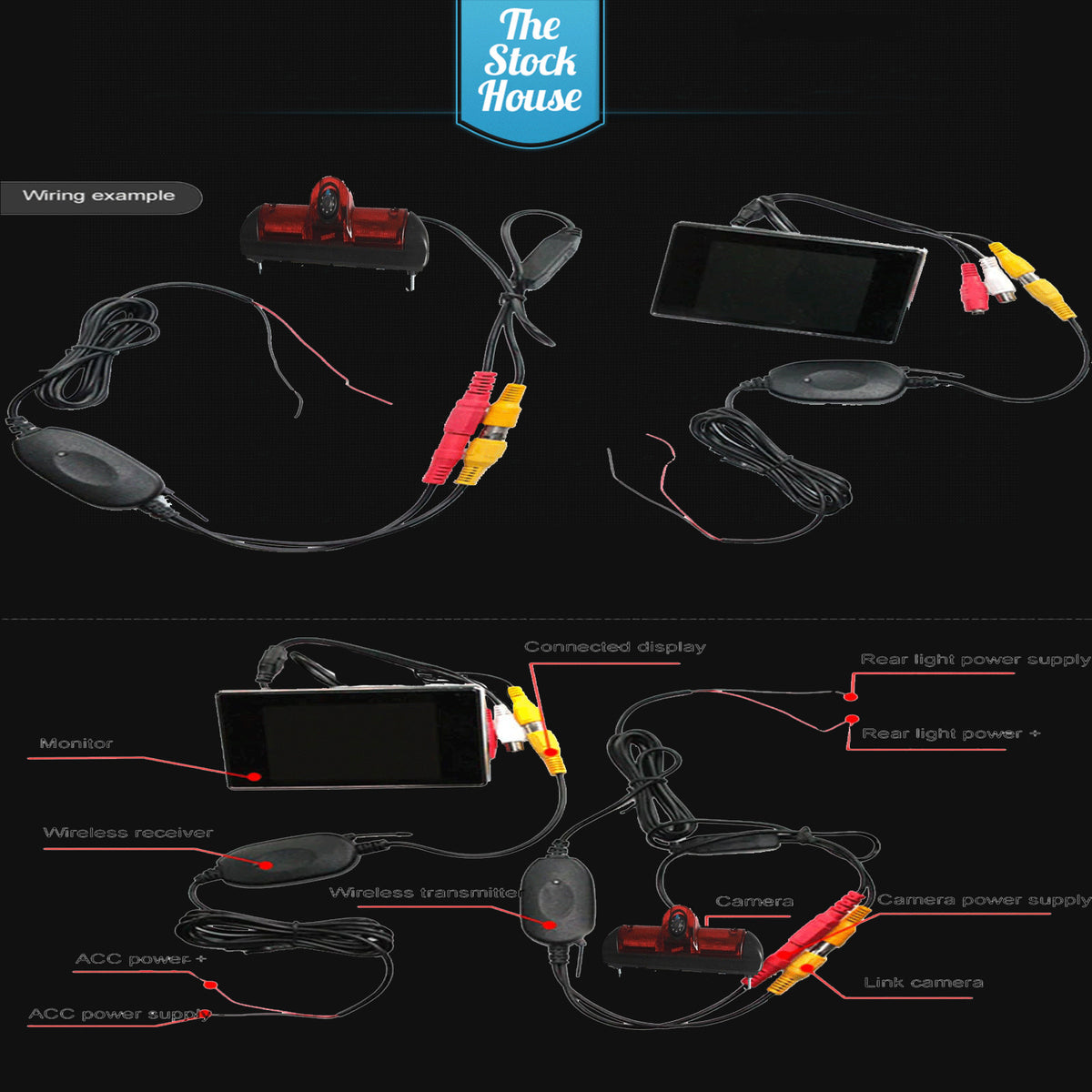

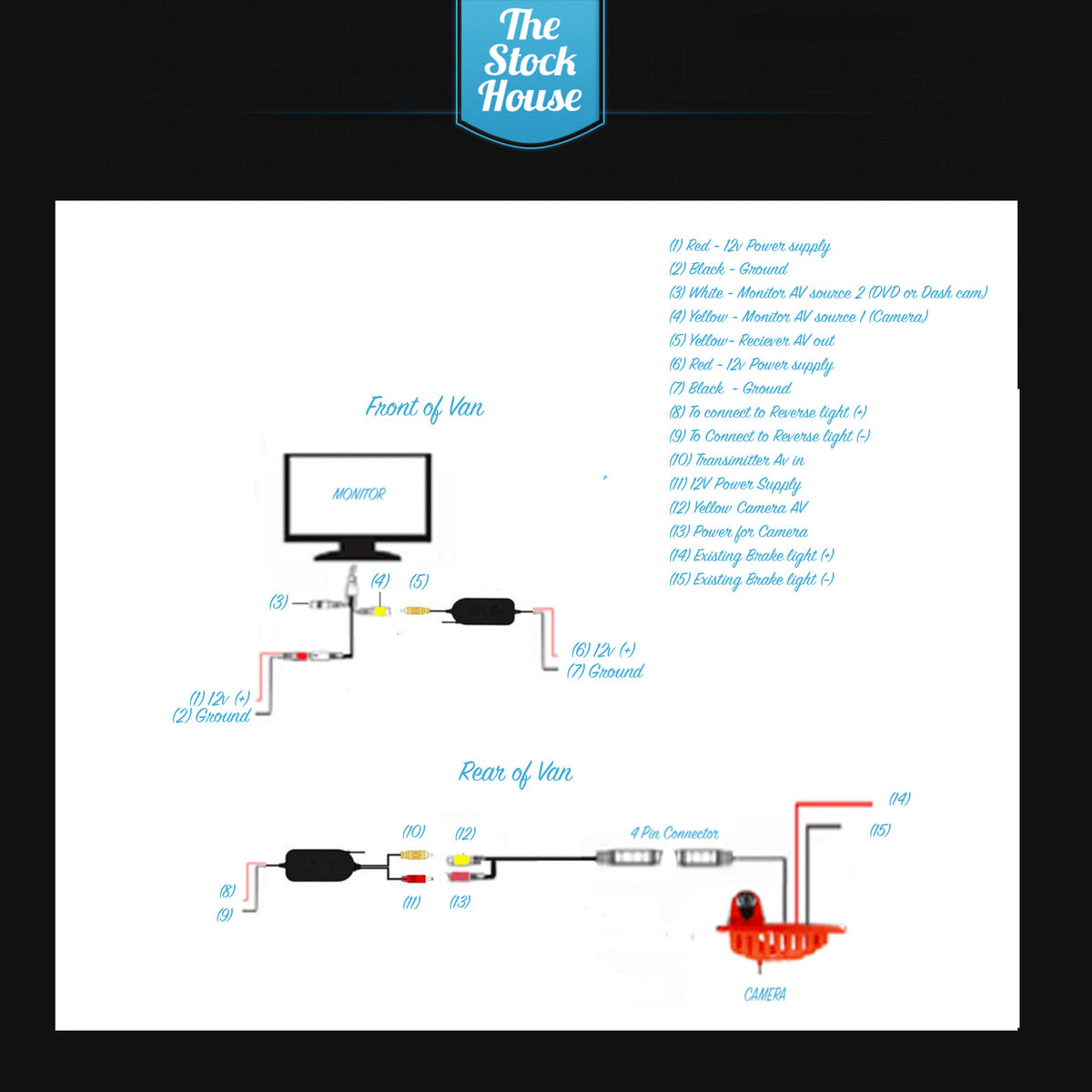

Please refer to the diagram for reference which can be found in the in images for this kit

We recommend before installing the product in place test everything to check that it works.

First thing to consider is which power source you are going to use for the Monitor and Reciever. This should be fused.

Below is a description of each wire

(1) Red - 12v Power supply

(2) Black - Ground

(3) White - Monitor AV source 2 (DVD or Dash cam)

(4) Yellow - Monitor AV source 1 (Camera)

(5) Yellow- Reciever AV out

(6) Red - 12v Power supply

(7) Black - Ground

(8) To connect to Reverse light (+)

(9) To Connect to Reverse light (-)

(10) Transimitter Av in

(11) 12V Power Supply

(12) Yellow Camera AV

(13) Power for Camera

(14) Existing Brake light (+)

(15) Existing Brake light (-)

For the Power of the transmitter use the positive and negative from the reverse light. This ensures the camera is only turned on when the van is reversing

If the parking lines are turned off as default and you require them simply cut the brown loop which is exposed on the wiring loom

We also supply the 10m extension cable which is supplied with the camera. This can be used to wire the camera with the Wifi Transmitter.

Should you have issues with the brake light not working this can be because the polarity is the incorrect around meaning the positive and negative need to be switched
