Universal Flat Surface Reversing Camera & 4.3" Monitor 3rd Brake light Reverse

Item description

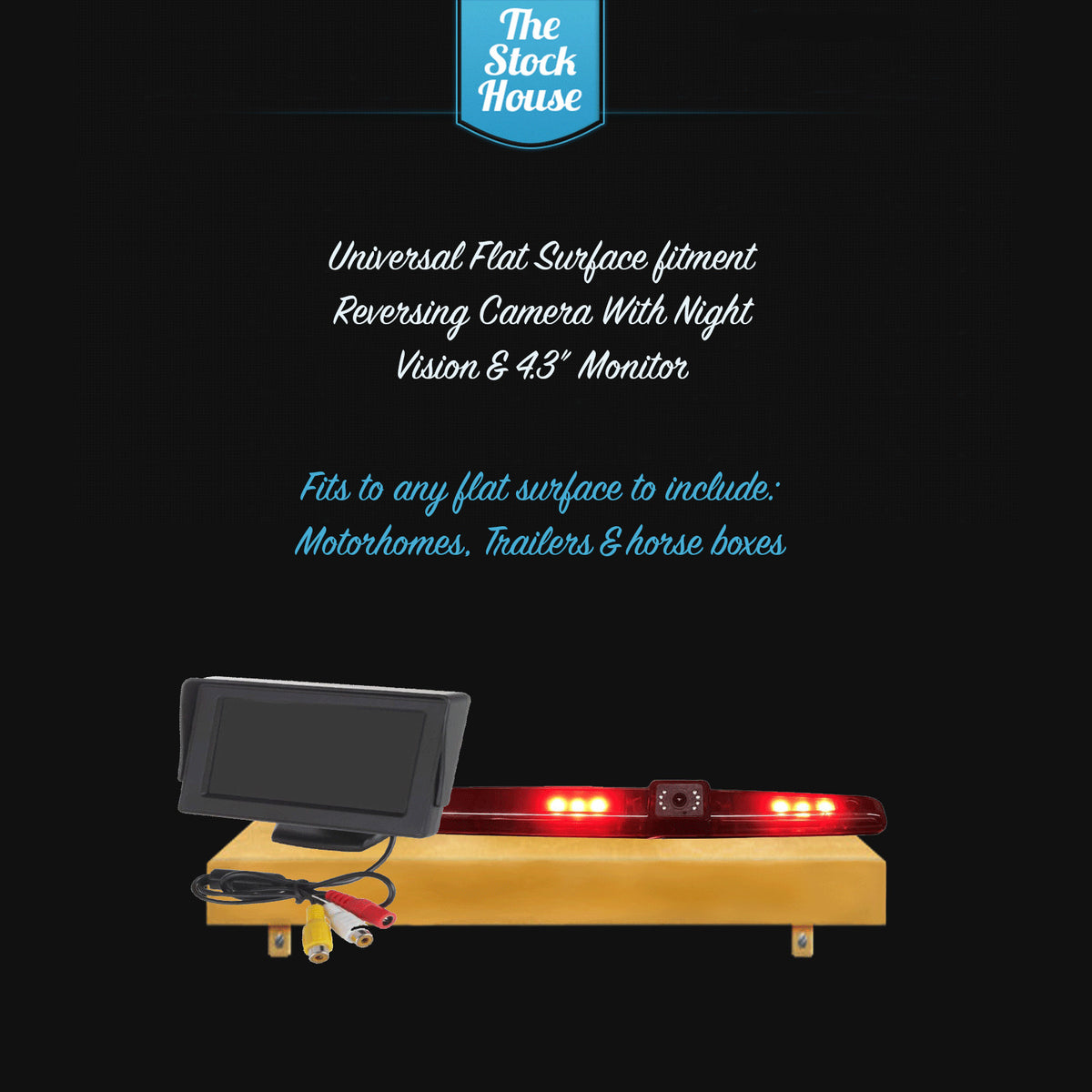

Applicability – backup camera and 4.3" monitor for any flat surface at the back of a vehicle

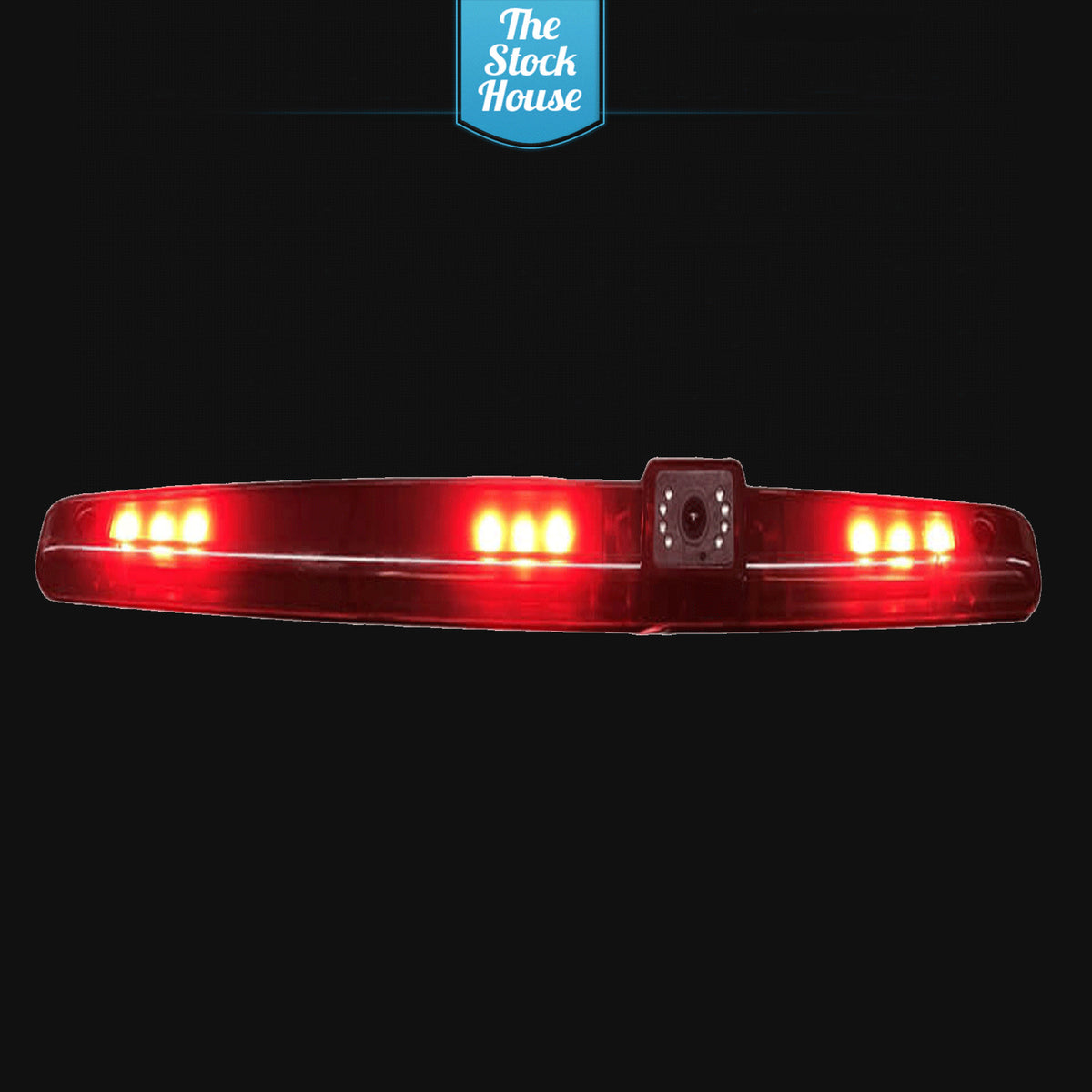

CAMERA SPECIFICATIONS

HD Night vision & Waterproof ,8 IR LEDs with light sensor for night mode

1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip, image clarity without distortion

170 Viewing Angle: 170 degree visible range works great with the blind spot

Easy installation with no holes to be drilled; constructed of high grade automotive plastic

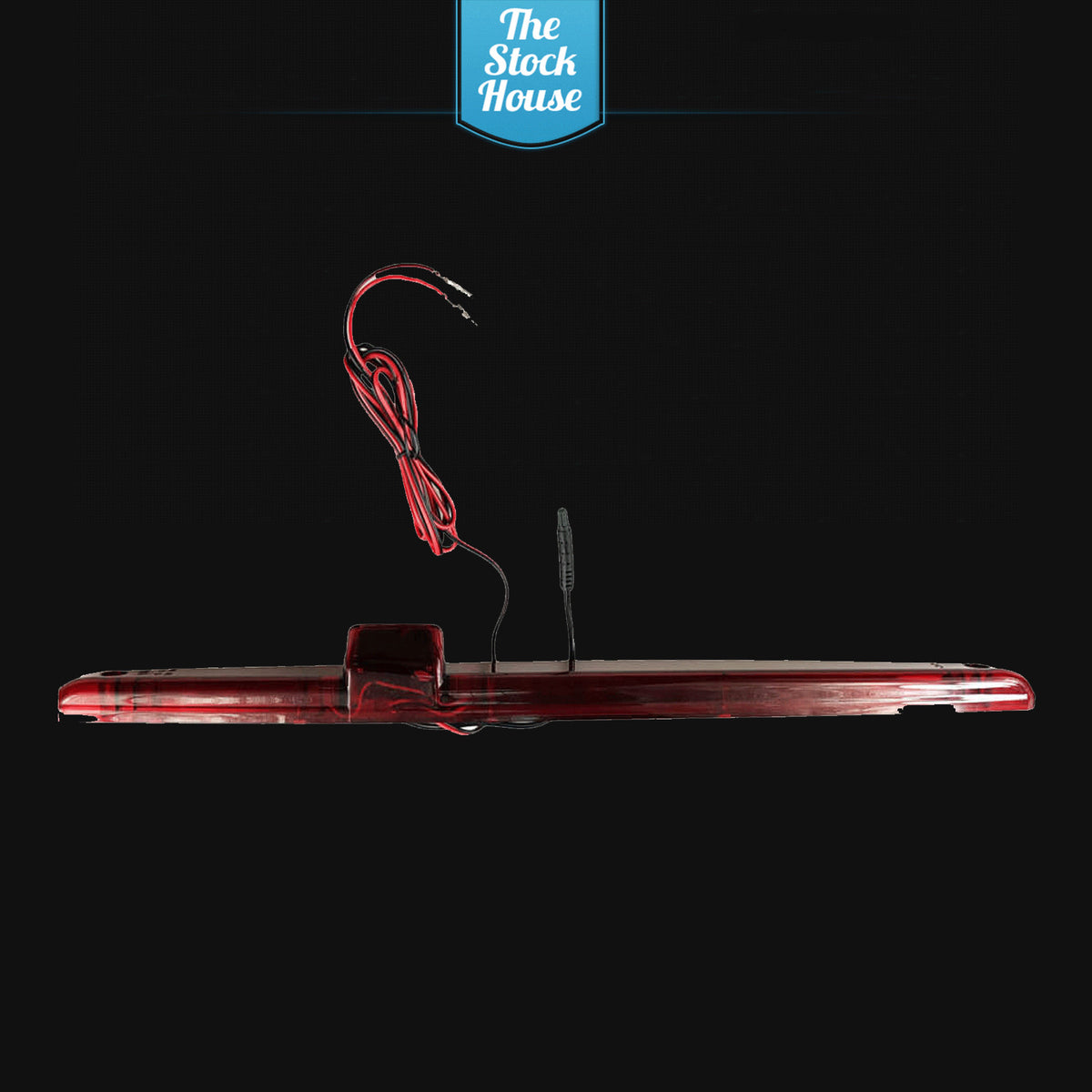

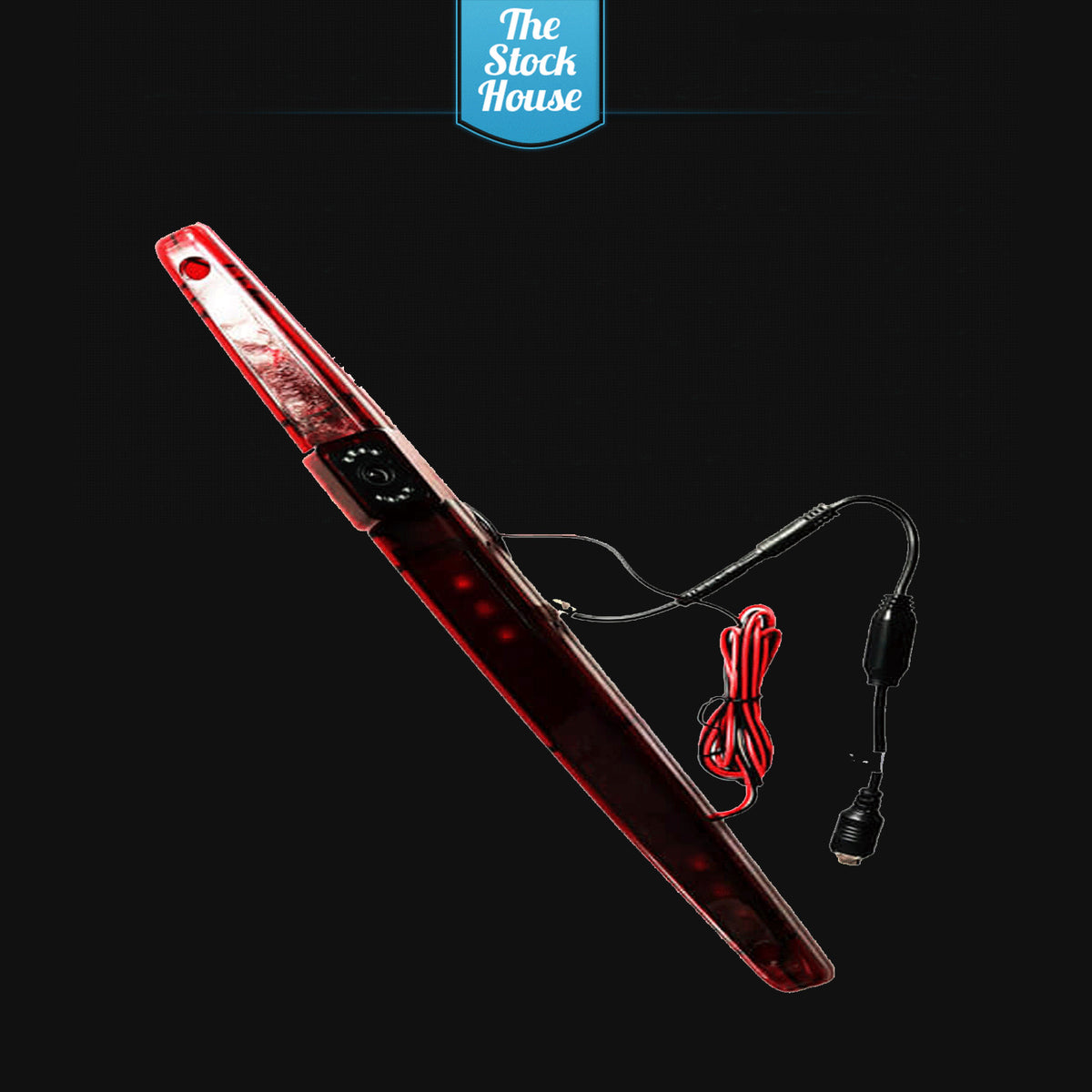

Its installation is flexible with the Brake Light Camera able to mount to any flat surface at the back of a vehicle, making this system ideal for a wide variety of vehicles. The camera is completely weatherproof with an IP68 rating and boasts a 10G vibration rating.

Technical parameters

Third Backup lR reverse rear view light brake Camera For any flat surface at the back of a vehicle

• Lend:1.9
• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ colour HD CMOS/CCD
• System: NTSC/PAL (TV system)

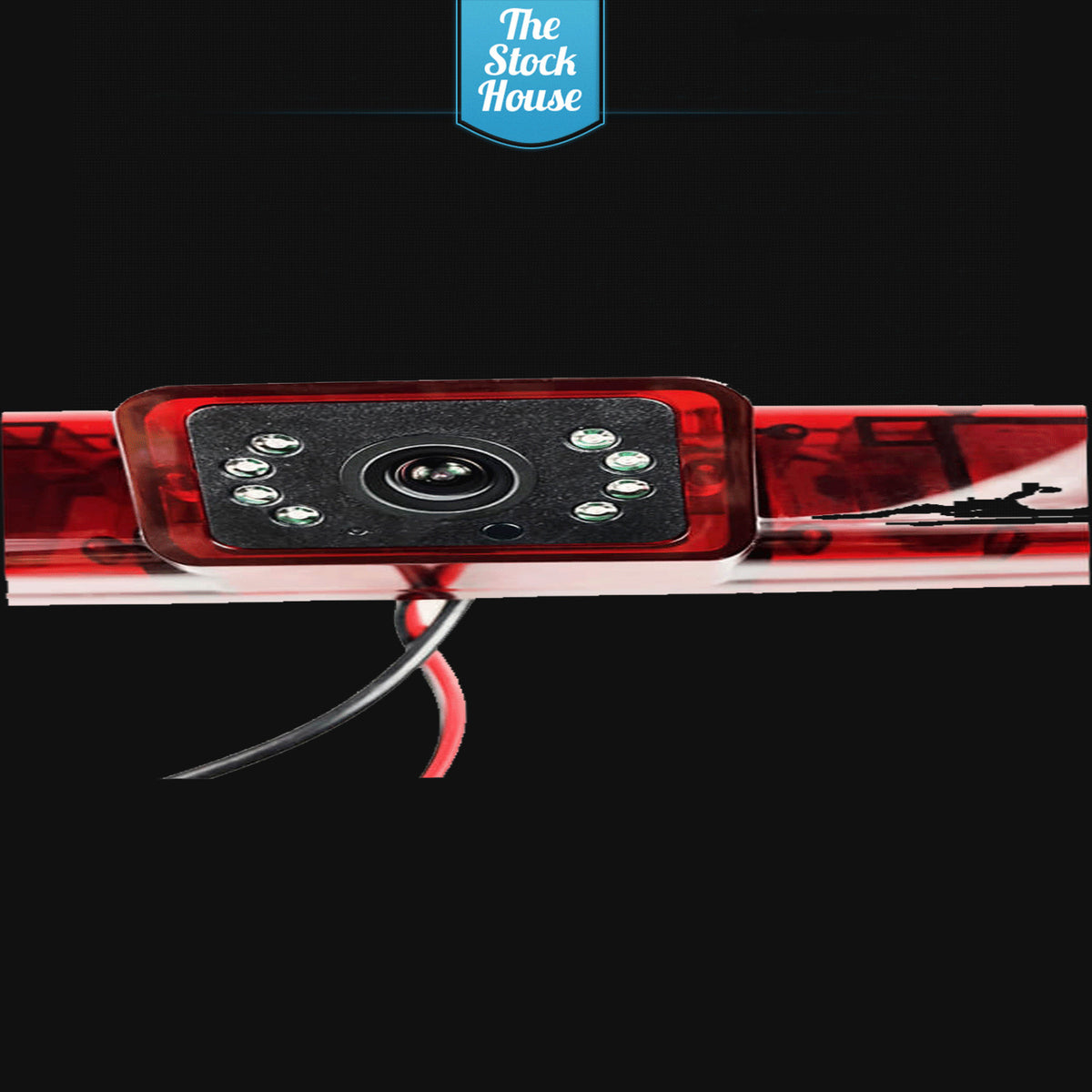

• Perfect IR night vision, 8 piece IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

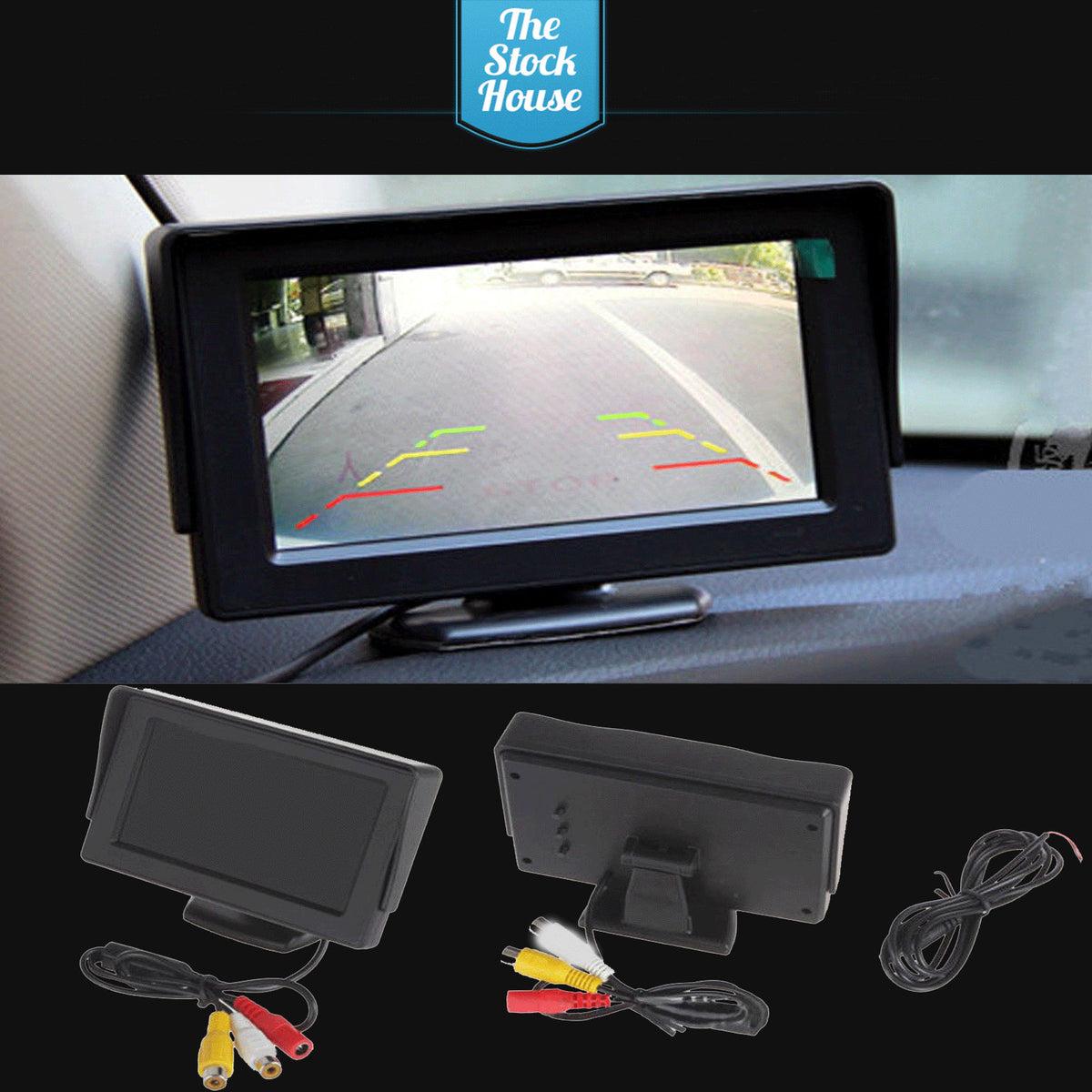

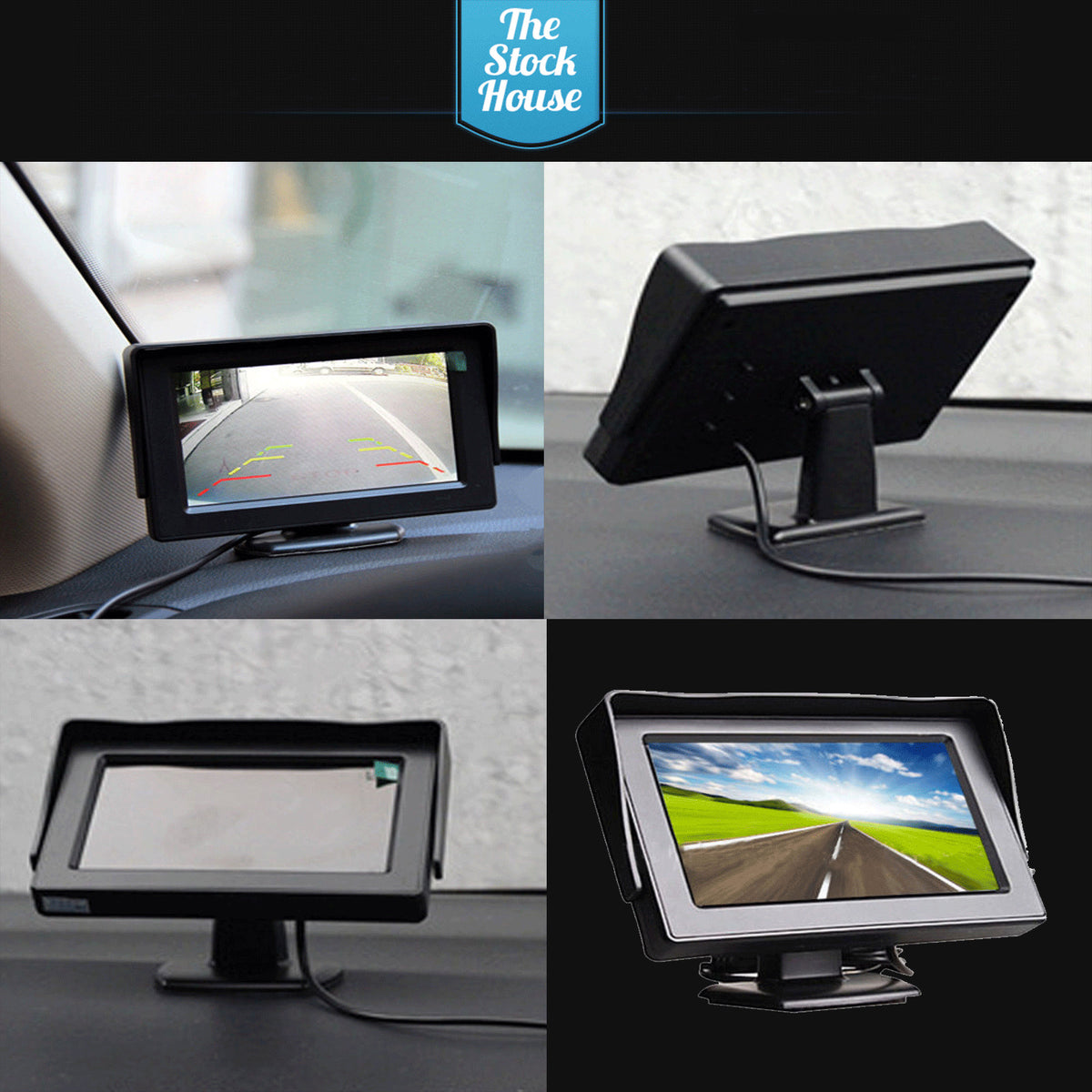

MONITOR SPECIFICATIONS

• Screen Size: 4.3"(16:9)
• Resolution: 482*272
• Model: PAL/NTSC (Automatic throw-over)
• Power Supply: DC 9-35V
• Visible Area: 96mm x 54mm
• Power: 2W
• 2-channel video input:V1/ V2 auto switching(V1 display first )
• Note:

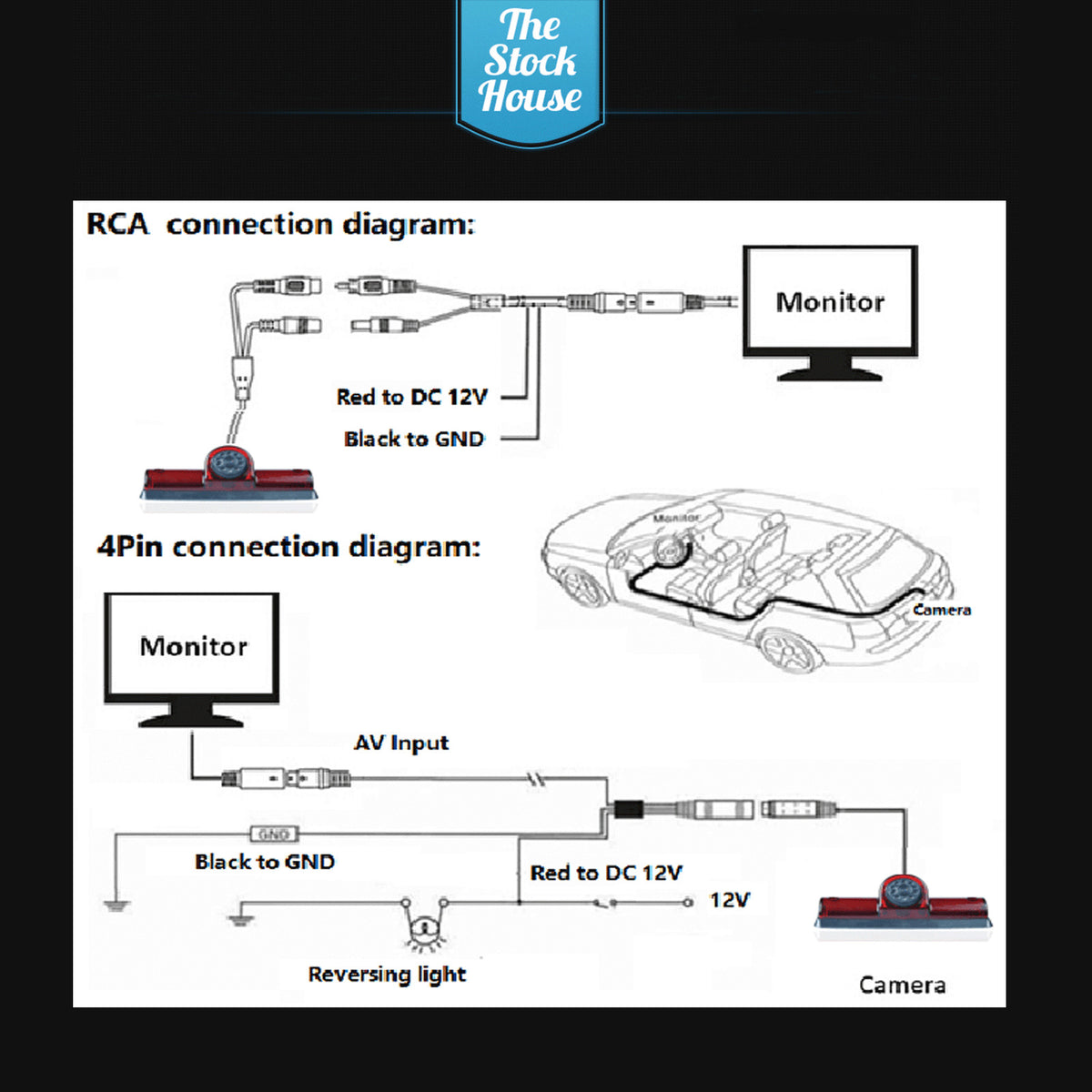

Please Connect the Rearview camera's power cable with reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V1)

Then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)

Features

Brand New and high quality

Fit Most RC models, car Reversing camera, car DVD player,CCTV monitoring and debugging

Simple to install

Swivel function

Full colour display

• Warm tips:
• Specific application methods, functions and features of three plugs:
• Two-way video inputs, a black screen when no signal
• Can connect the reversing system

3. Adjustable in the menu: Contrast, Brightness, Chroma, Mode (16:9/4:3), etc.

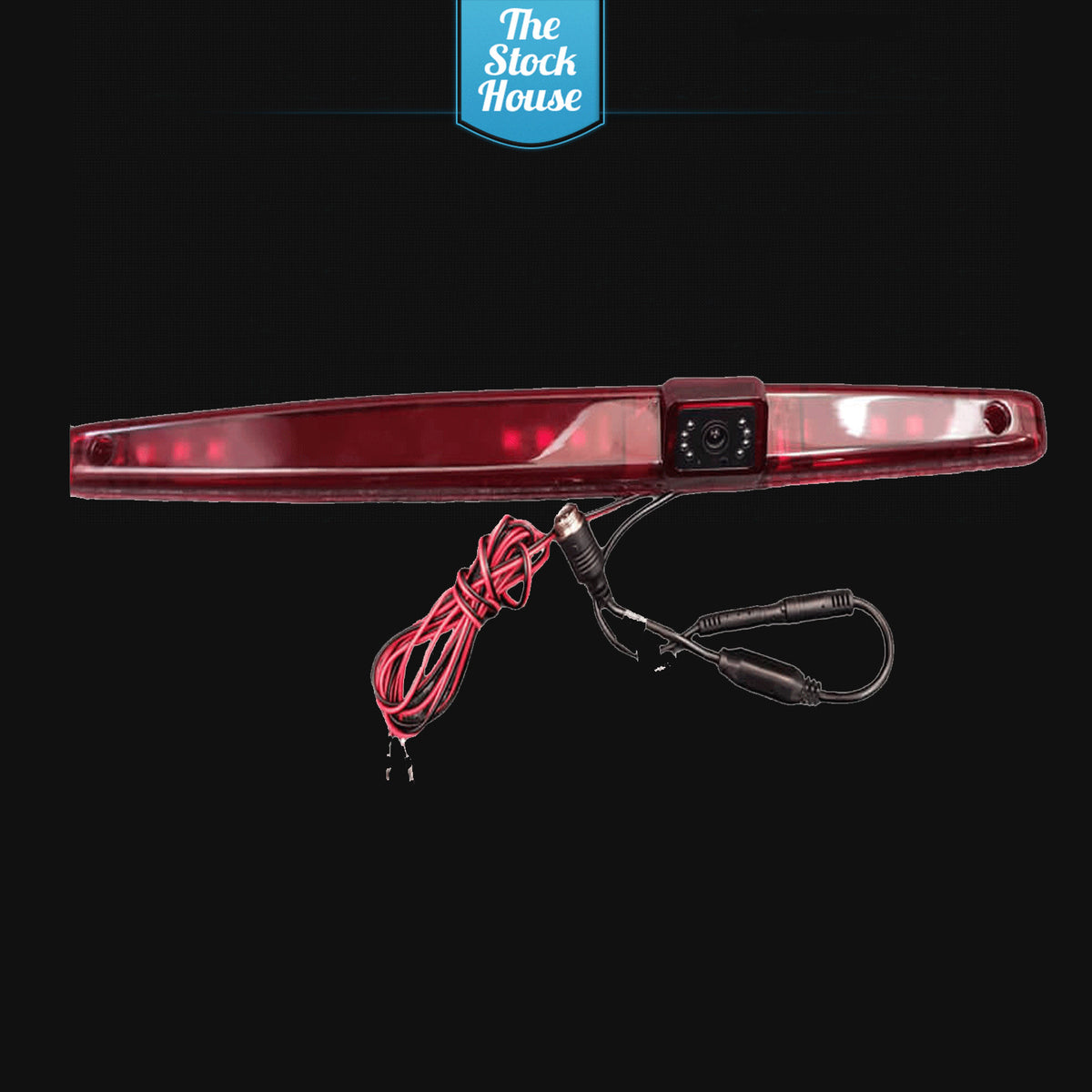

-- Special Brake Light Rear view Camera

-- Power DC cable for camera

-- Extension cable (about 10 meters)

-- Adapter

-- 4.3" Car Monitor (with video and power cable)

-- Power DC Cable for monitor
