Item description
Applicability – backup camera for any flat surface at the back of a vehicle
HD Night vision & Waterproof ,8 IR LEDs with light sensor for night mode
1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip,image clarity without distortion
170 Viewing Angle: 170 degree visible range works great with the blind spot
Easy installation with no holes to be drilled; constructed of high grade automotive plastic
Its installation is flexible with the Brake Light Camera able to mount to any flat surface at the back of a vehicle, making this system ideal for a wide variety of vehicles. The camera is completely weatherproof with an IP68 rating and boasts a 10G vibration rating.
CAMERA SPECIFICATIONS

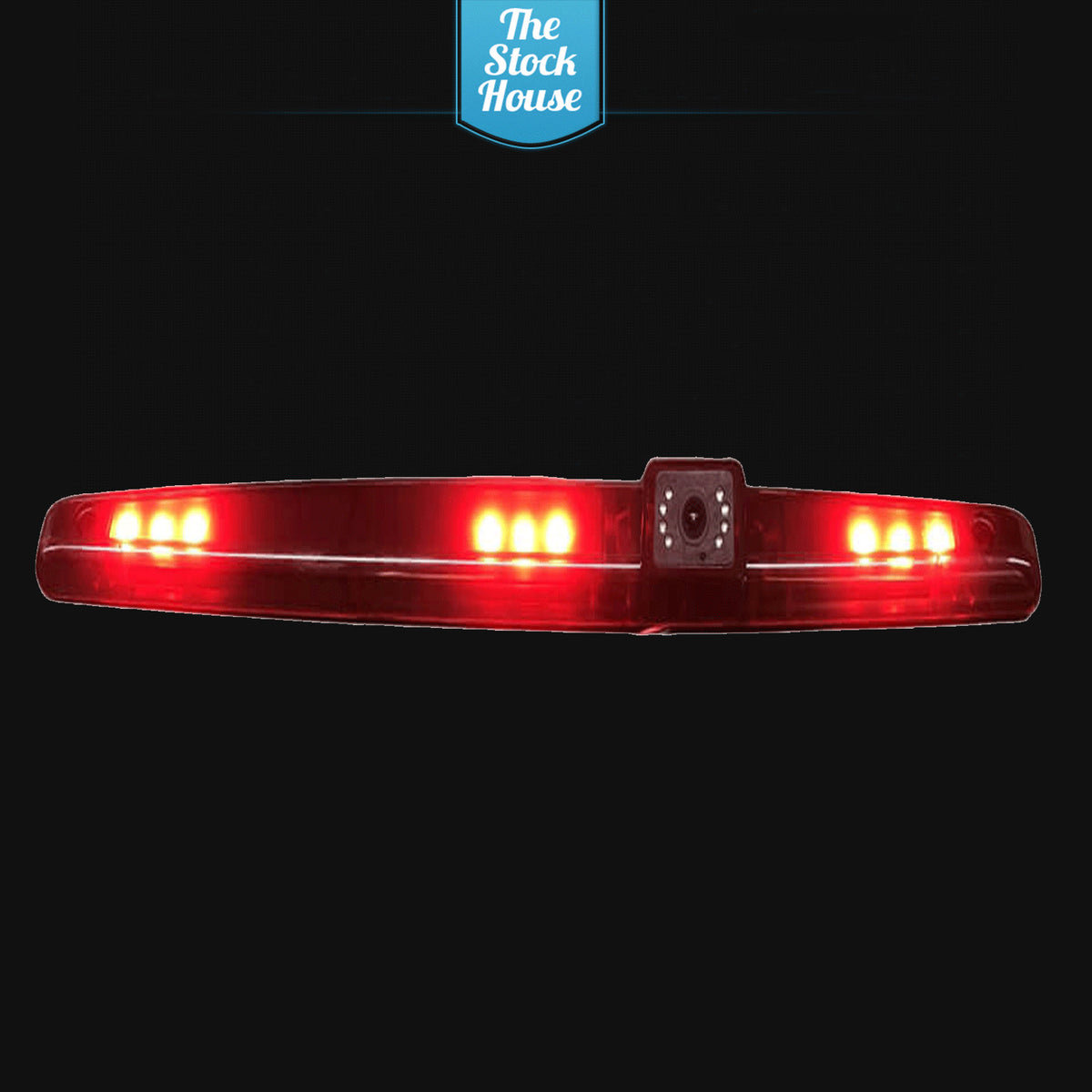

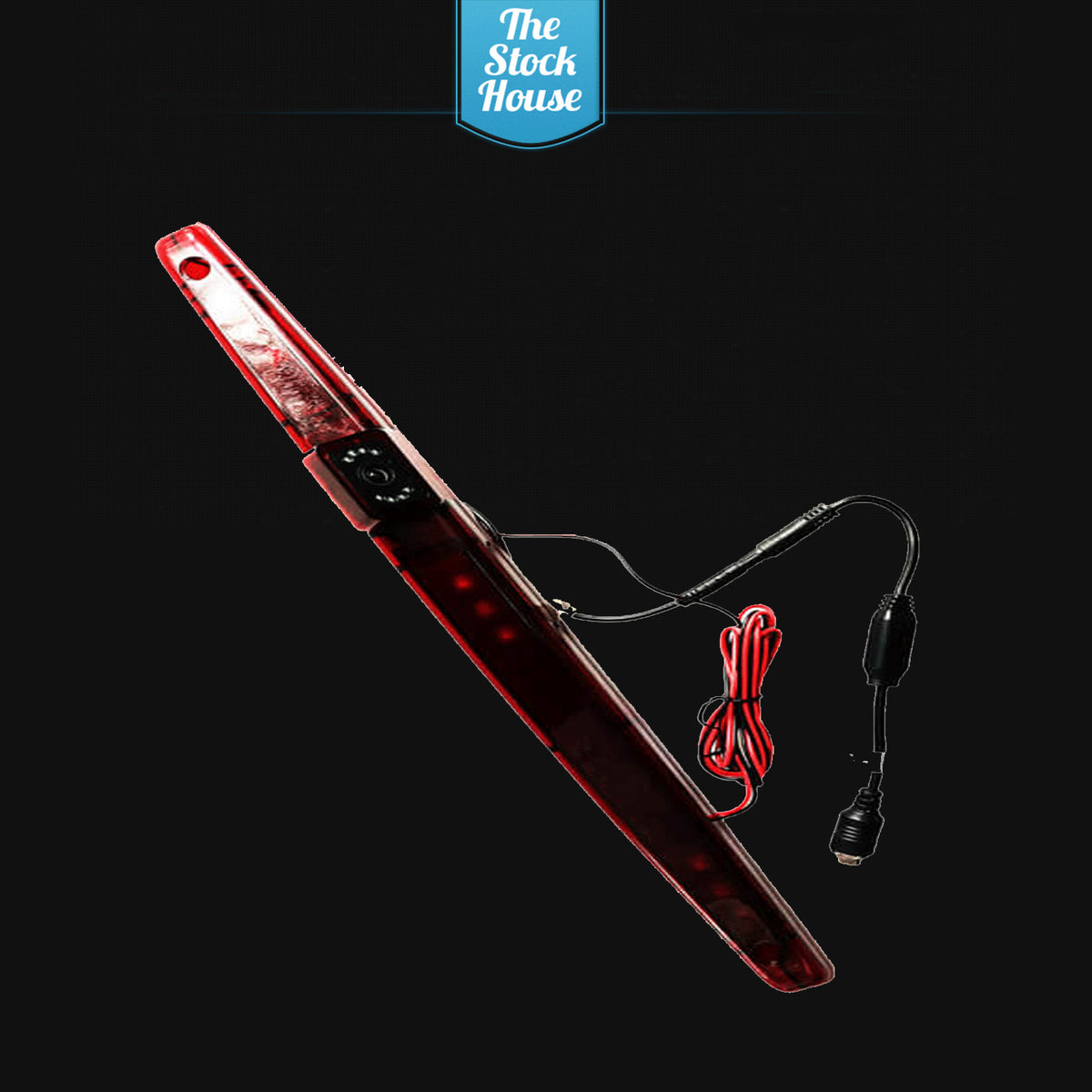

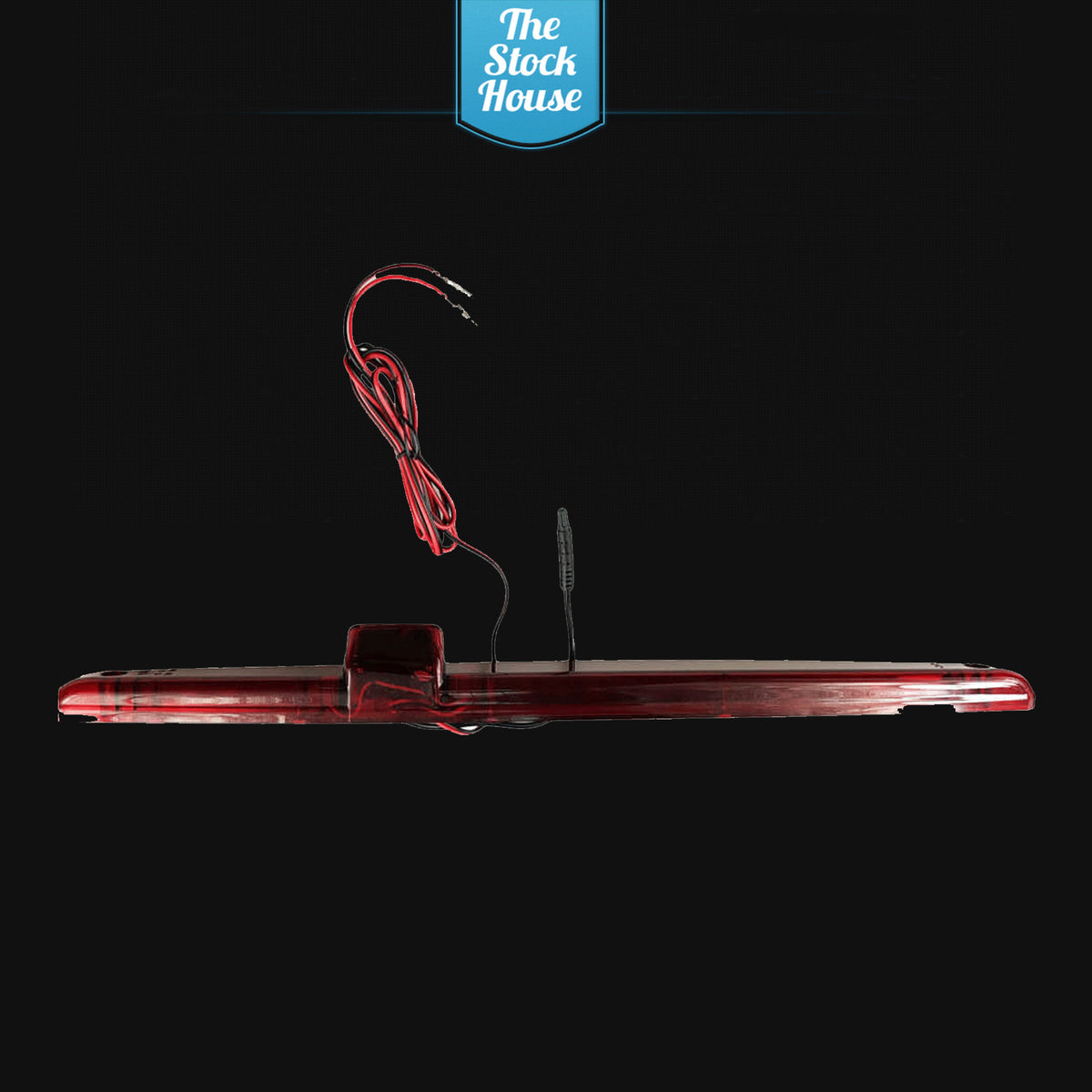

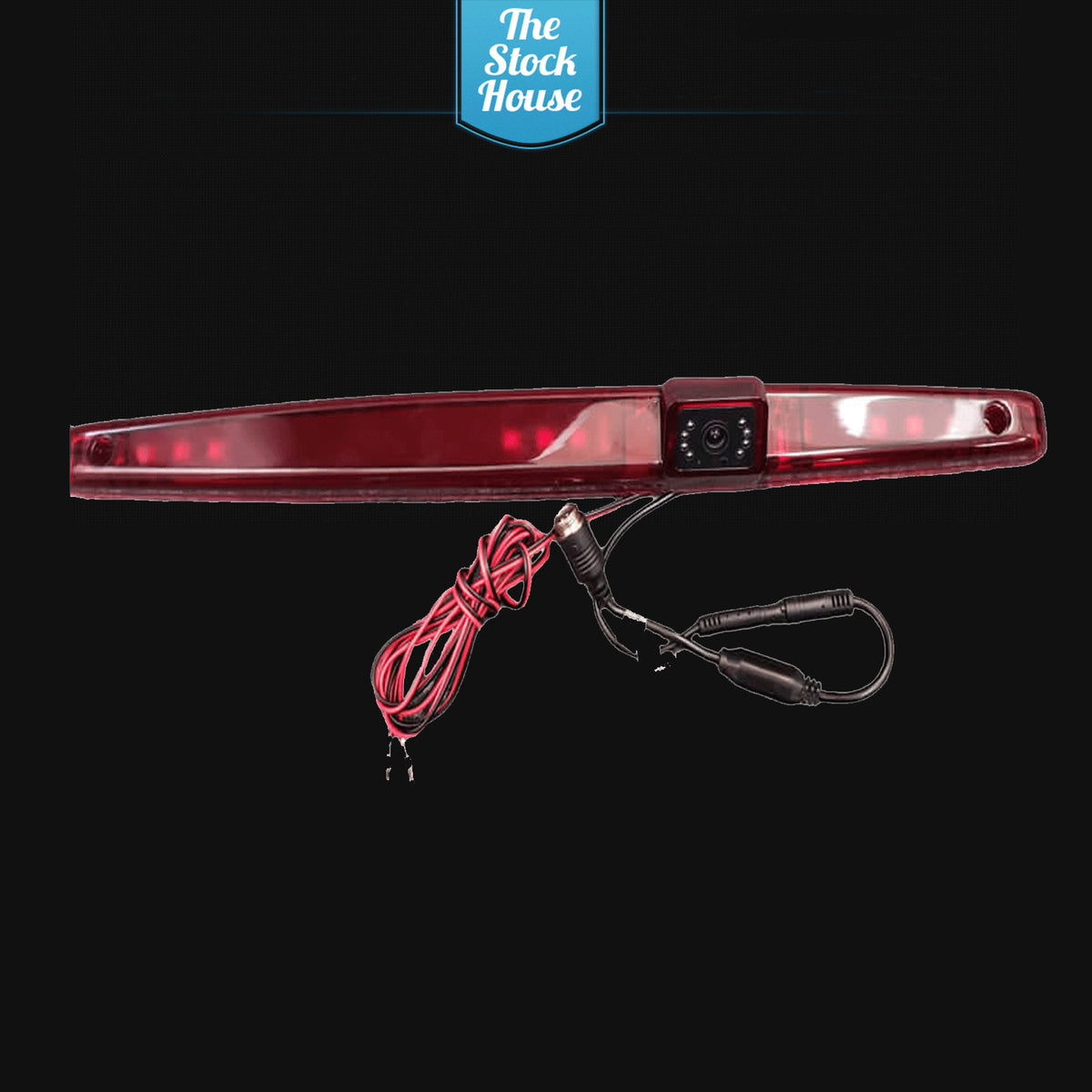

Third Backup lR reverse rear view light brake Camera For any flat surface at the back of a vehicle
- Lend:1.9
- Min illumination:0Lux (LED ON)
- Image sensors: 1/3″ color HD CMOS/CCD
- System: NTSC/PAL (TV system)

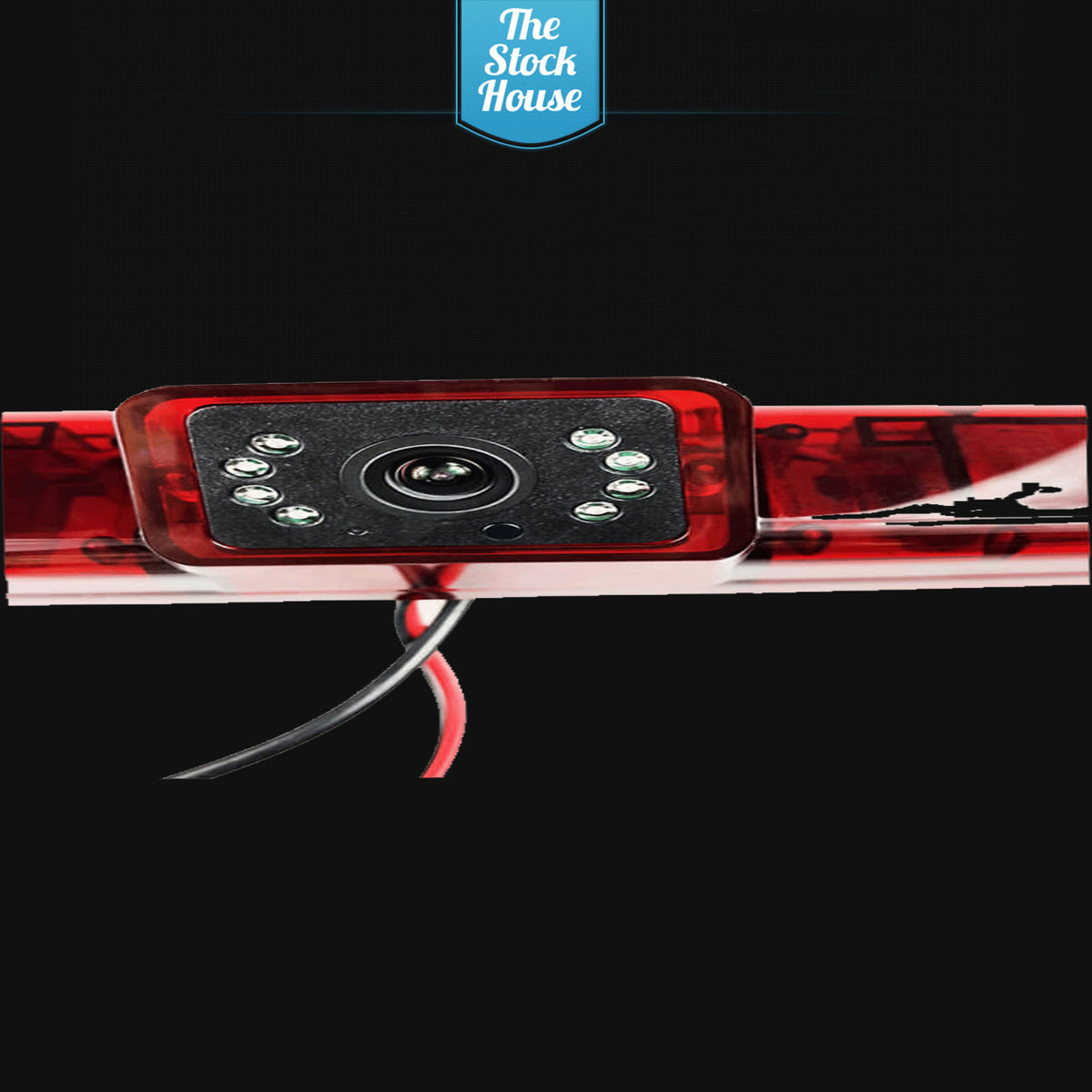

- Perfect IR night vision, 8 pcs IR LED
- Night Vision distance:30ft
- Minimum illumination. <0.5 BLC: Auto
- White Balance: Auto,Video Color: Colorful
- Waterproof Class: ip68
- Effective Pixels : 756(H)*504(V)
- Pixel Resolution : 600TV lines
- Video Output: 1.0Vp-p,75
- Electronic Shutter: 1/60(NTSC)-1/10000S
- S/N ratio: Better Than 48db
- Lens Angle: 170°
- Operation Temperature: -20°C+70°C RH95%
- Storage Temperature: -40°C+100°C RH95%
- Working Power (DC): 12V/1,5
- Watt Current consumption: 90mA Max

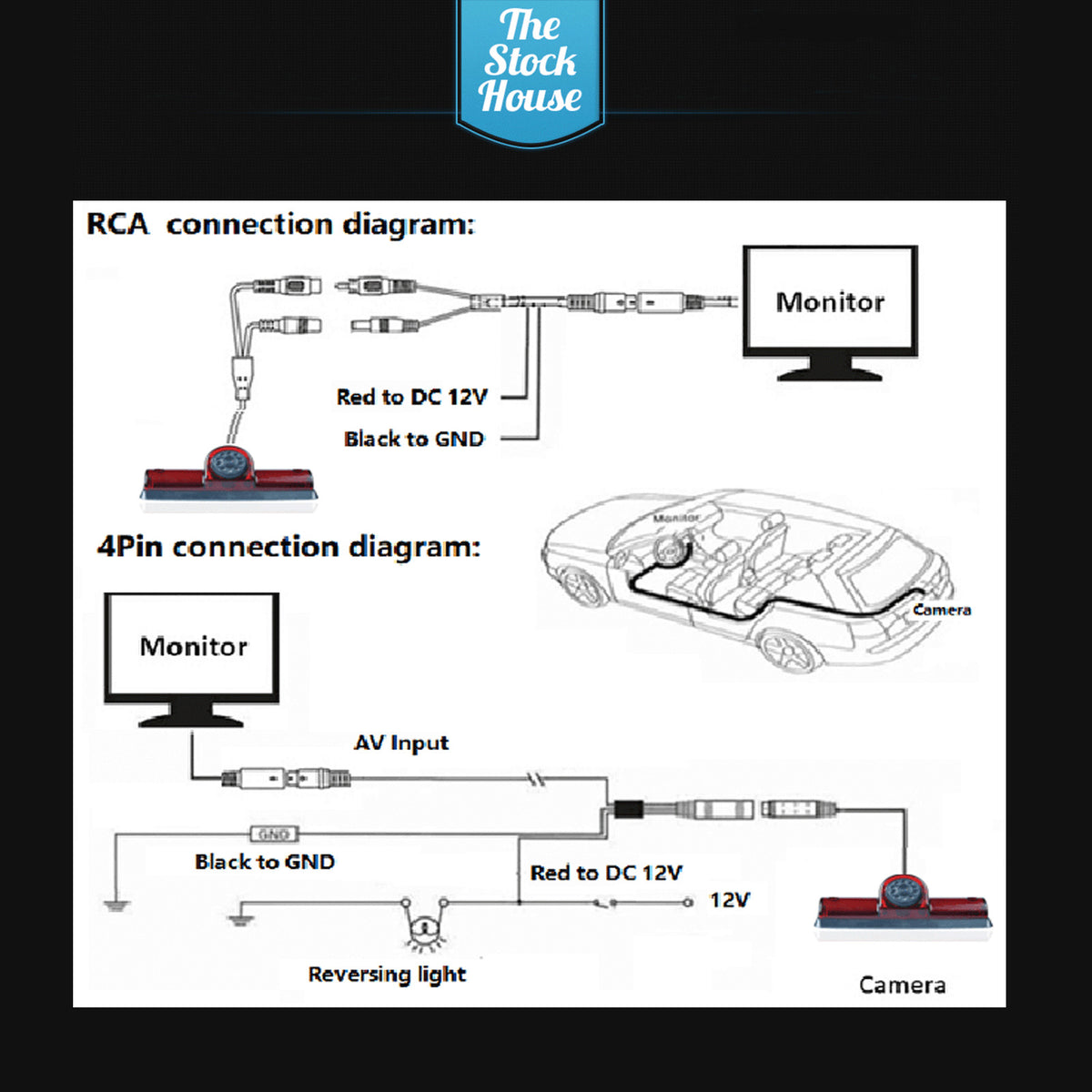

- Video cable is RCA connector

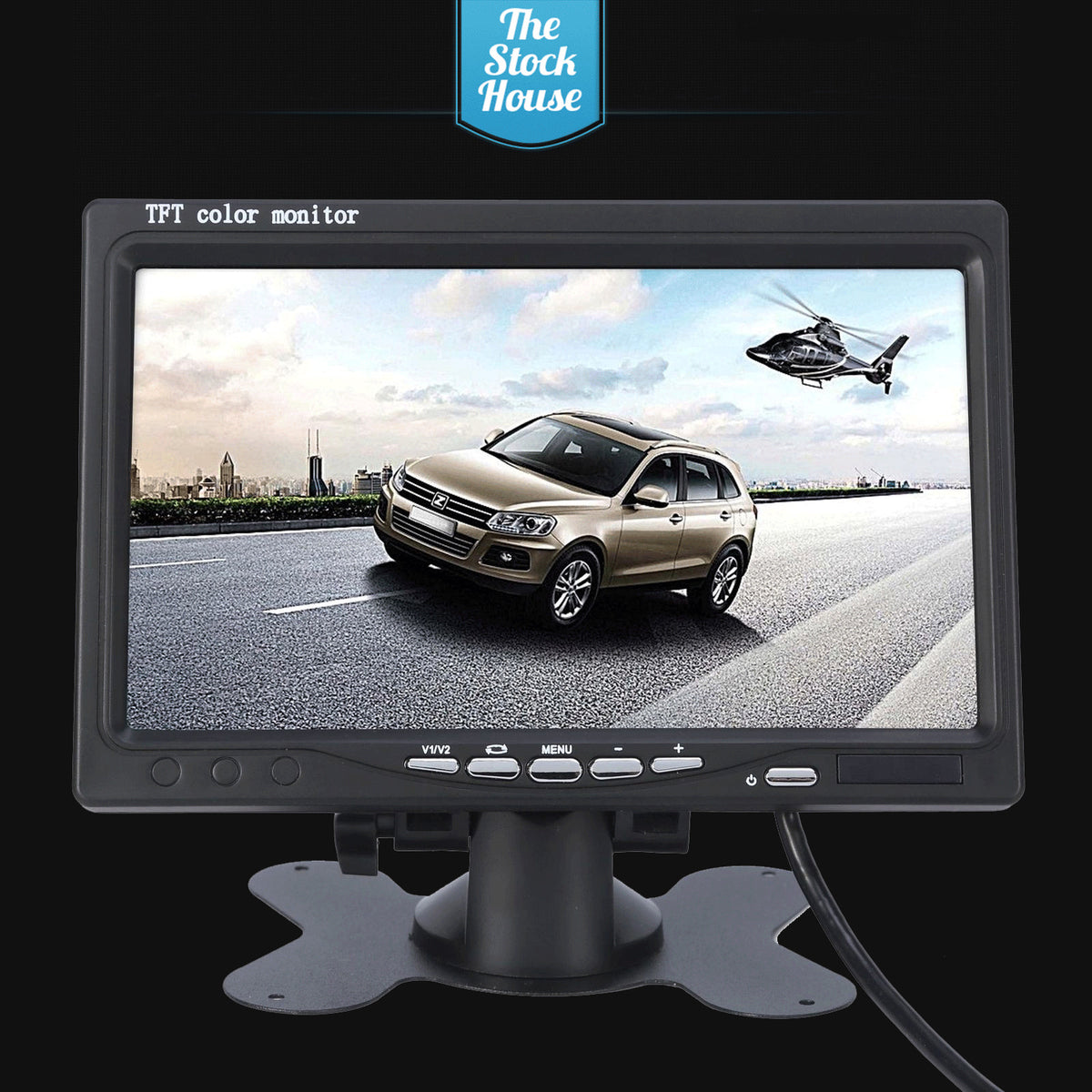

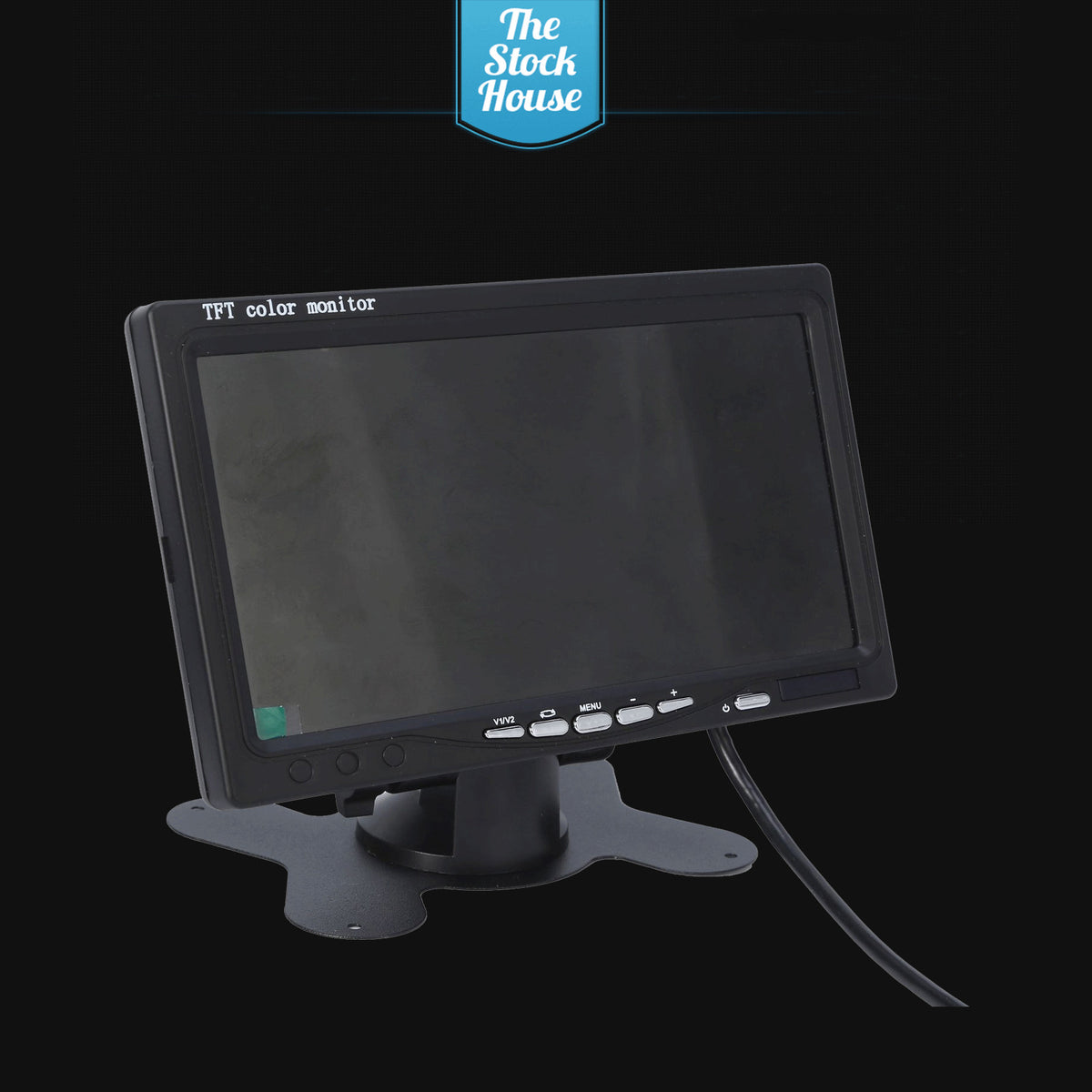

MONITOR SPECIFICATIONS
Features
Available for VCD/DVD/Camera
2 channels video input, full colour display. auto white balance
Automatic back sight function for car backing
Can easily adjust the camera installation angle in multi-level
Screen Size:7 inchSpecifications
- Display Component: Colour TFT-LCD
- Number of Dots: 480W * RGB * 234H
- Contrast Ratio: 100:1
- Video Frequency: PAL/NTSC
- Power Consumption: Around 8W
- Video: Two way video input
- Housing: ABS
- Colour: Black
- Product Dimensions: 195*135*25mm (L*W*D)
- Product weight: 379g

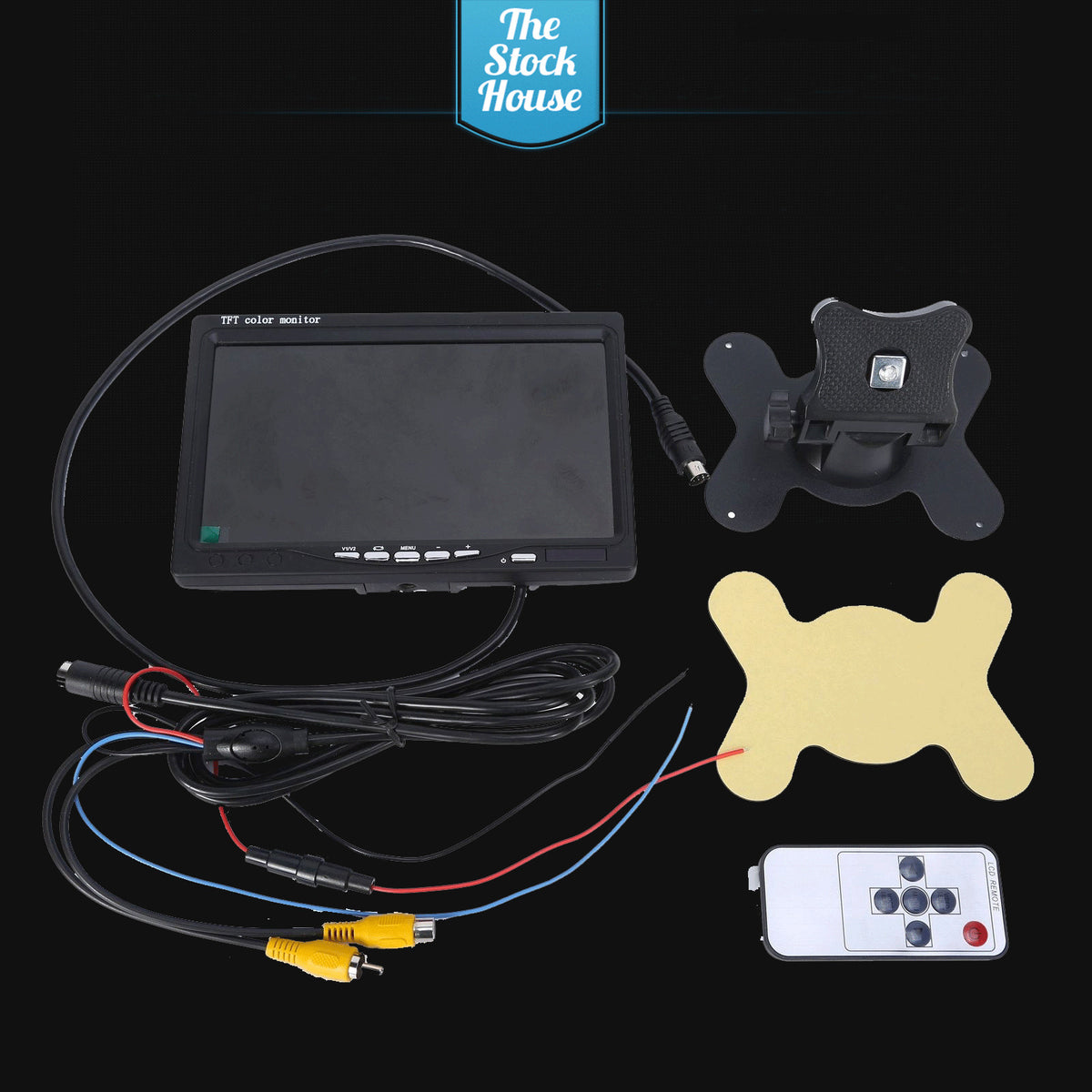

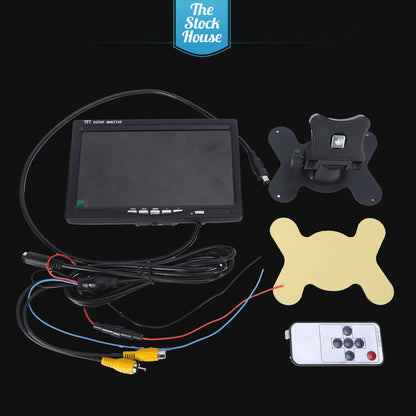

Package Include
1 x 7" Car Monitor
1 x Holder
1 x Bracket
1 x Video & Power Cable
1 x Remote Controller(Not included Battery)
1 x User Manual
