Universal Flat Surface Reversing Camera & Flip Monitor 3rd Brake light Reverse

Item description

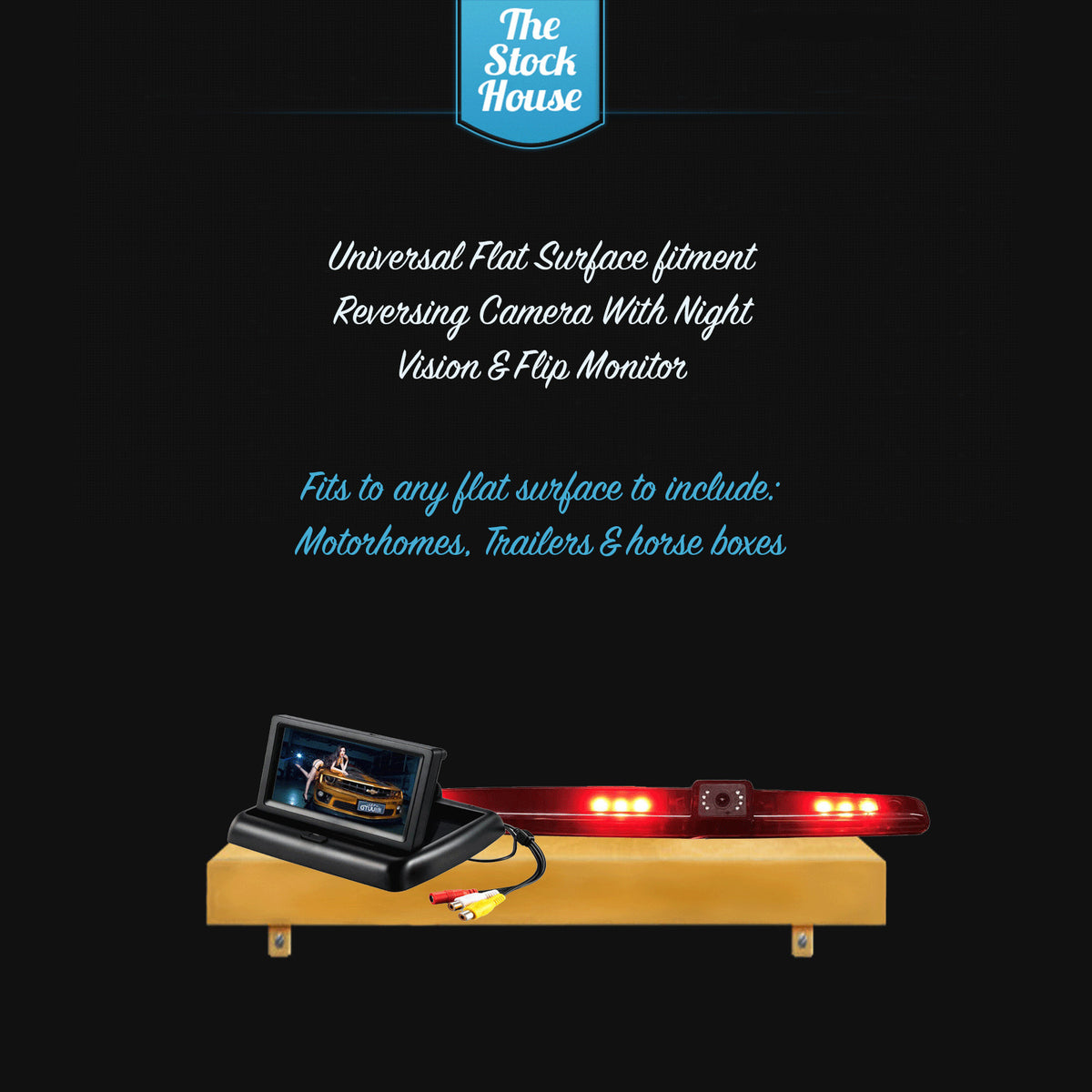

Applicability – backup camera and flip monitor for any flat surface at the back of a vehicle

CAMERA SPECIFICATIONS

HD Night vision & Waterproof ,8 IR LEDs with light sensor for night mode

1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip, image clarity without distortion

170 Viewing Angle: 170 degree visible range works great with the blind spot

Easy installation with no holes to be drilled; constructed of high grade automotive plastic

Its installation is flexible with the Brake Light Camera able to mount to any flat surface at the back of a vehicle, making this system ideal for a wide variety of vehicles. The camera is completely weatherproof with an IP68 rating and boasts a 10G vibration rating.

Technical parameters

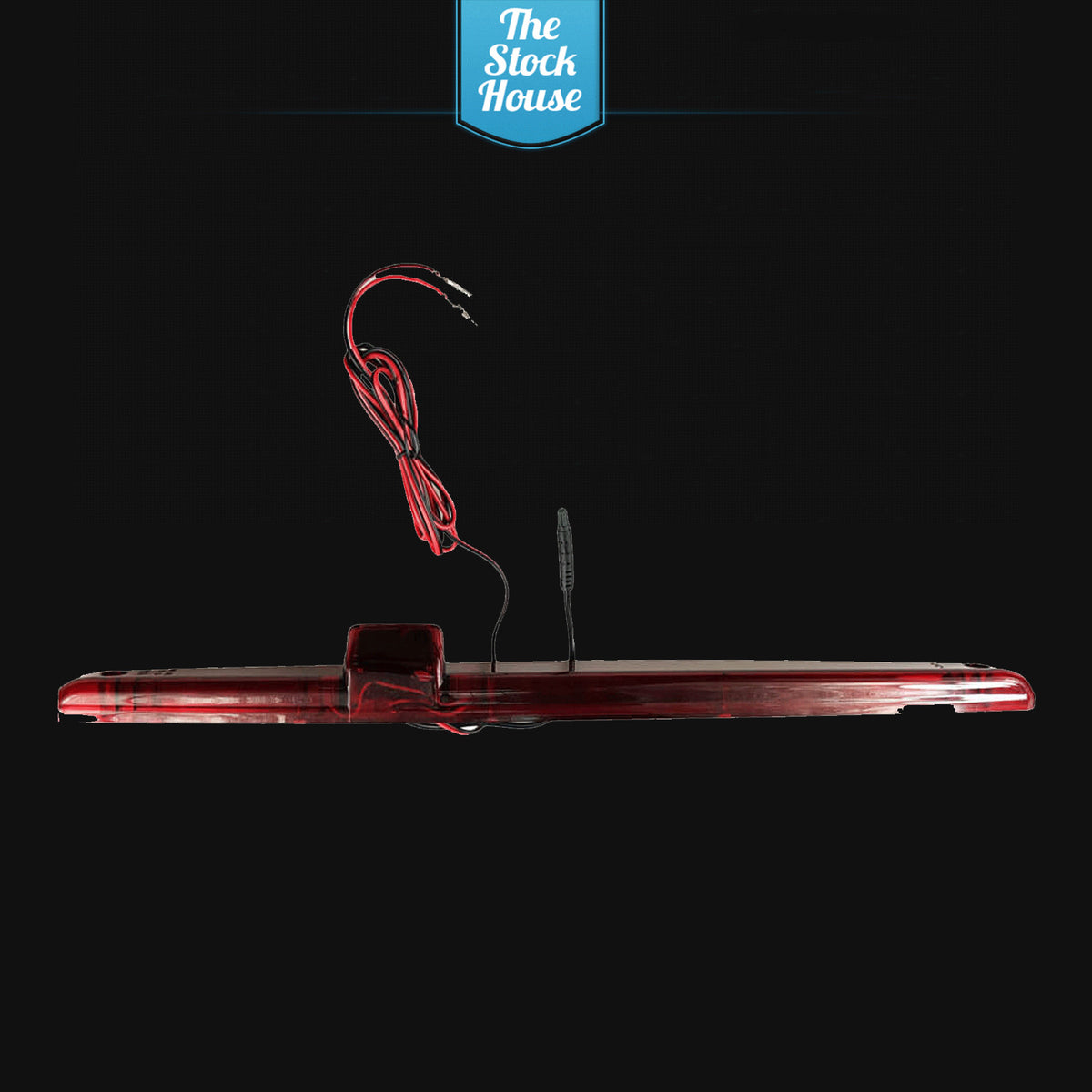

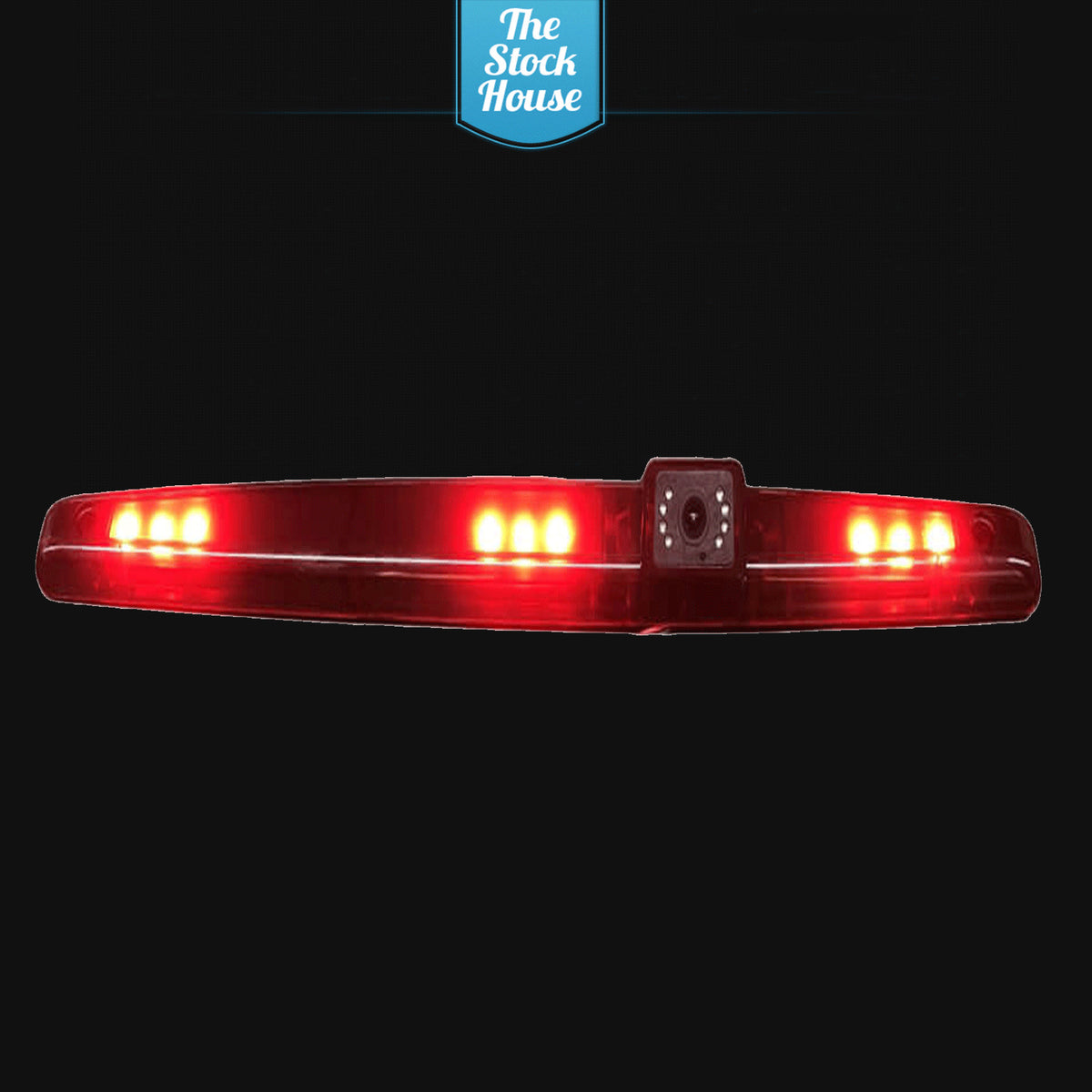

Third Backup lR reverse rear view light brake Camera For any flat surface at the back of a vehicle

• Lend:1.9
• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ colour HD CMOS/CCD
• System: NTSC/PAL (TV system)

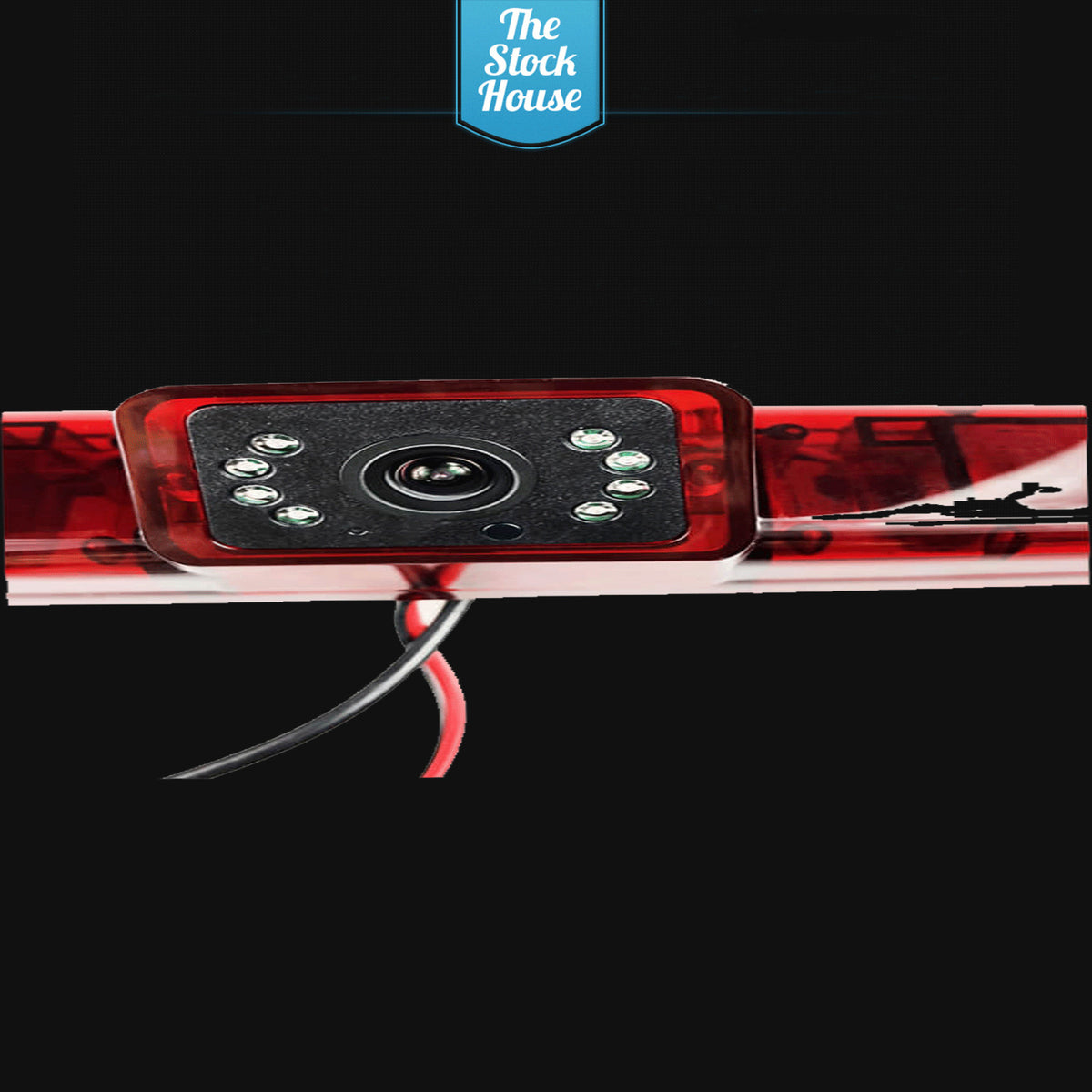

• Perfect IR night vision, 8 piece IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

MONITOR SPECIFICATIONS

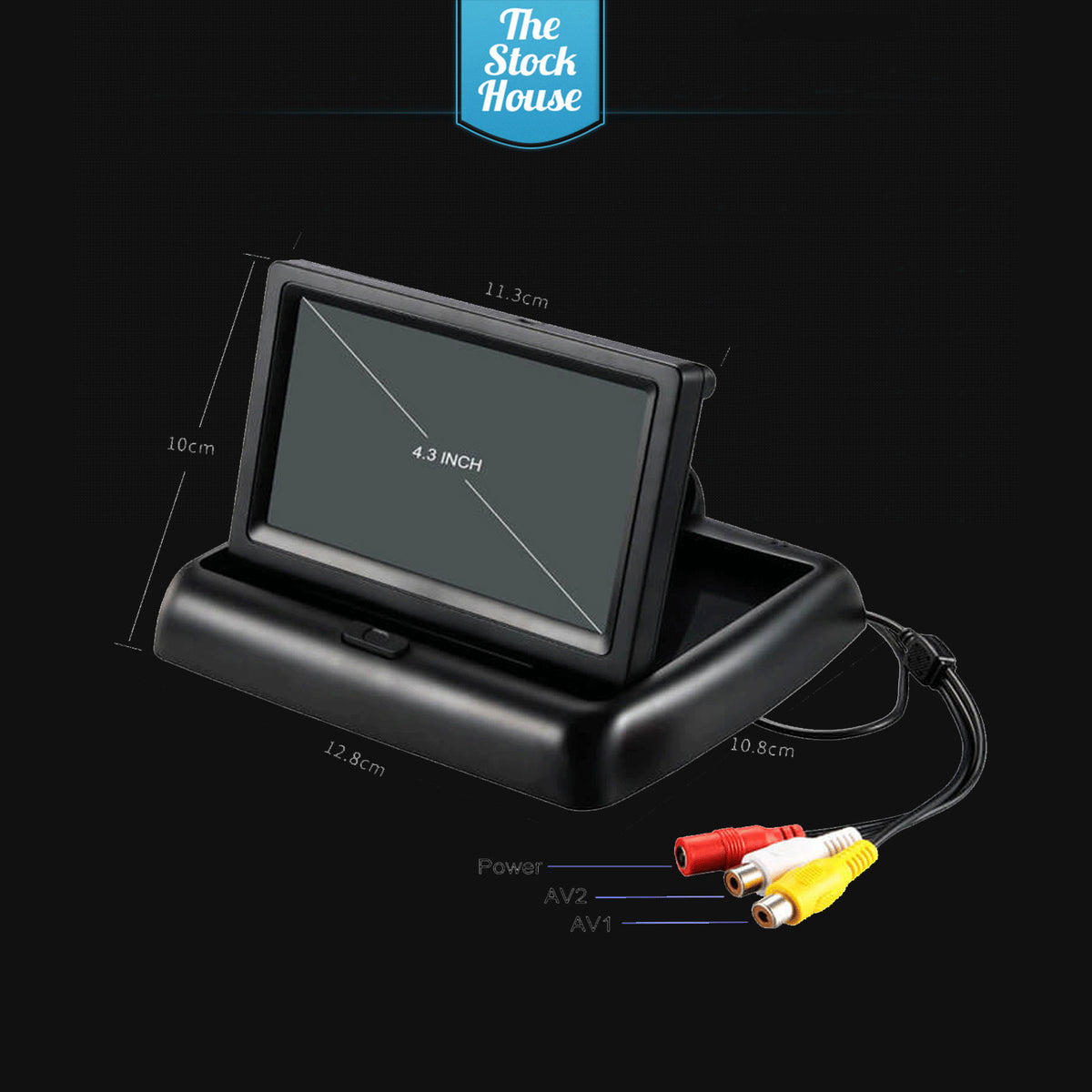

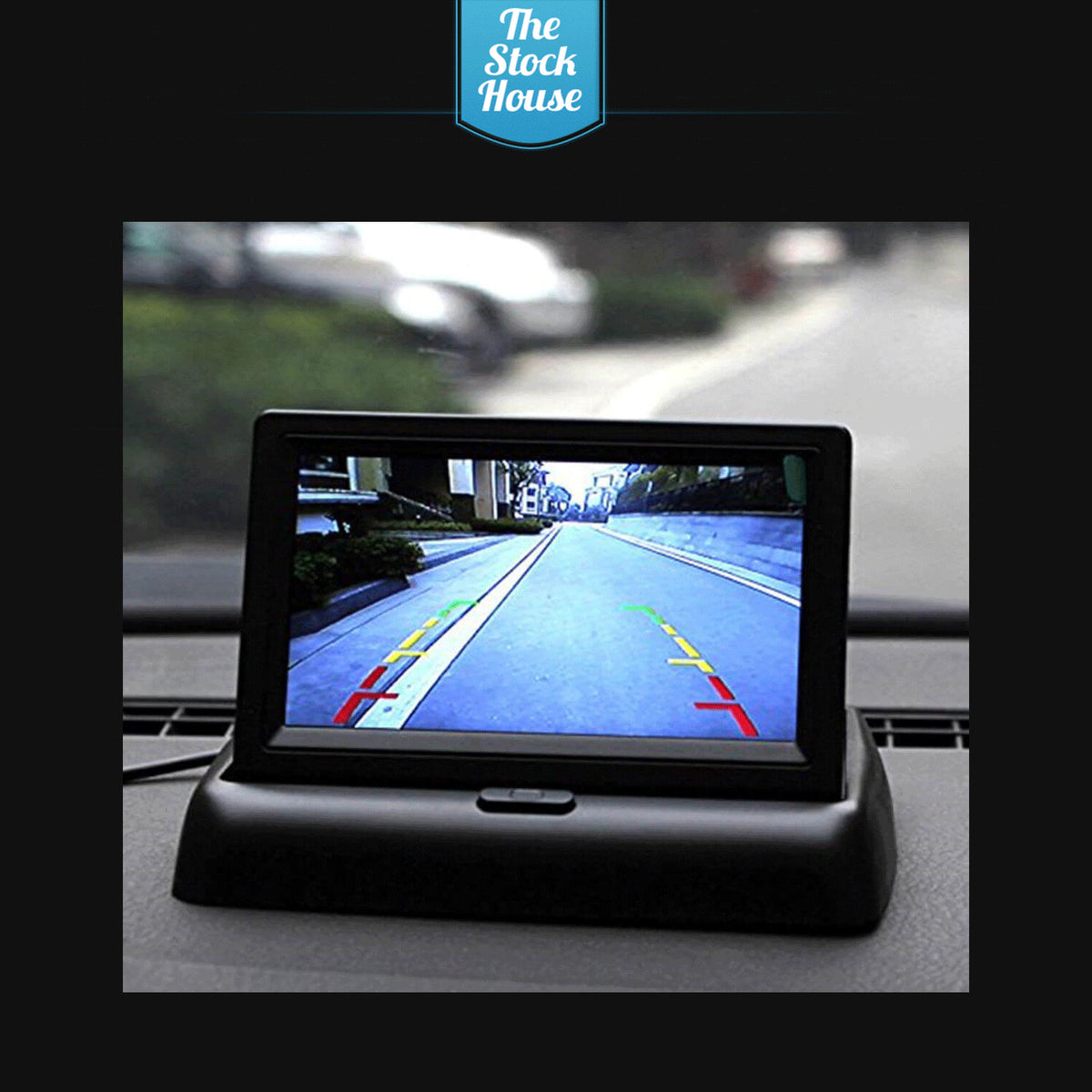

TFT 4.3 inch Monitor Has Capability To Monitor Two Video Inputs V1/V2. V2 Video Input Will Have Priority (Reverse Camera) For Safety.

Screen Dimensions: 7 Inch. Resolution:480X272 System:PAL&NTSC Power:DC 9V-35V Consumption:5W/Rear Watching :Image Can Be Changed Left And Right /Operate Mode:The Key Operation And Remote Control.

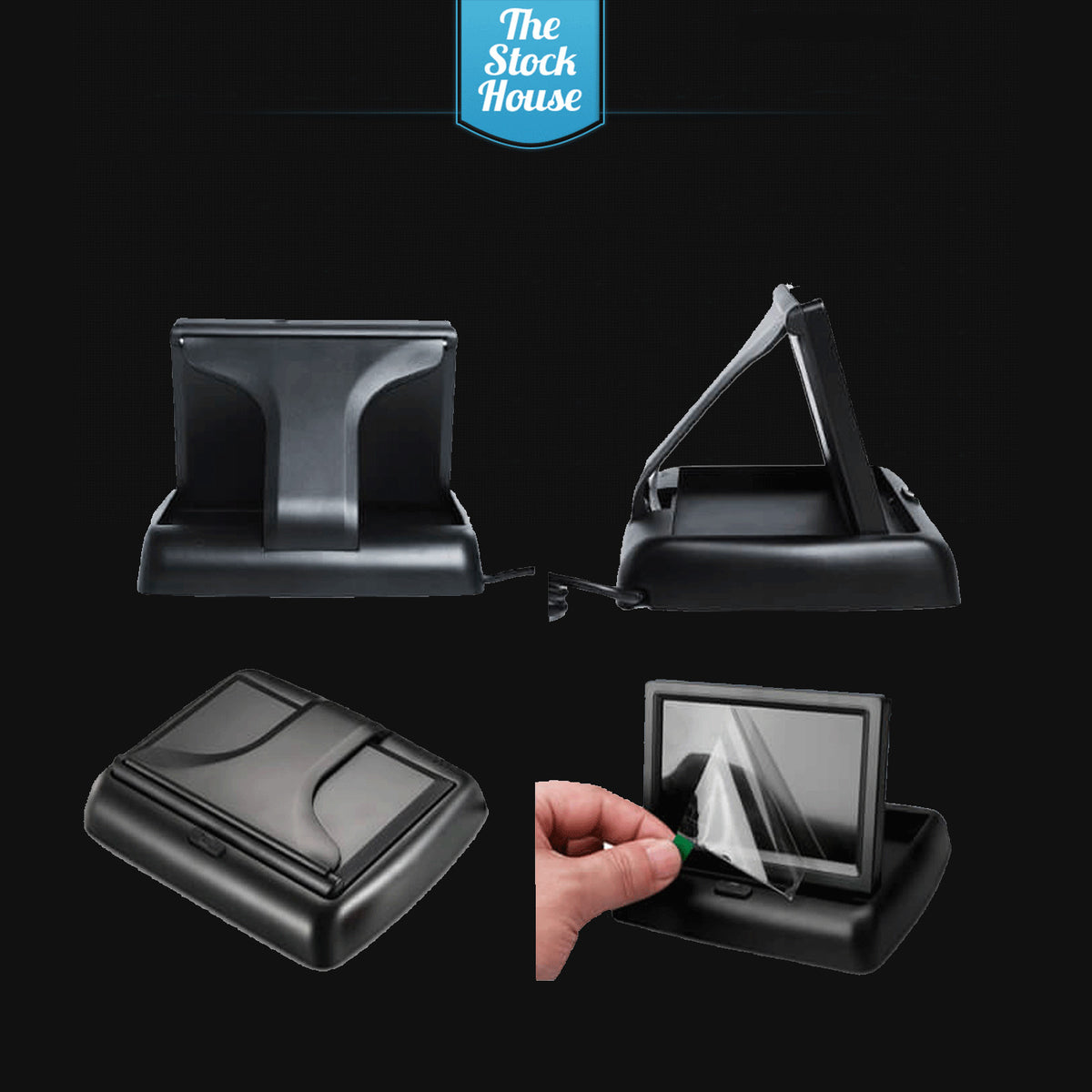

Easy To USE And Operate; Comes With An IR Remote Controller For A Easy Operation，Adjustable To Your Needs; 2 Ways To Install: Standing Or Mounting. Supports Screen Rotation And Adjustable Brightness, Contrast, And Colour.

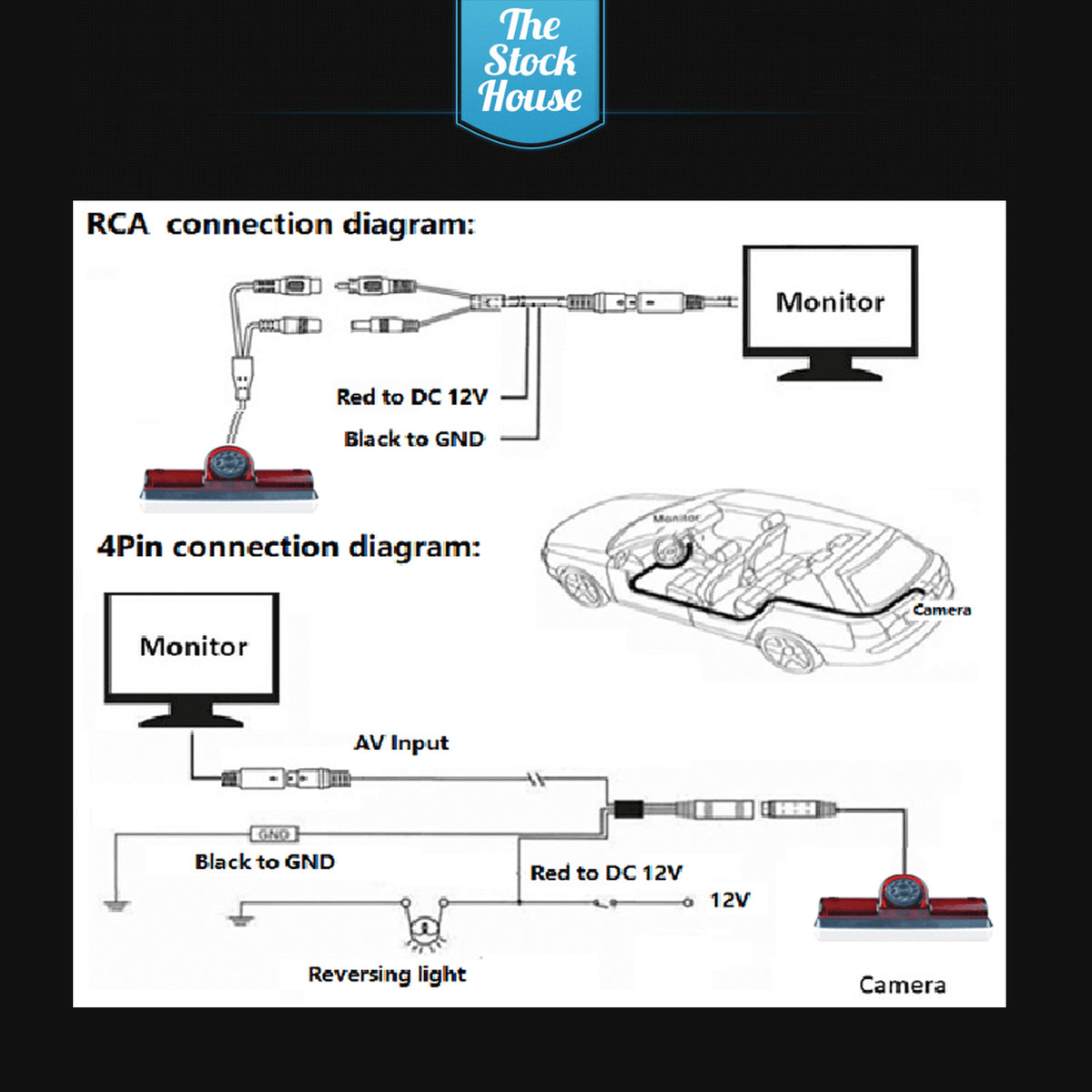

Why is The Four-Pin Connector? Because This is an Upgraded Monitor , its Resolution Has Been Significantly improved, 1024×600! Compared With Other RCA interface Monitors, The Four-Pin interface Transmits HD images More Clearly.The image Resolution Transmitted By The RCA interface is Only 800×480, While The DVKNM Display Uses an Upgraded Four-Pin interface To Transmit High-Definition images Up To 1024×600. Bid Farewell To The Problem Of Colour Cast, Unclear

Technical parameters

• 3 tft lcd car foldable rearview monitor

Main features

high resolution digital LCD panel

Dual video input for rear view camera and DVD

Power memory function & low current consumption

Easy for installation and uninstallation

Technical specification

Panel TFT LCD (Digital)

Display Size 4.3″

• Display Ratio 16:9 (4:3)
• Resolution 480*RGB*272
• Video Input 2-channel, AV1 to DVD/VCD,
• AV2 to reversing camera
• Signal System PAL/NTSC
• Brightness 250cd/m2
• Contrast 300:1
• Power Supply DC12V
• Current consumption 2W(Max.)
• Certificate: CE and FCC

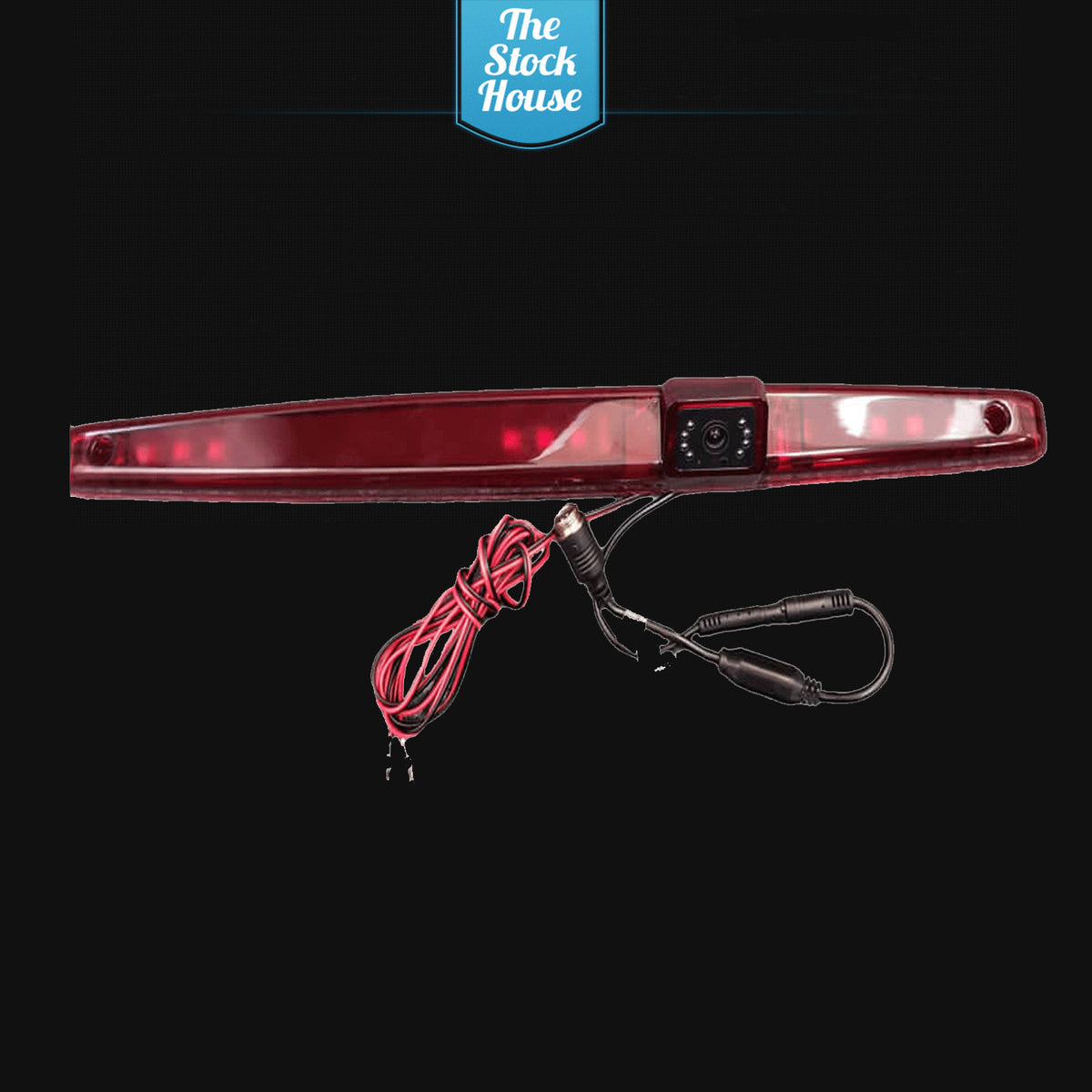

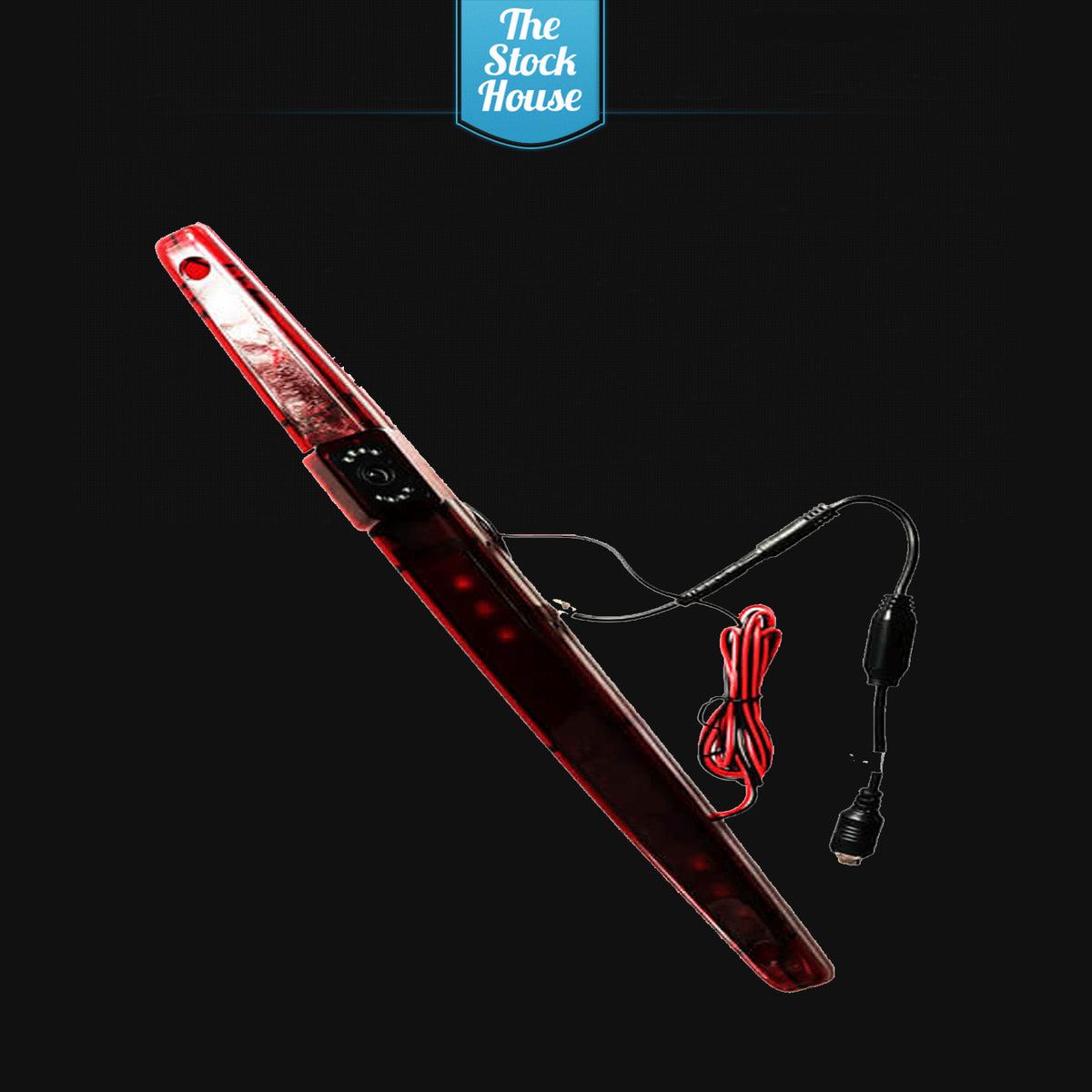

• -- Special Brake Light Rear view Camera
• -- Power DC cable for camera
• -- Extension cable (about 10 meters)
• -- Adapter

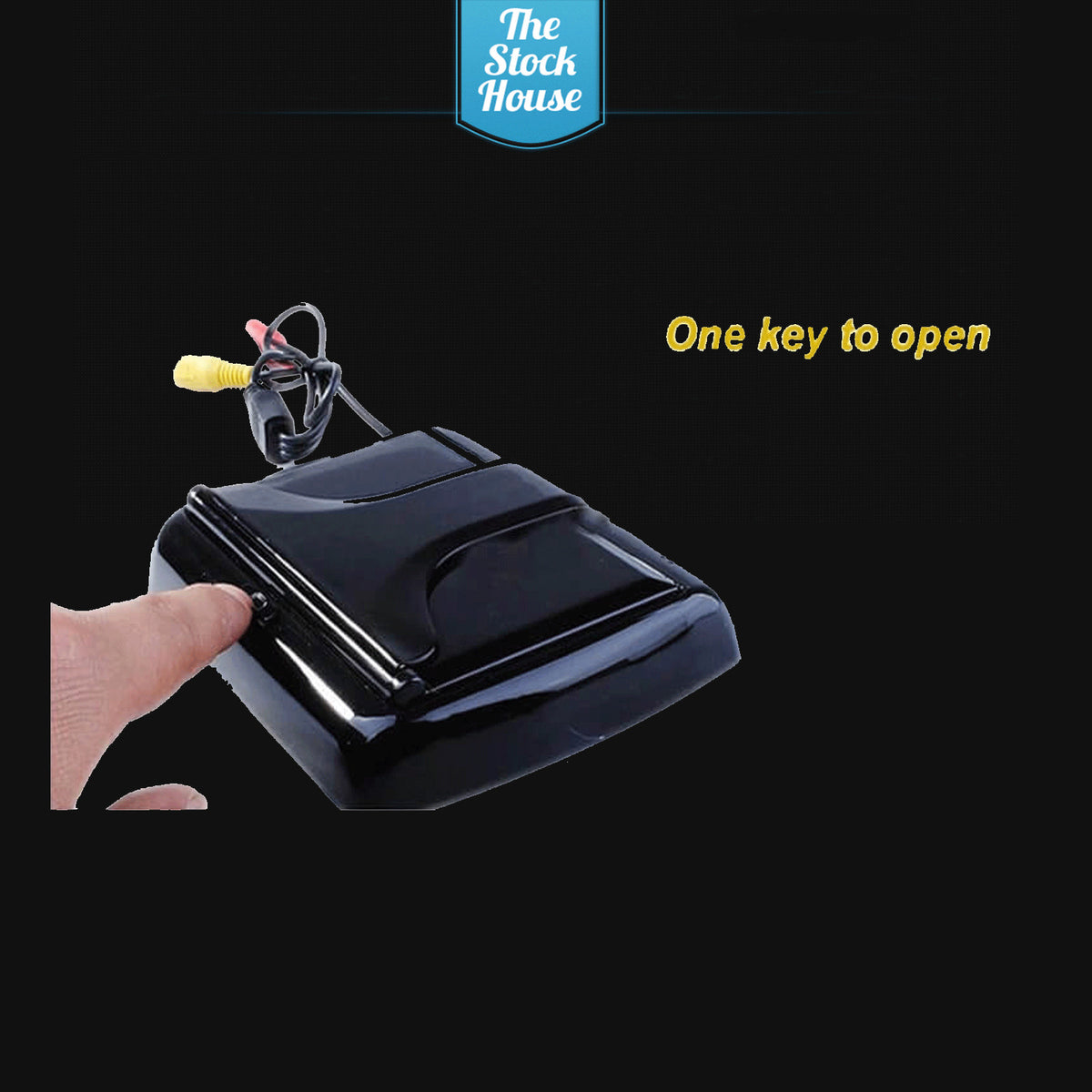

• -- 4.3" Flip Car Monitor (with video and power cable)
• -- Power DC Cable for monitor
