Item description
Applicability – backup camera for any flat surface at the back of a vehicle

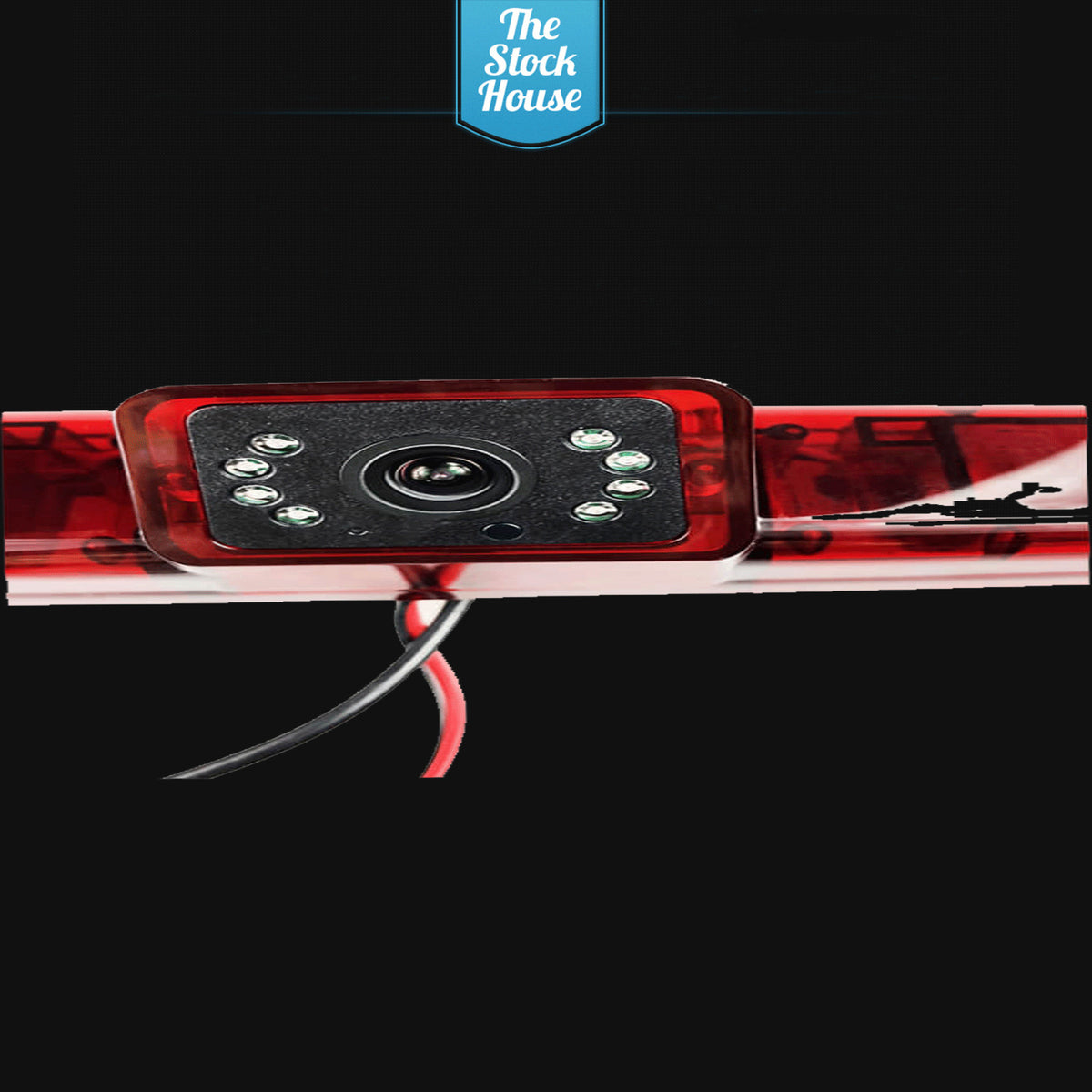

CAMERA SPECIFICATIONS
HD Night vision & Waterproof ,8 IR LEDs with light sensor for night mode
1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip,image clarity without distortion
170 Viewing Angle: 170 degree visible range works great with the blind spot
Easy installation with no holes to be drilled; constructed of high grade automotive plastic
Its installation is flexible with the Brake Light Camera able to mount to any flat surface at the back of a vehicle, making this system ideal for a wide variety of vehicles. The camera is completely weatherproof with an IP68 rating and boasts a 10G vibration rating.
Technical parameters

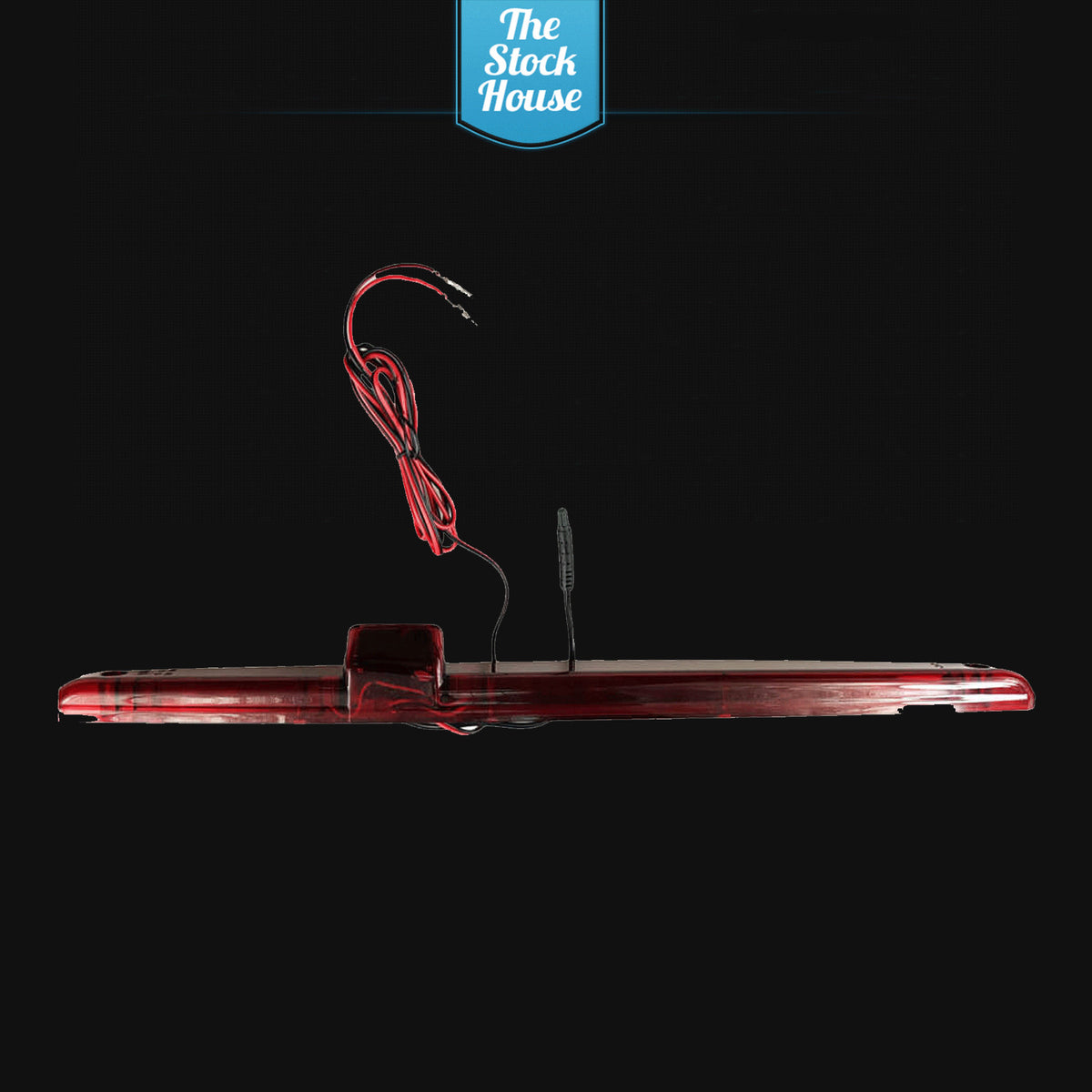

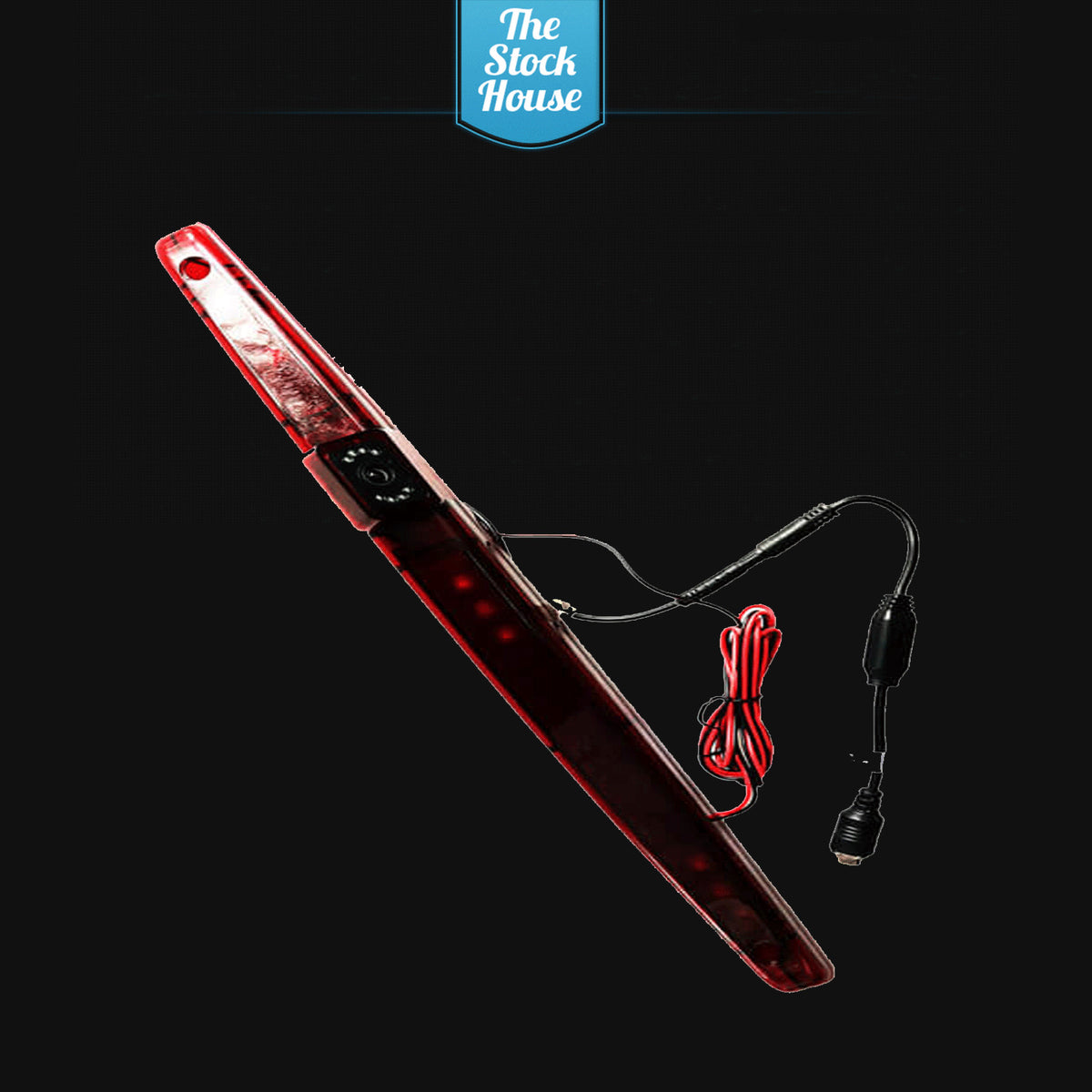

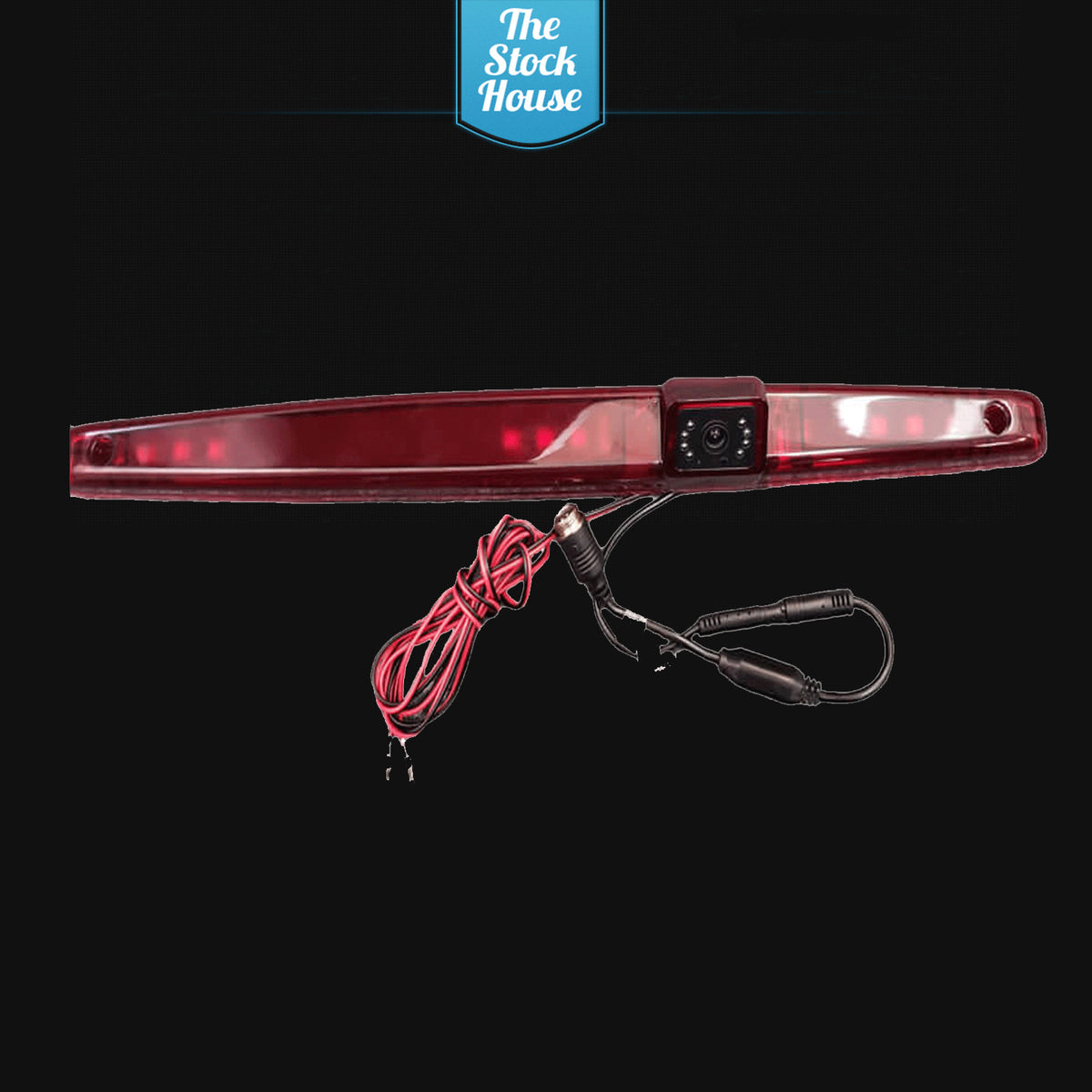

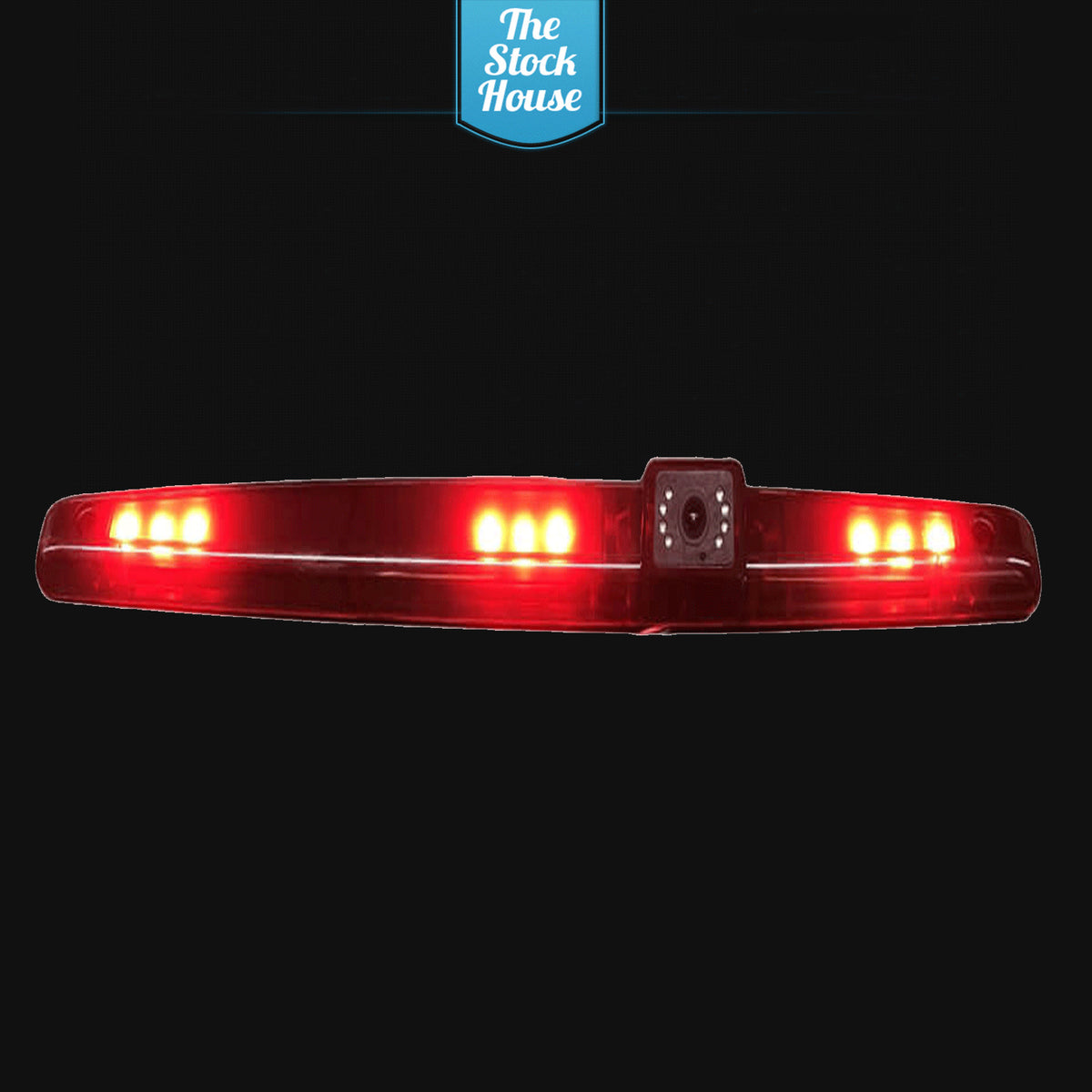

Third Backup lR reverse rear view light brake Camera For any flat surface at the back of a vehicle
- Lend:1.9
- Min illumination:0Lux (LED ON)
- Image sensors: 1/3″ color HD CMOS/CCD
- System: NTSC/PAL (TV system)
- Perfect IR night vision, 8 pcs IR LED
- Night Vision distance:30ft
- Minimum illumination. <0.5 BLC: Auto
- White Balance: Auto,Video Color: Colorful
- Waterproof Class: ip68
- Effective Pixels : 756(H)*504(V)
- Pixel Resolution : 600TV lines
- Video Output: 1.0Vp-p,75
- Electronic Shutter: 1/60(NTSC)-1/10000S
- S/N ratio: Better Than 48db
- Lens Angle: 170°
- Operation Temperature: -20°C+70°C RH95%
- Storage Temperature: -40°C+100°C RH95%
- Working Power (DC): 12V/1,5
- Watt Current consumption: 90mA Max

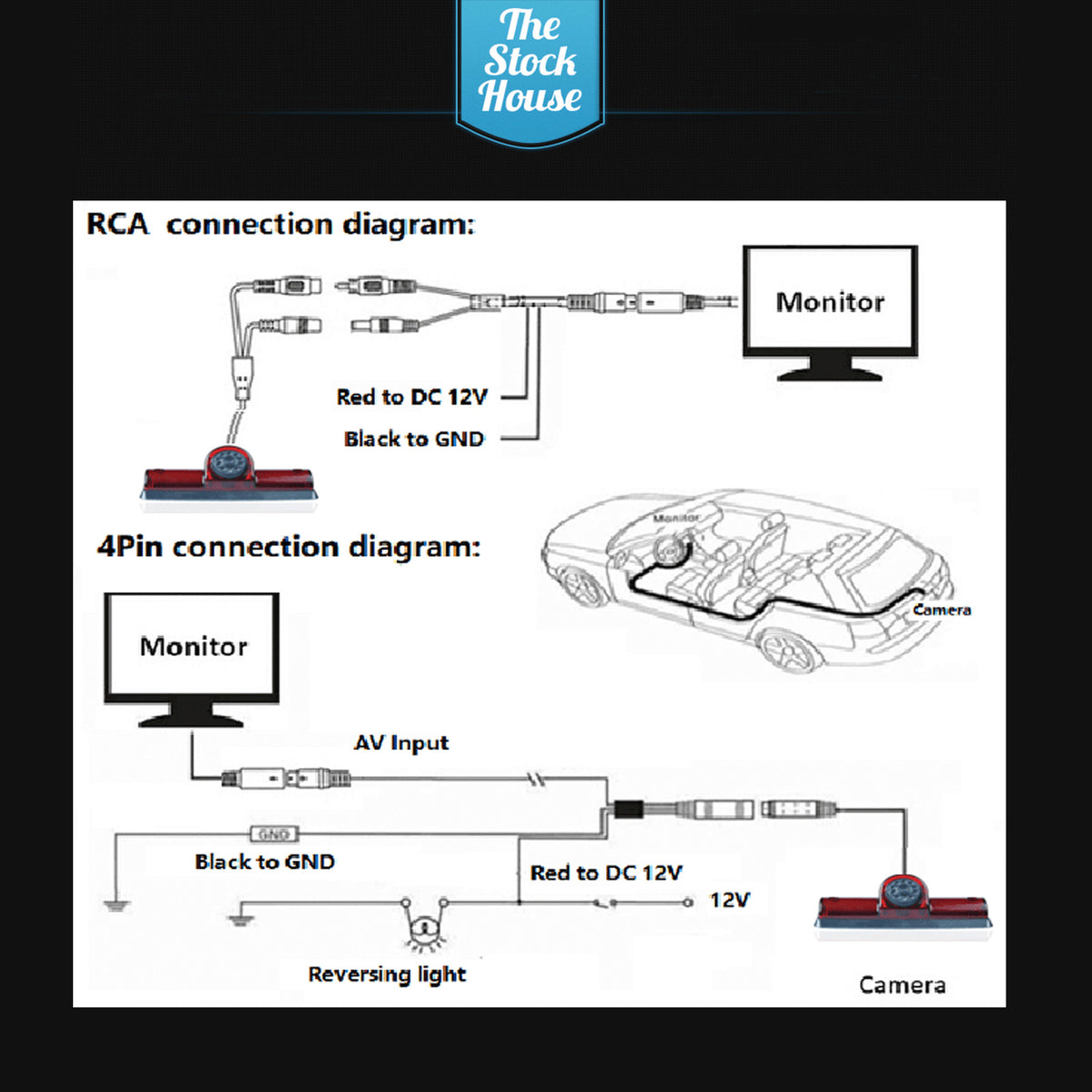

- Video cable is RCA connector

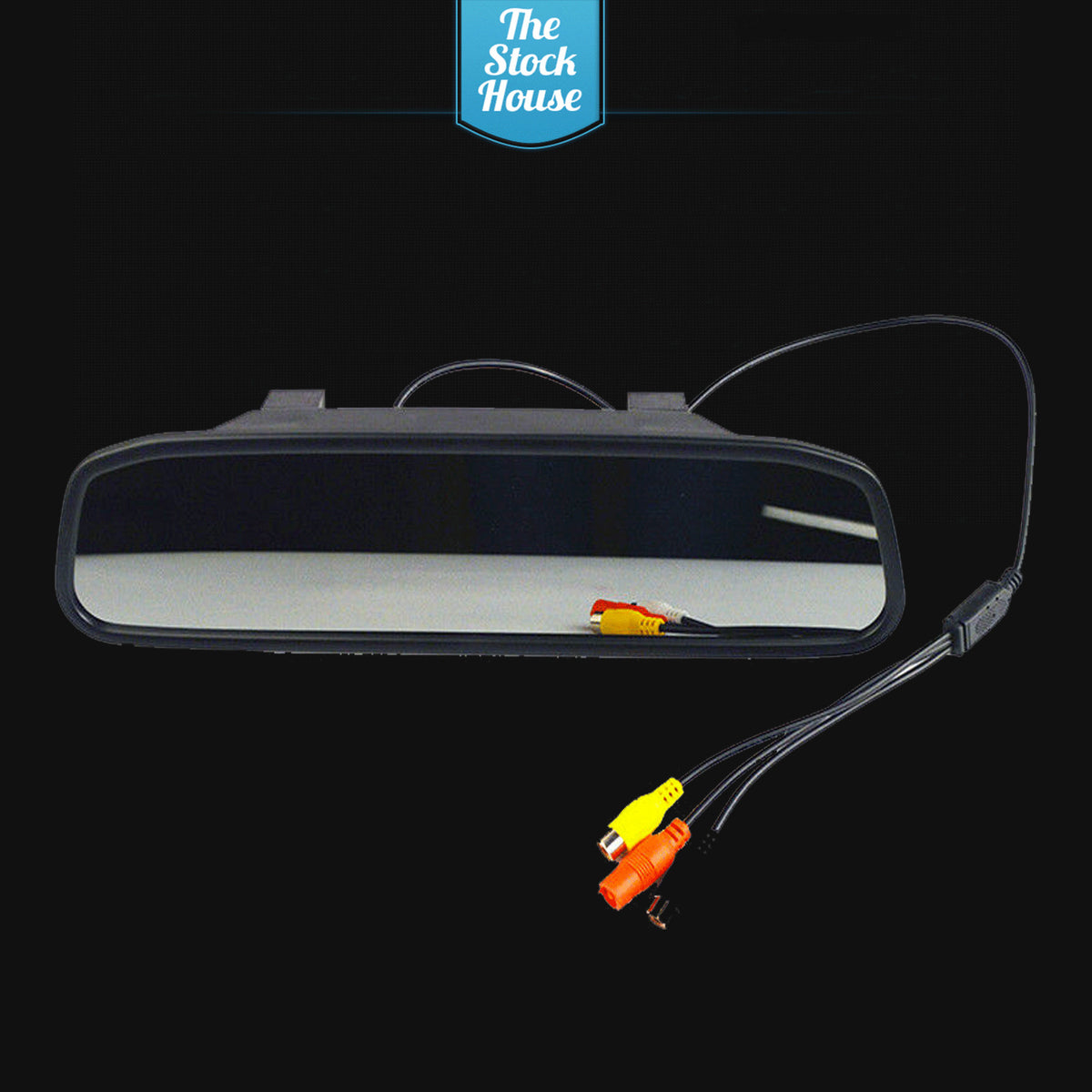

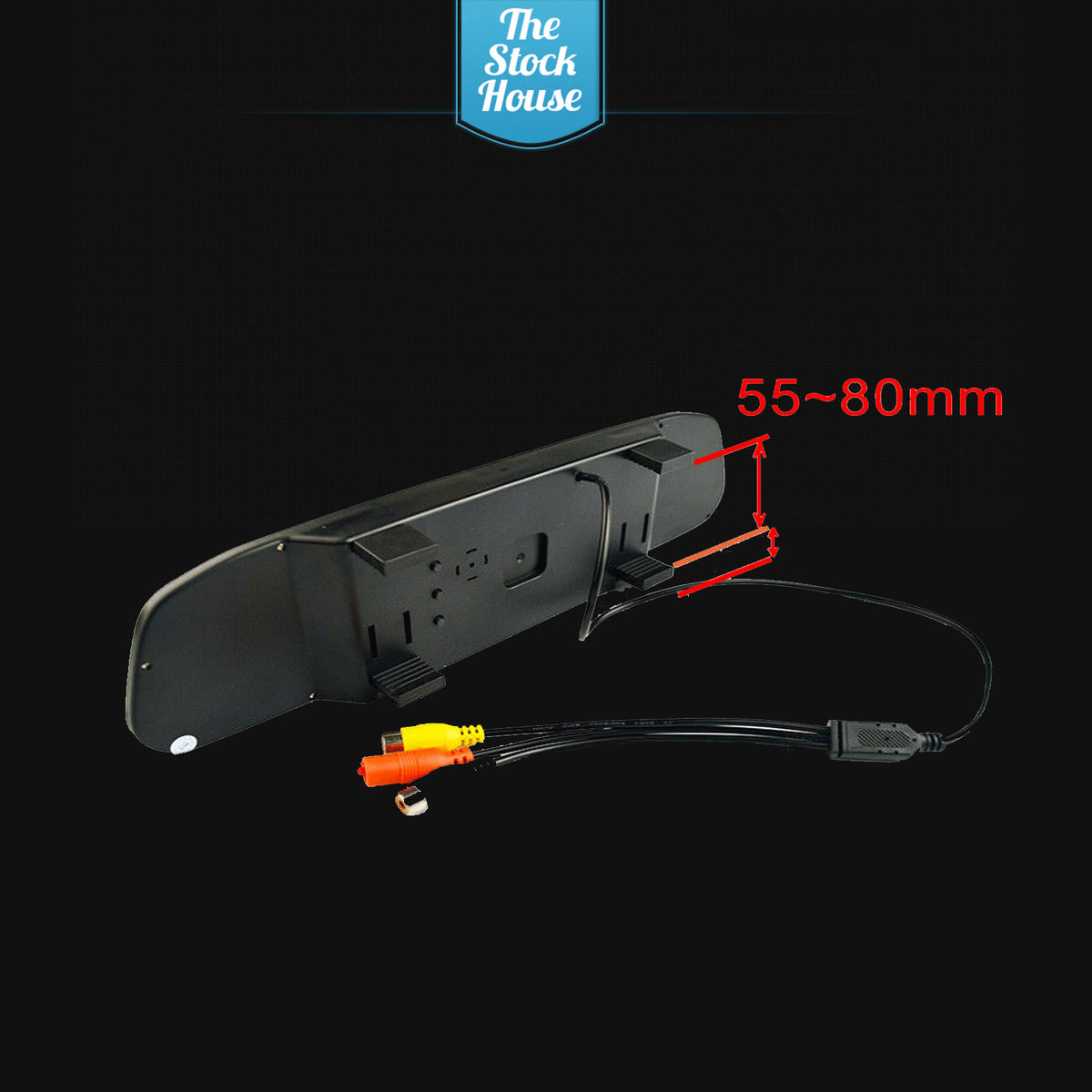

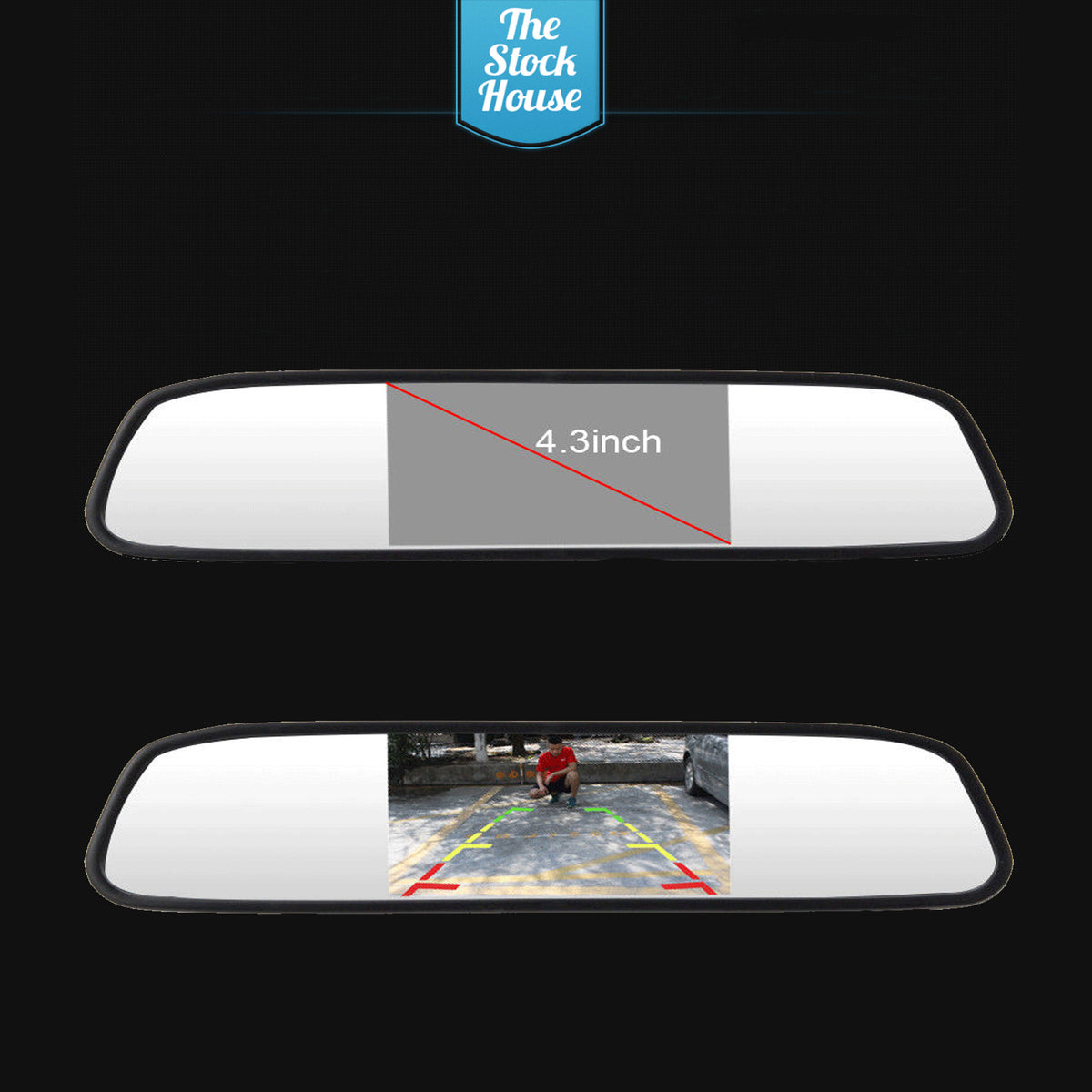

MONITOR SPECIFICATIONS
High-resolution picture.
Full color LED backlight display.

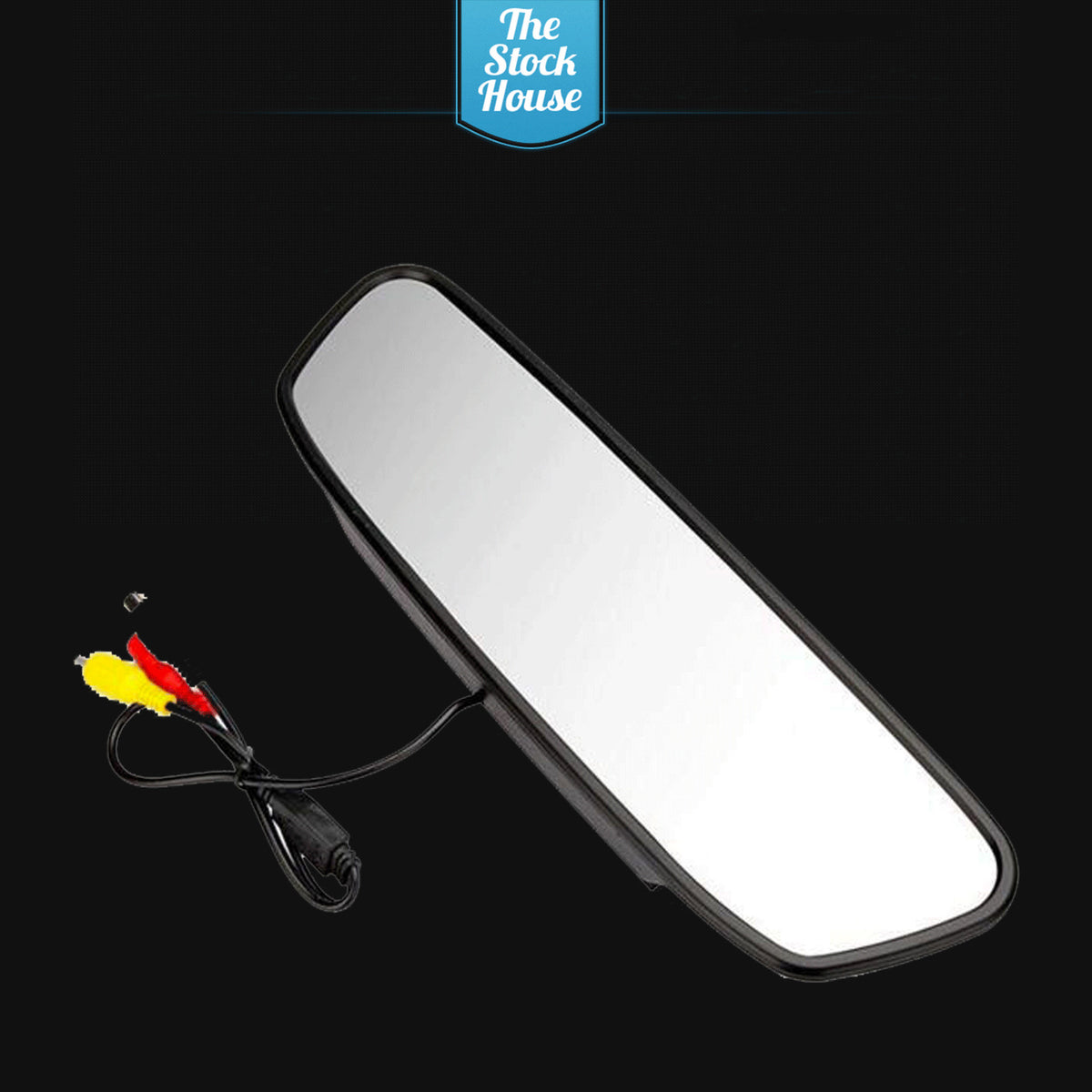

With 2 video input: White video cable connects to car rearview camera, yellow one to othervideo equipment.
Parking rearview priority: The monitor will start up automatically, and
synchronously display the video from rearview camera when you're backing your car;
the monitor will close itself after backing. Scenes will cut to rearview
camera automatically while you're backing the car and change back to the original scenes after that.
Supports Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.
Screen rotatable.
With menu buttons, Brightness/contrast/hue/saturation/language (Chinese/English/Spanish) adjustable.
Easy to install.
Low power consumption.
No Audio input or output
