WIRELESS FORD TRANSIT CUSTOM WIFI BRAKE REVERSING CAMERA & 4.3" MONITOR 14 - 19

Item description

Ford Transit Custom WIFI Brake light camera & 4.3" Monitor for 2014-2019

Please note for this system you do not have to run a cable from the front of the van to the rear. Simply connect the transmitter to the camera and receiver to the monitor and they connect using WIFI.

Saving time on installation and ideal for motorhomes or already kitted out vans.

Camera specifications

HD Night vision & Waterproof ,8 IR LEDs with light sensor for night modePlease note this camera if for the barn door style back doors and does not fit the tailgate style rear doors

1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip,image clarity without distortion

170 Viewing Angle: 170 degree visible range works great with the blind spot

Easy installation with no holes to be drilled; constructed of high grade automotive plastic

Camera Technical parameters

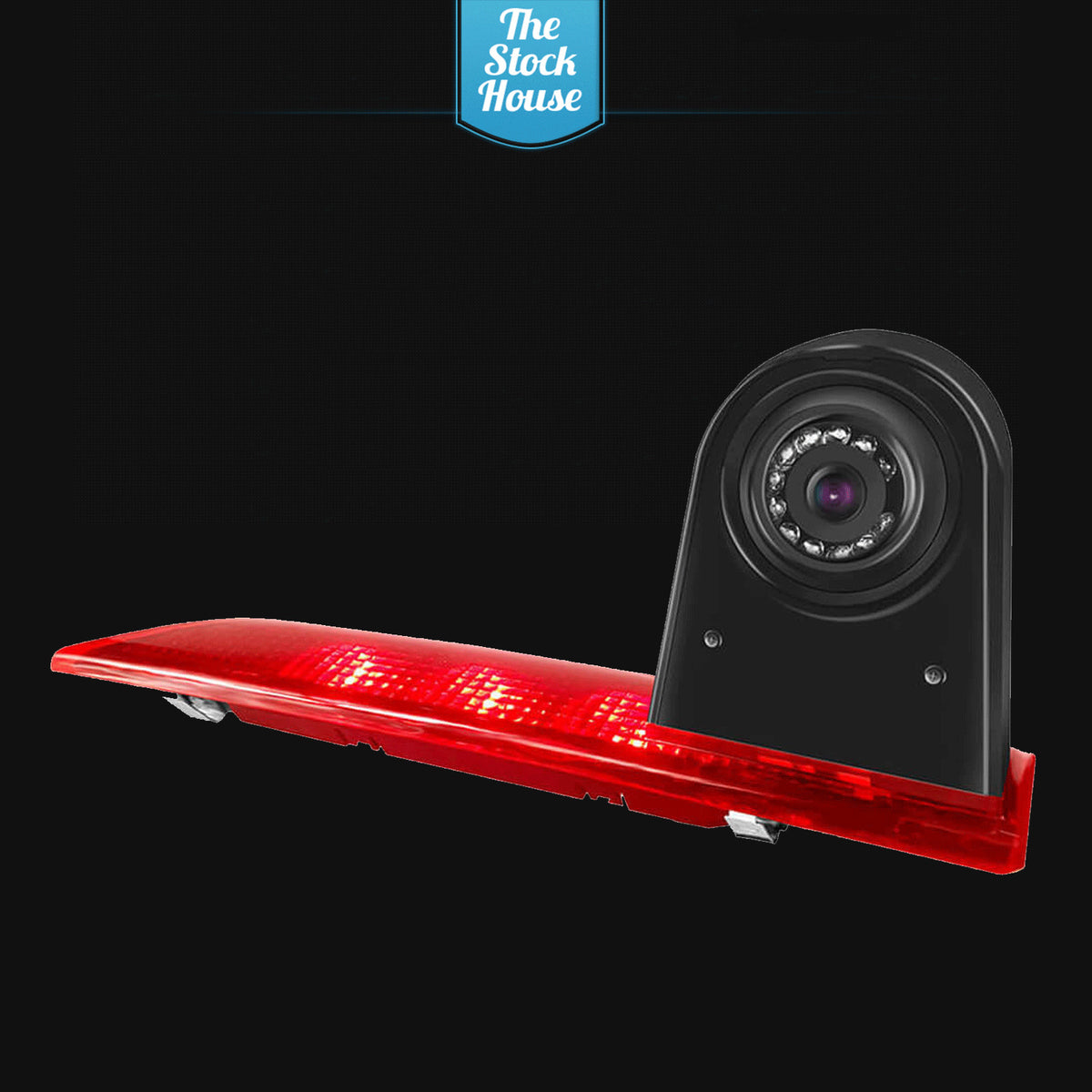

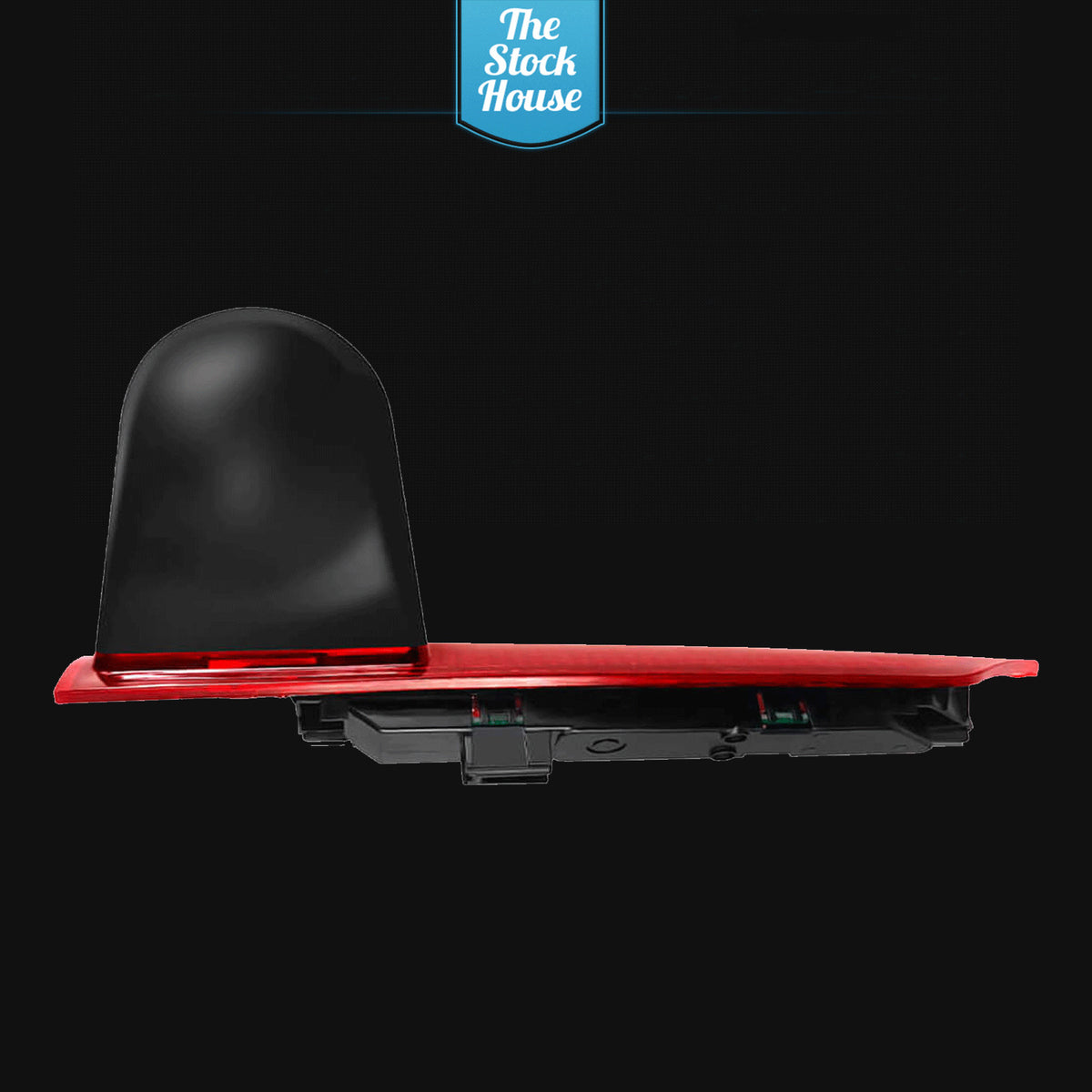

Third Backup lR reverse rear view light brake Camera For Ford Transit Custom Brakelight Camera

• Lend:1.9
• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ colour HD CMOS/CCD
• System: NTSC/PAL (TV system)

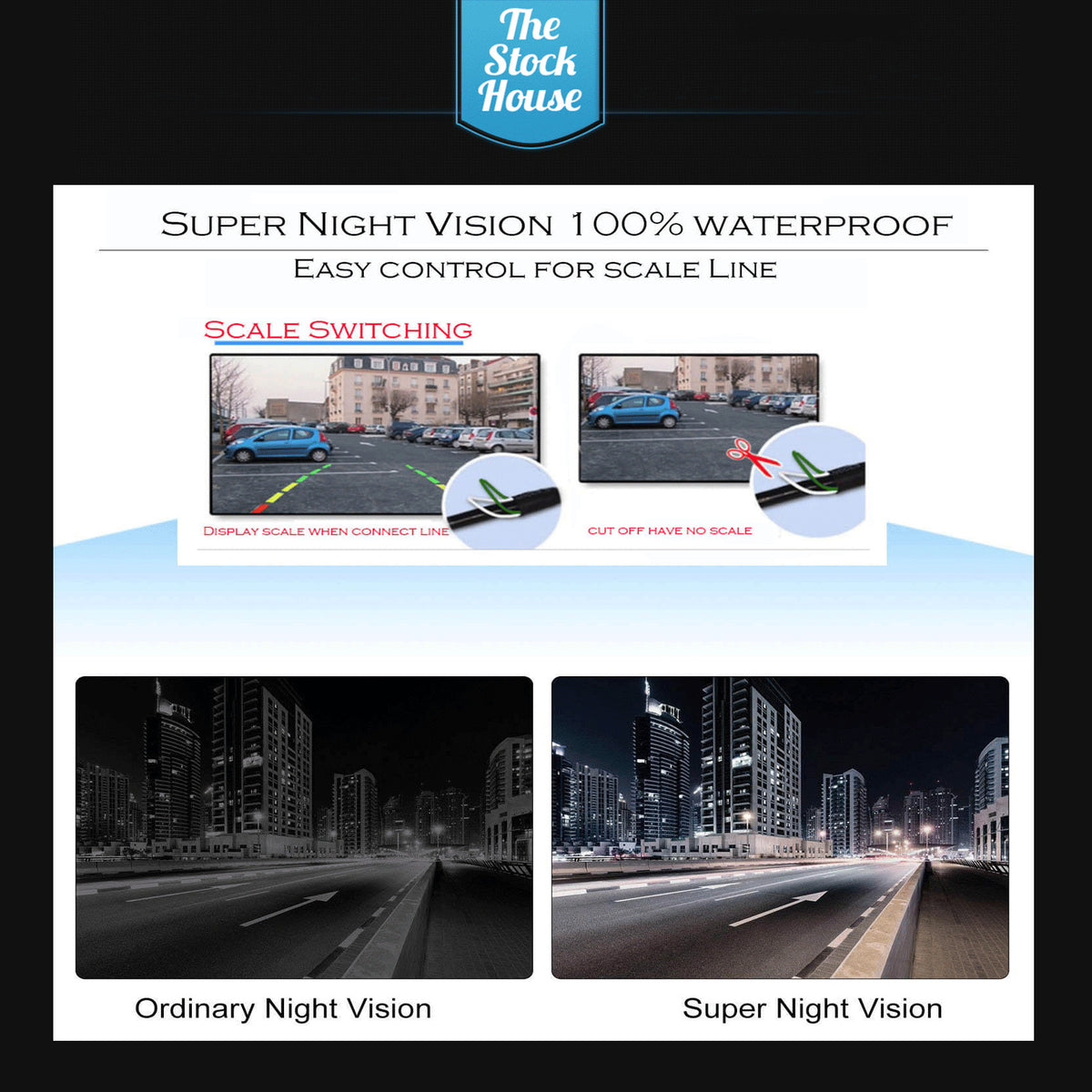

• Perfect IR night vision, 8 piece IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Colour: Colourful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector

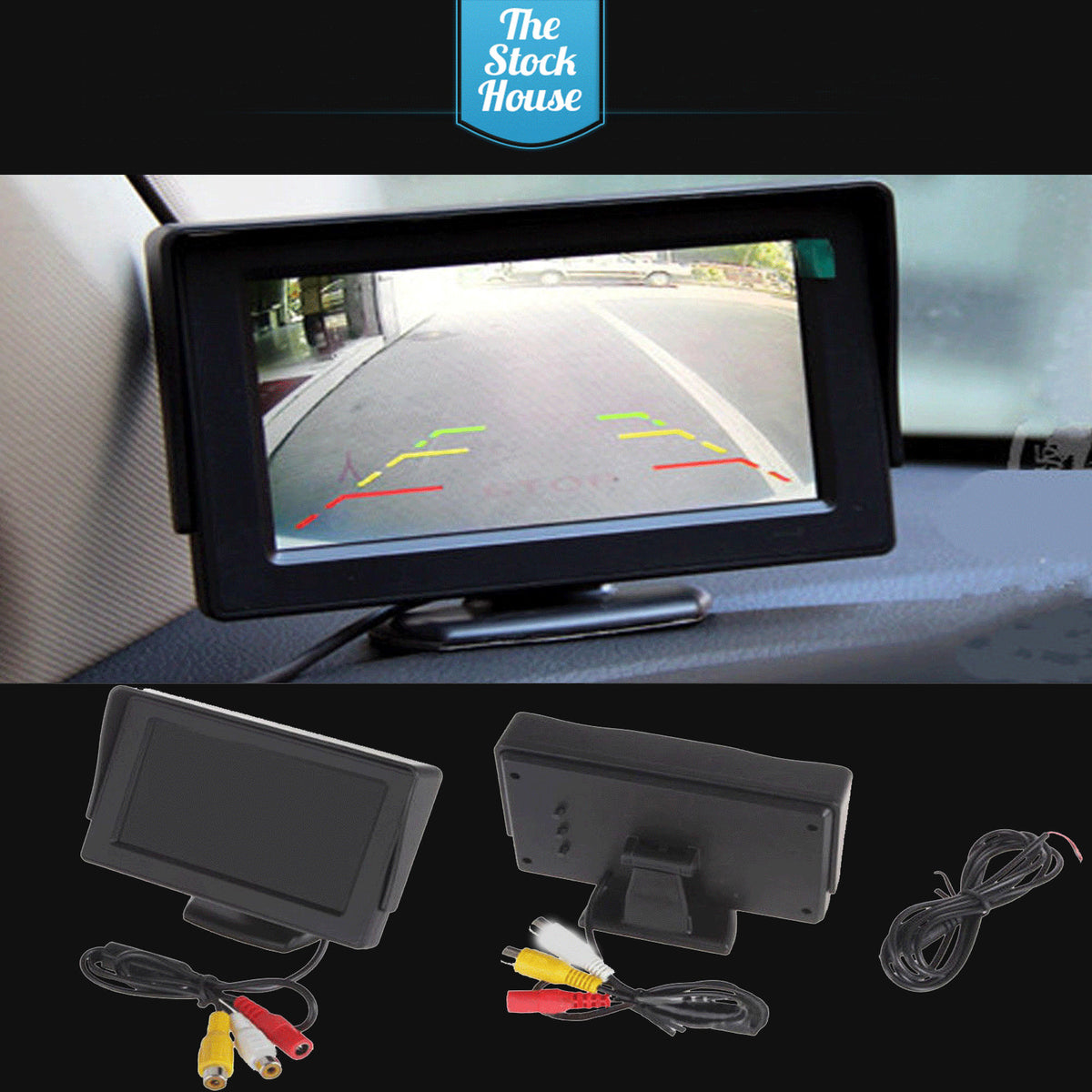

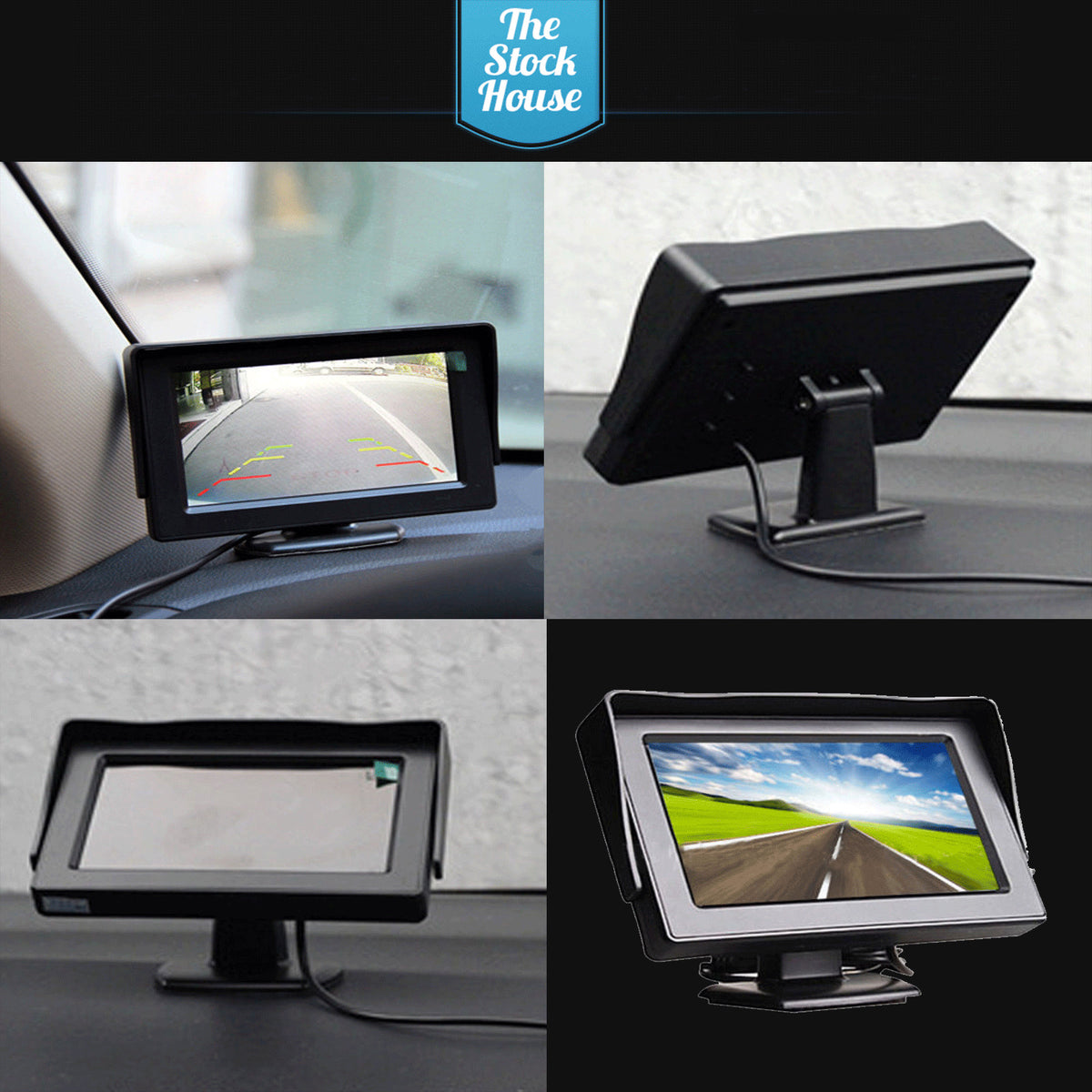

Monitor Specifications

Specification

• Screen Size: 4.3"(16:9)
• Resolution: 482*272
• Model: PAL/NTSC (Automatic throw-over)
• Power Supply: DC 9-35V
• Visible Area: 96mm x 54mm
• Power: 2W
• 2-channel video input:V1/ V2 auto switching(V1 display first )
• Note:

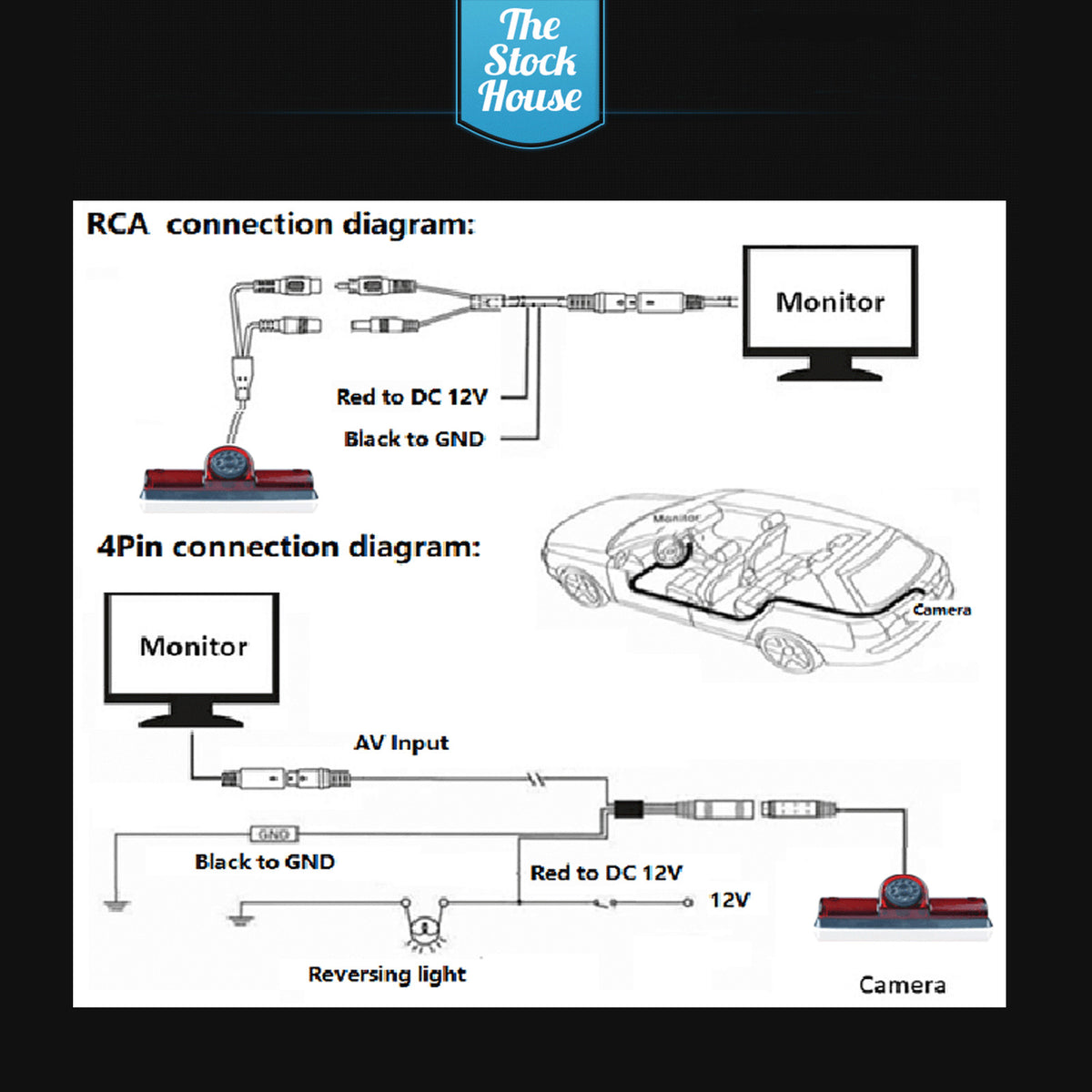

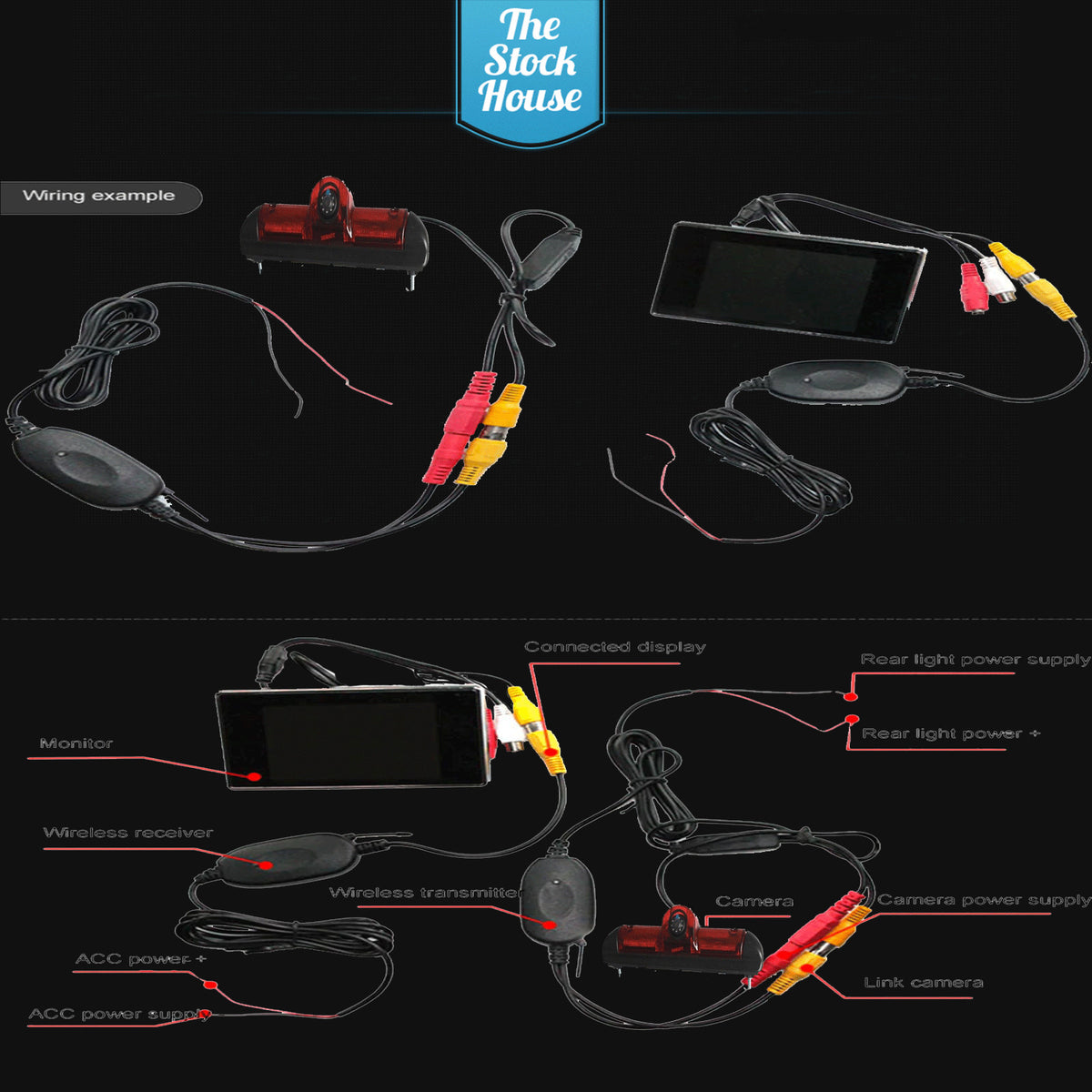

Please Connect the Rearview camera's power cable with reversing lamp, and connect camera's video cable with LCD's yellow cable (Video V1)

Then the LCD will show Camera's video when you are Reversing, and stop playing movie (auto switching)

Features

Brand New and high quality

Fit Most RC models, car Reversing camera, car DVD player,CCTV monitoring and debugging

Simple to install

Swivel function

Full colour display

• Warm tips:
• Specific application methods, functions and features of three plugs:
• Two-way video inputs, a black screen when no signal
• Can connect the reversing system

3. Adjustable in the menu: Contrast, Brightness, Chroma, Mode (16:9/4:3), etc.

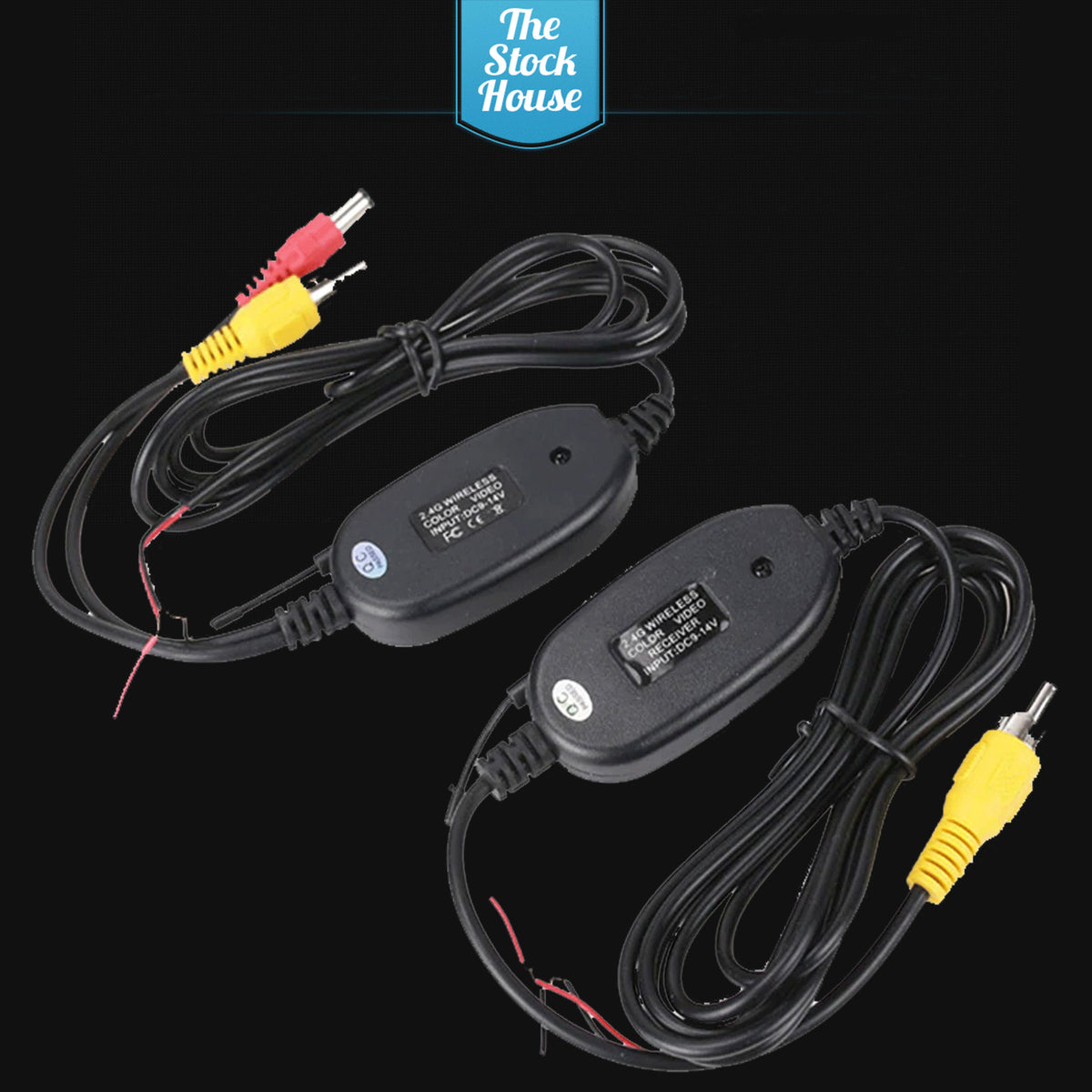

2.4 GHz wireless wiring kit specifications

Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)

• Work Range:Up to about 80m(Hollowness)
• Connects to rear-view camera and front video screen
• Power: DC 12VTransmitter/Receiver Cable Length:1.5m

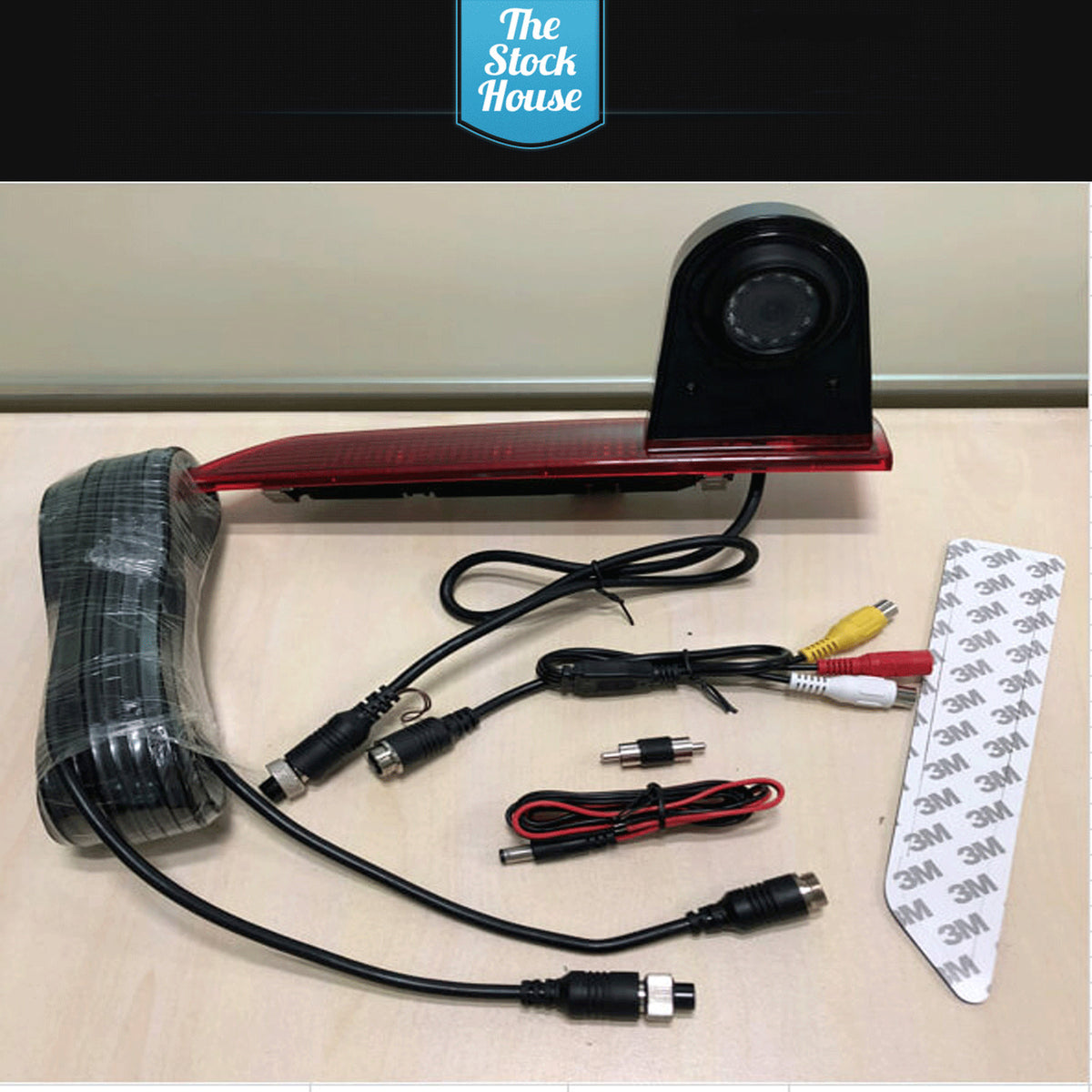

Package Included

1 x Brake light

1 x 4.3" TFT LCD Monitor

1 x Power Cable

1 x Wifi wireless wiring kit
