Item description

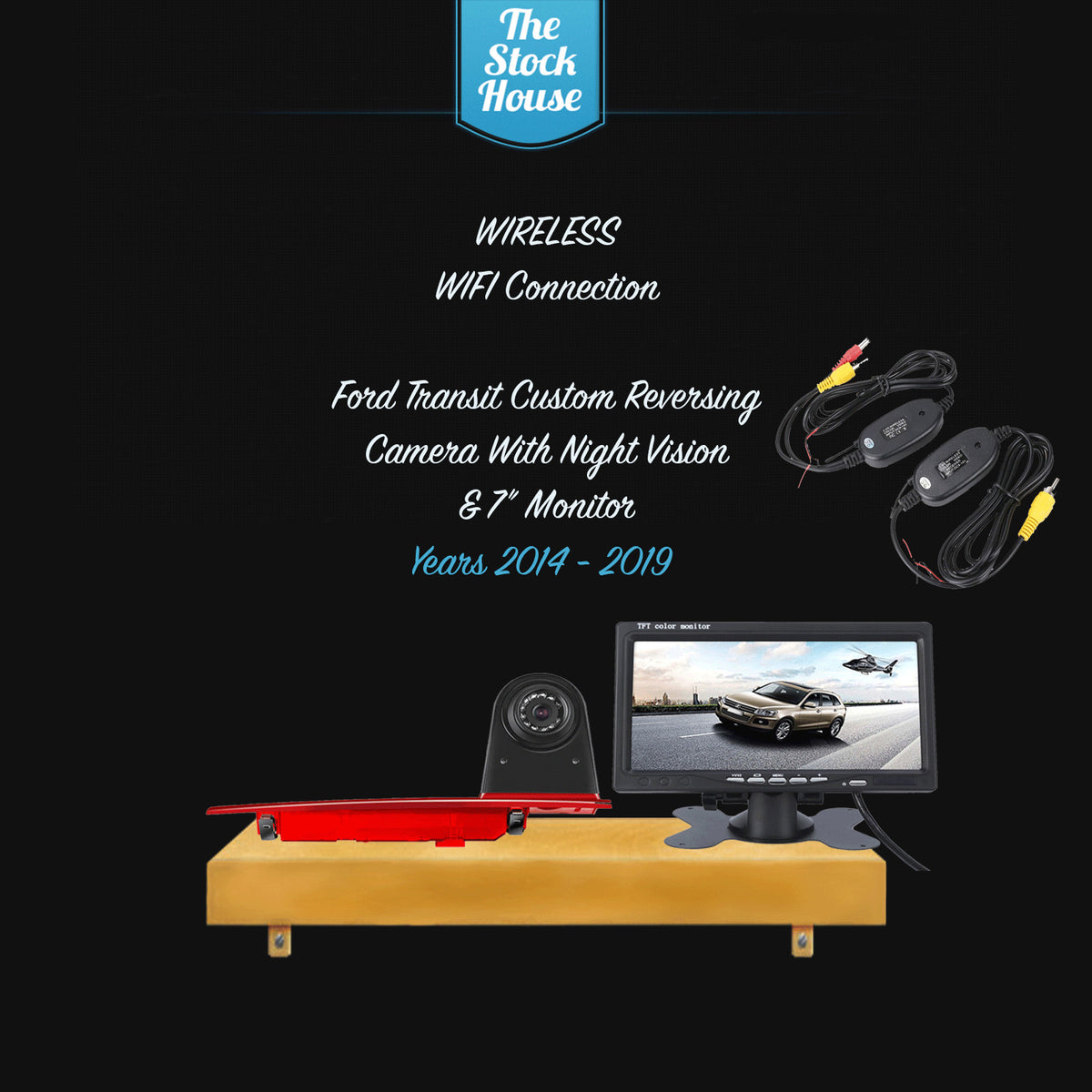

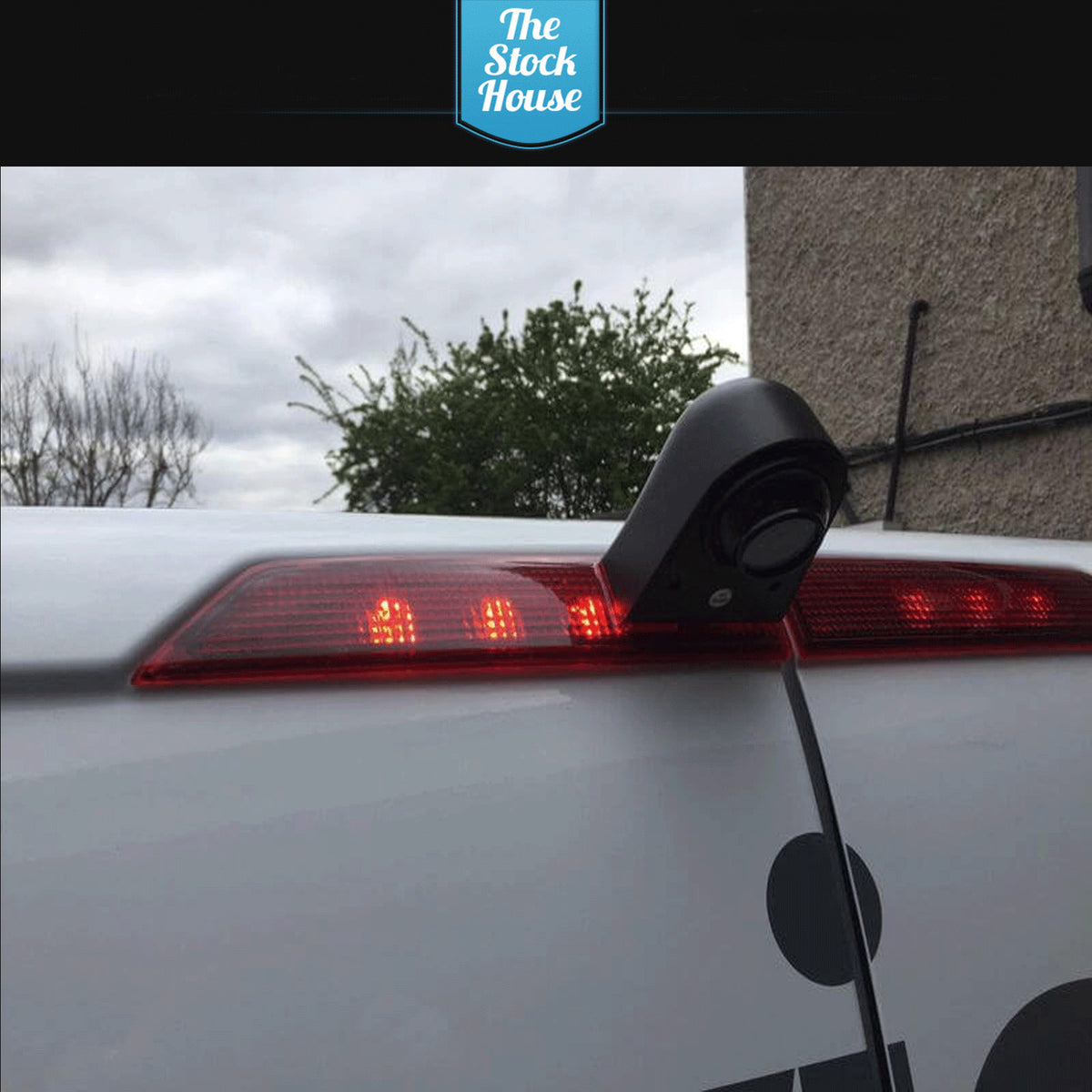

Ford Transit Custom Brake light Camera brake light camera for 2014-2019

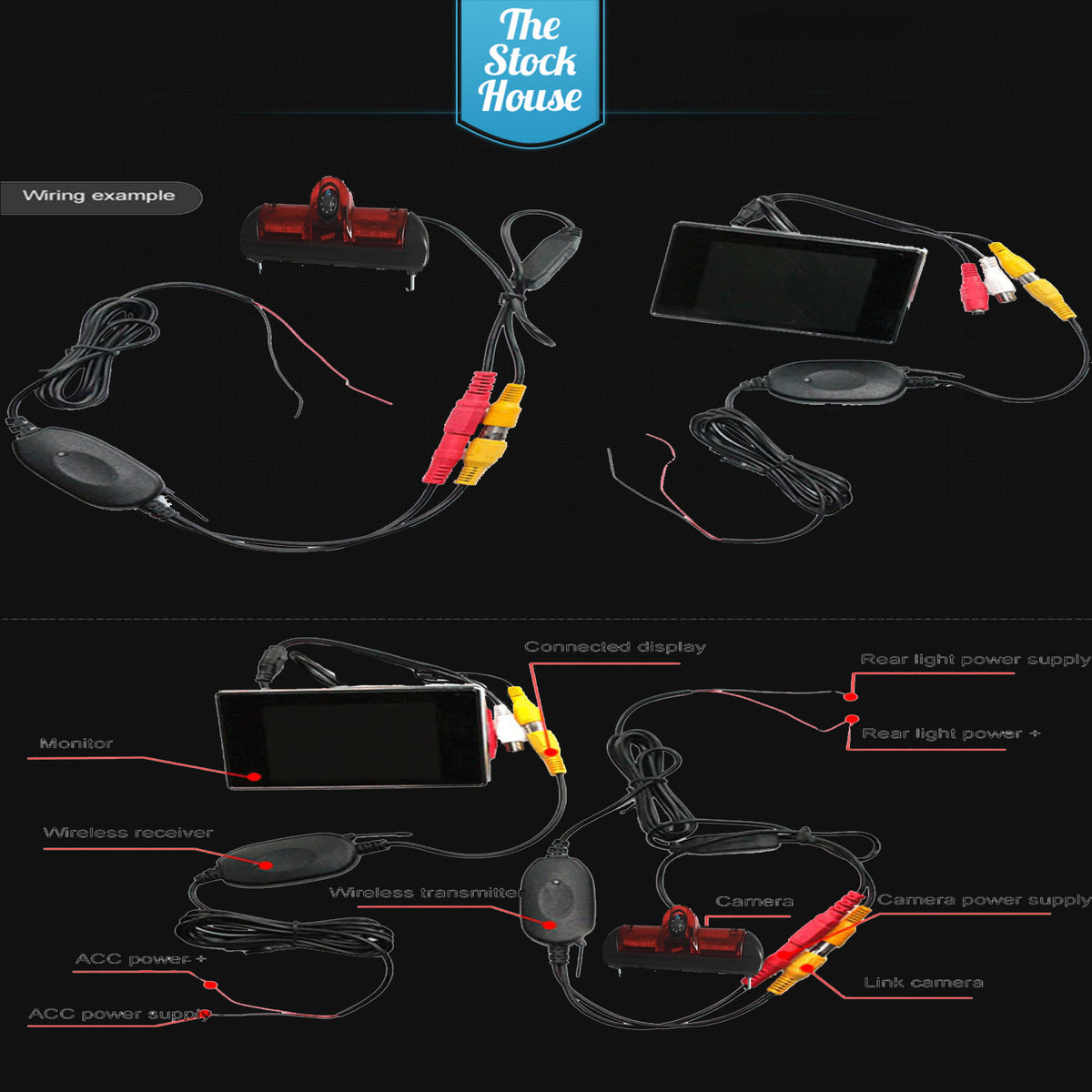

Please note for this system you do not have to run a cable from the front of the van to the rear. Simply connect the transmitter to the camera and receiver to the monitor and they connect using WIFI.
Saving time on installation and ideal for motorhomes or already kitted out vans.

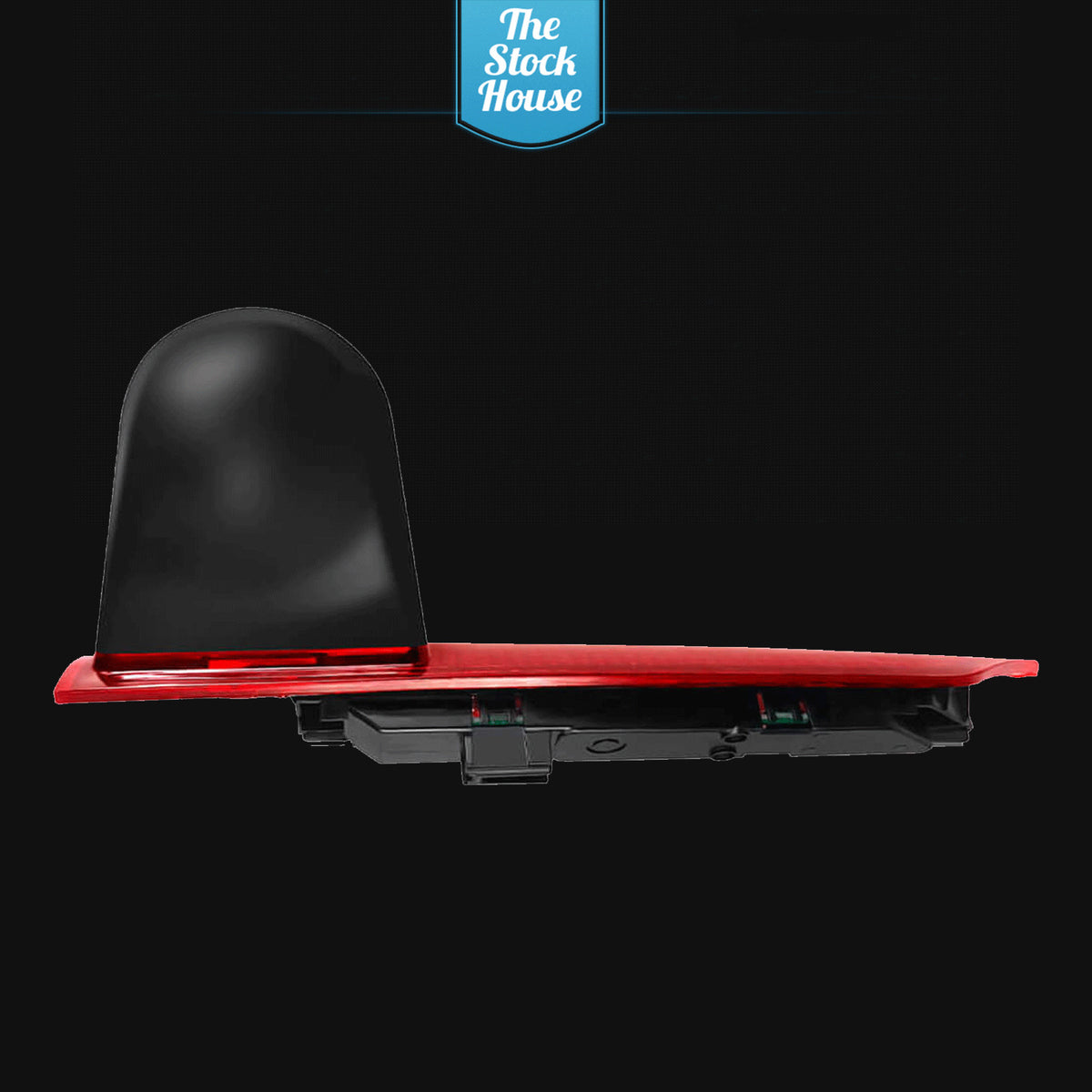

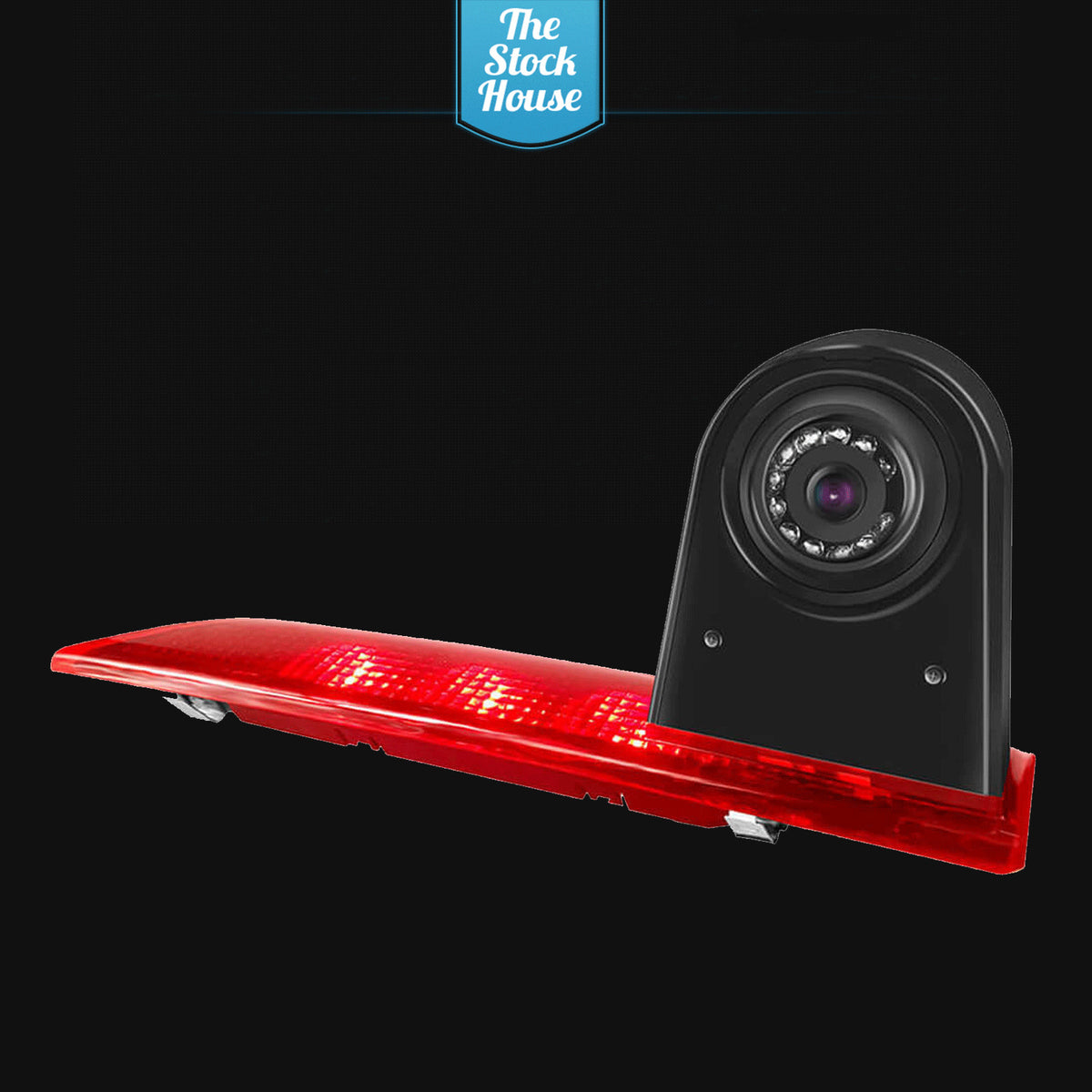

CAMERA SPECIFICATIONS
Please note this camera if for the barn door style back doors and does not fit the tailgate style rear doors
HD Night vision & Waterproof ,8 IR LEDs with light sensor for night mode
1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip,image clarity without distortion
170 Viewing Angle: 170 degree visible range works great with the blind spot
Easy installation with no holes to be drilled; constructed of high grade automotive plastic
Technical parameters
Third Backup lR reverse rear view light brake Camera For Ford Transit Custom Brakelight Camera
- Lend:1.9
- Min illumination:0Lux (LED ON)
- Image sensors: 1/3″ color HD CMOS/CCD
- System: NTSC/PAL (TV system)
- Perfect IR night vision, 8 pcs IR LED
- Night Vision distance:30ft
- Minimum illumination. <0.5 BLC: Auto
- White Balance: Auto,Video Color: Colorful
- Waterproof Class: ip68
- Effective Pixels : 756(H)*504(V)
- Pixel Resolution : 600TV lines
- Video Output: 1.0Vp-p,75
- Electronic Shutter: 1/60(NTSC)-1/10000S
- S/N ratio: Better Than 48db
- Lens Angle: 170°
- Operation Temperature: -20°C+70°C RH95%
- Storage Temperature: -40°C+100°C RH95%
- Working Power (DC): 12V/1,5
- Watt Current consumption: 90mA Max

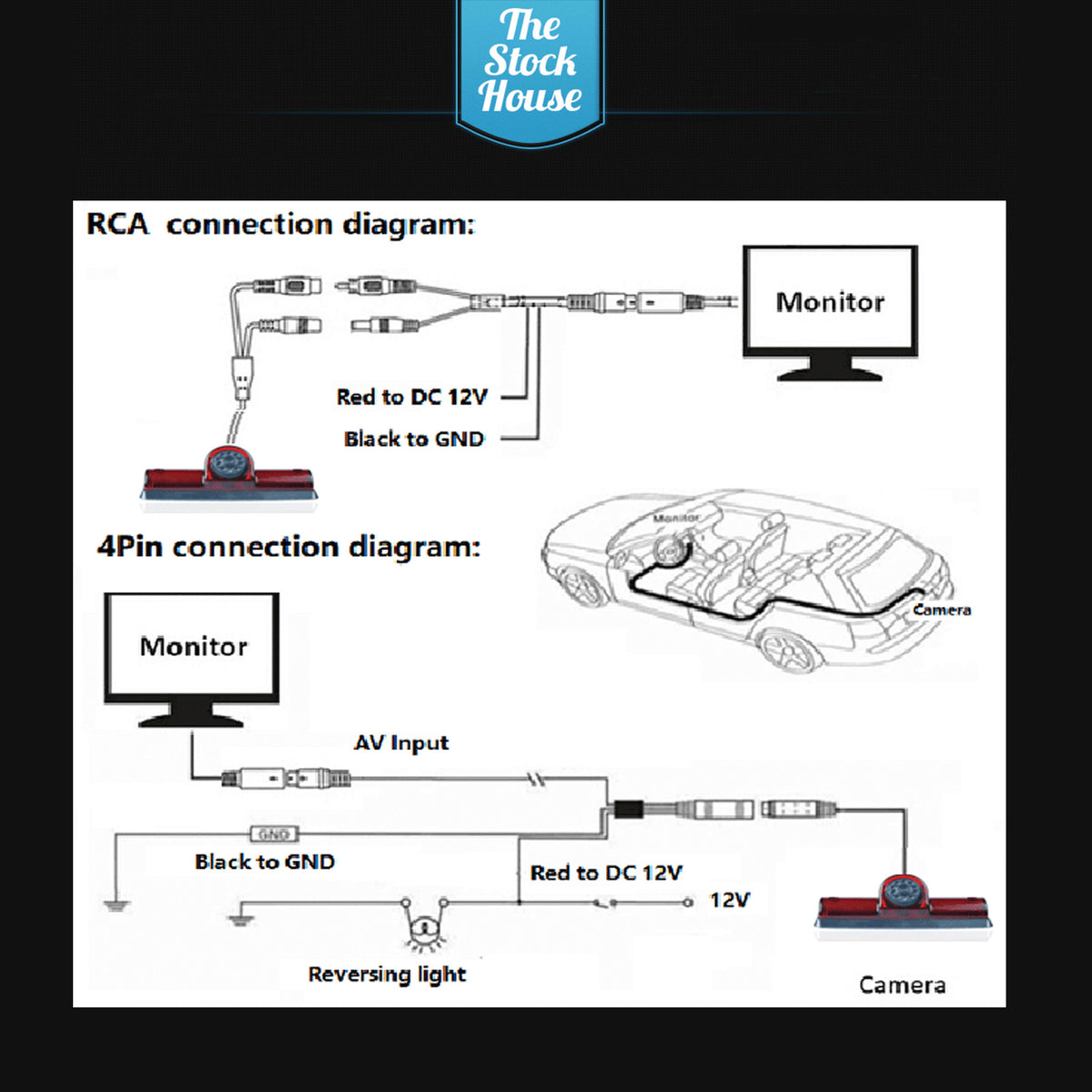

- Video cable is RCA connector

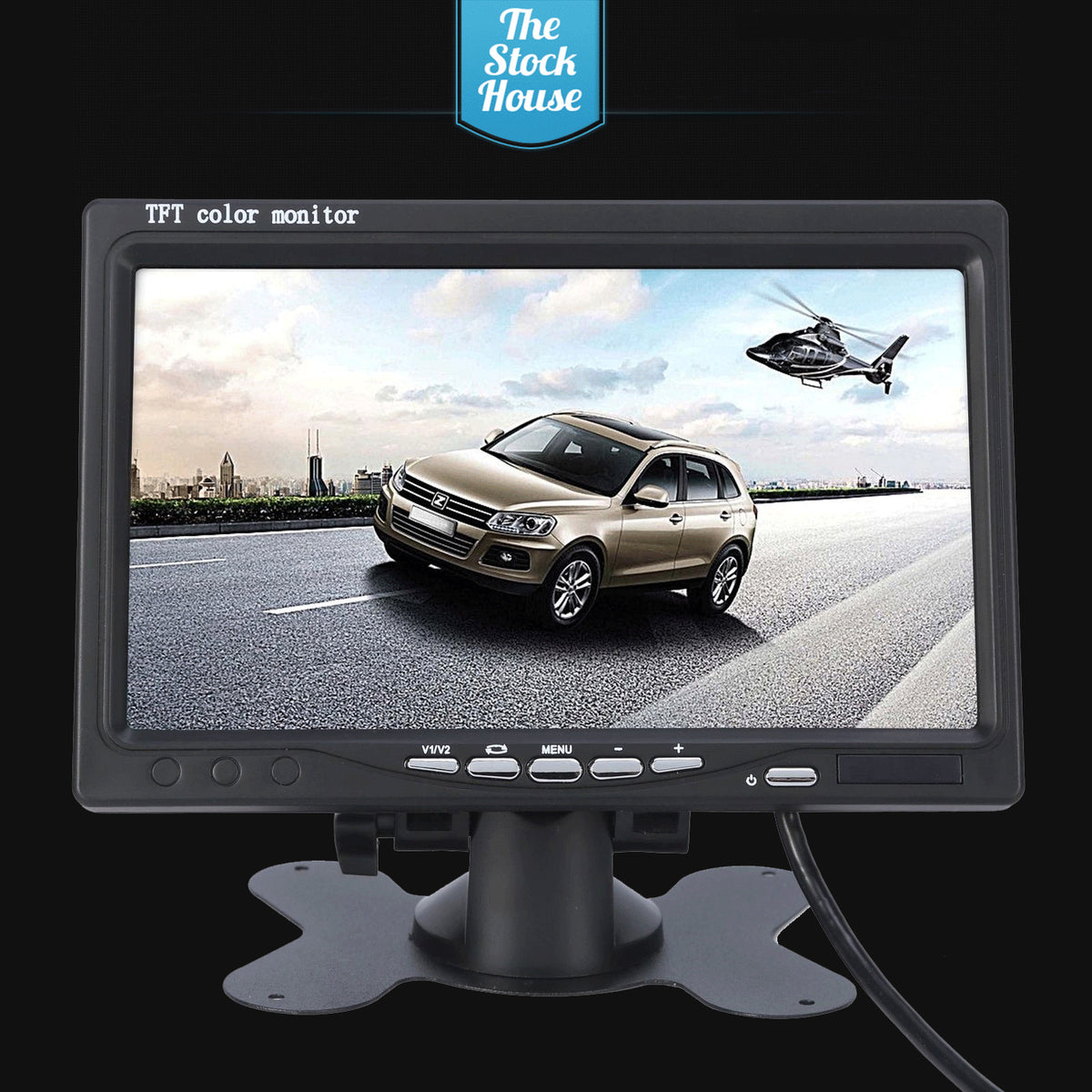

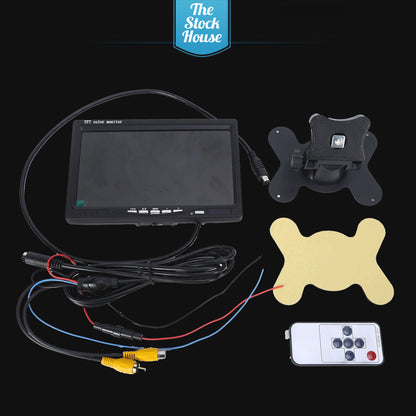

MONITOR SPECIFICATIONS
Features
Available for VCD/DVD/Camera
2 channels video input, full colour display. auto white balance
Automatic back sight function for car backing
Can easily adjust the camera installation angle in multi-level
Screen Size:7 inchSpecifications
- Display Component: Colour TFT-LCD
- Number of Dots: 480W * RGB * 234H
- Contrast Ratio: 100:1
- Video Frequency: PAL/NTSC
- Power Consumption: Around 8W
- Video: Two way video input
- Housing: ABS
- Colour: Black
- Product Dimensions: 195*135*25mm (L*W*D)
- Product weight: 379g

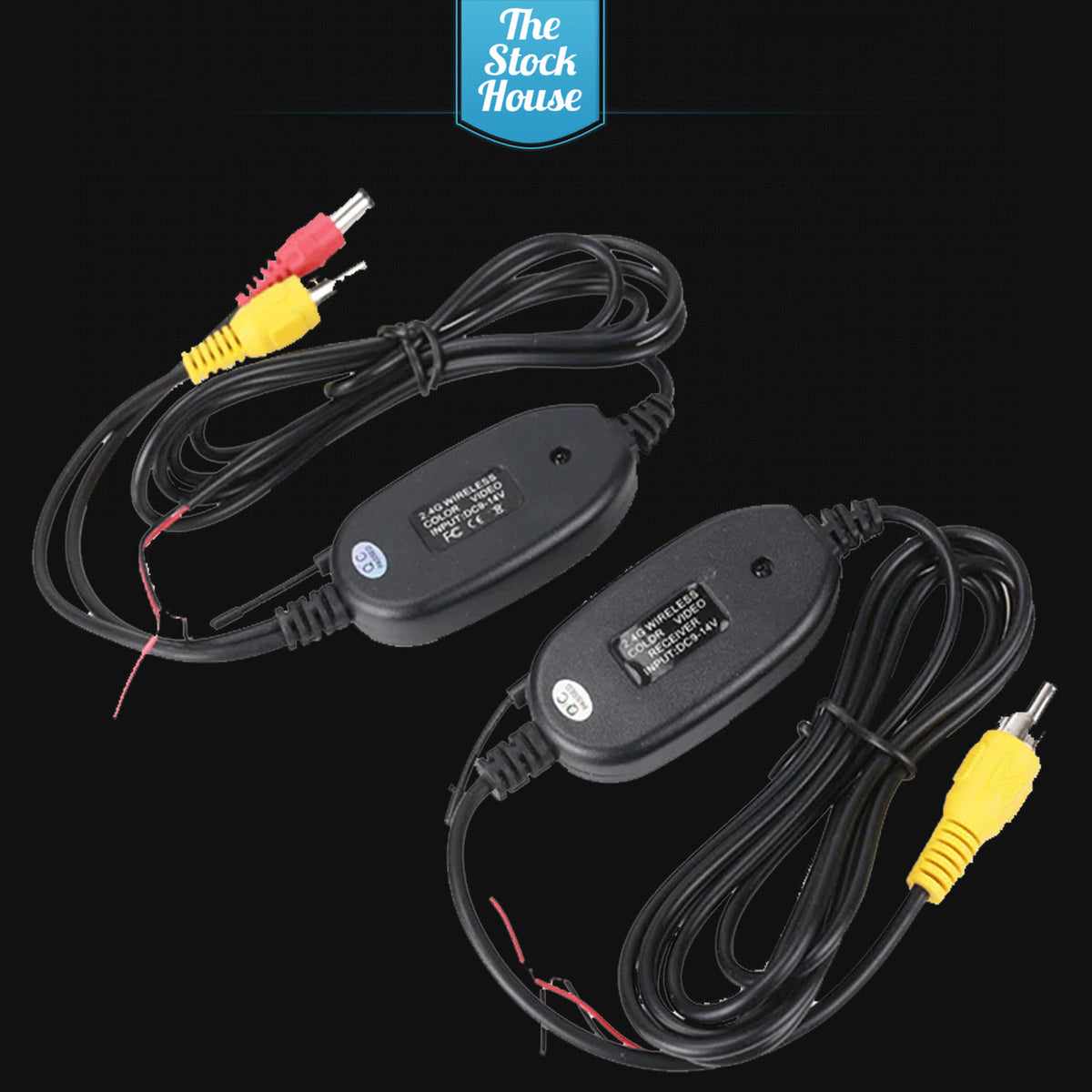

2.4 GHz wireless wiring kit specifications
Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)
- Work Range:Up to about 80m(Hollowness)
- Connects to rear-view camera and front video screen
- Power: DC 12VTransmitter/Receiver Cable Length:1.5m

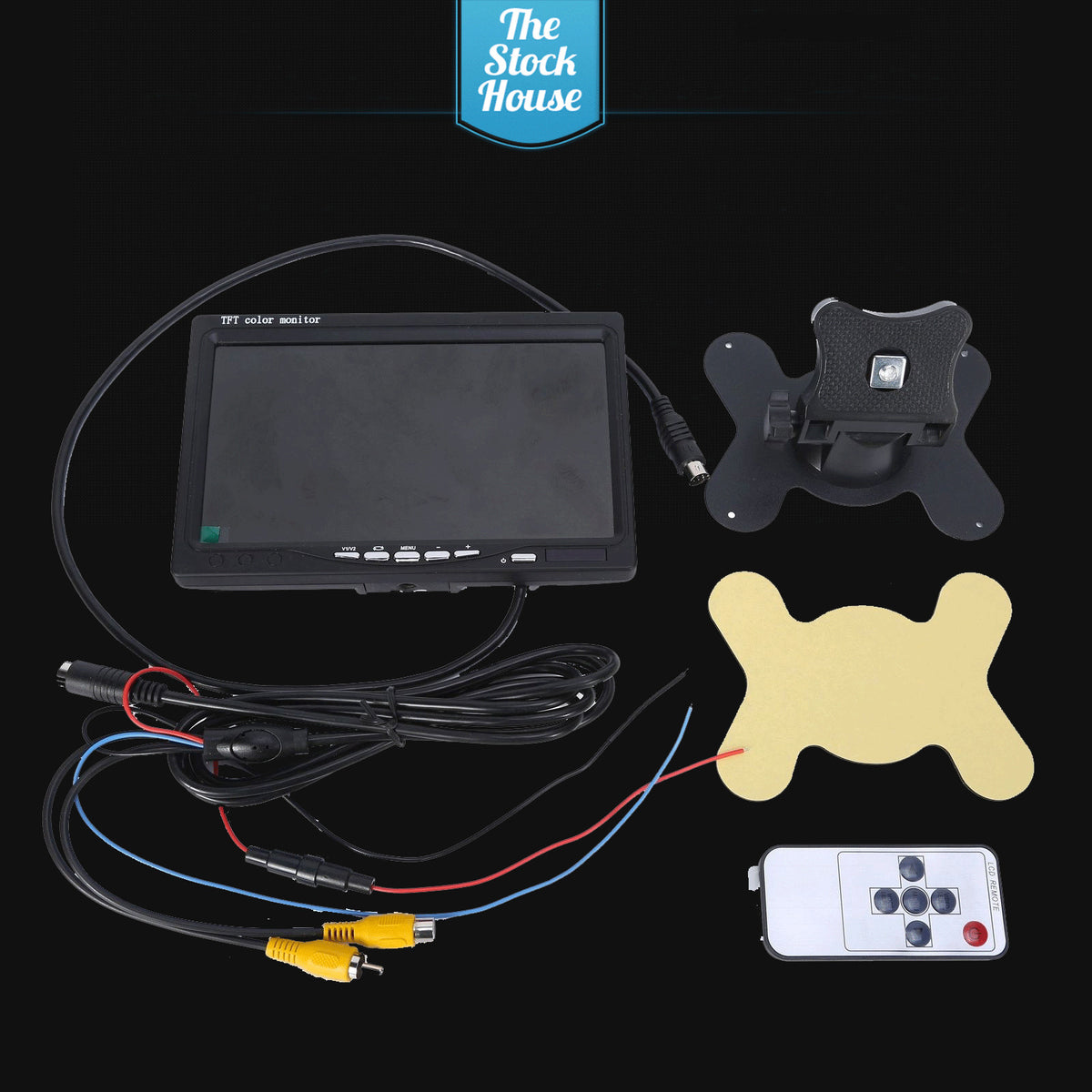

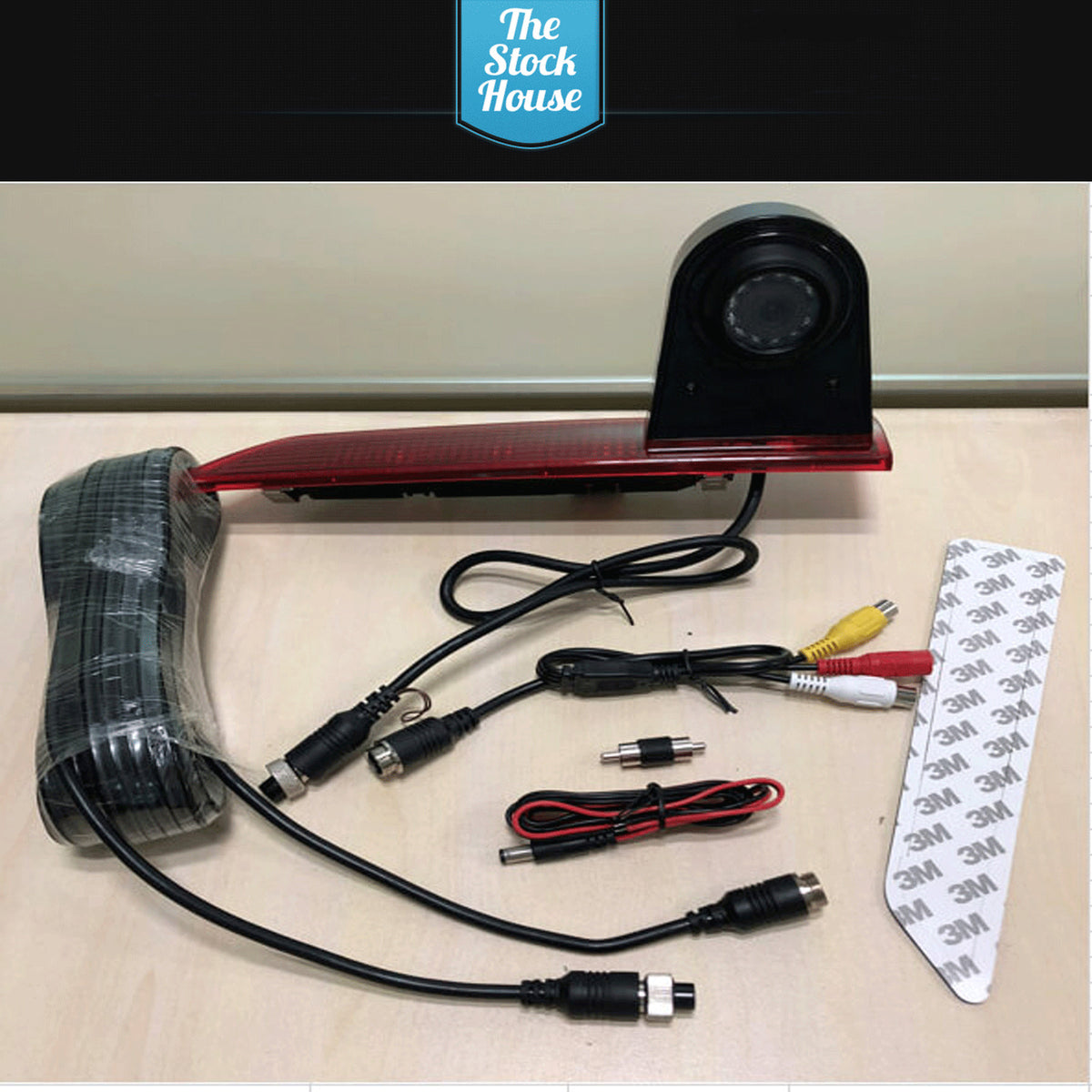

Package Include
1 x brake light Camera
1 x Wifi transmitter and receiver
1 x 7" Car Monitor
1 x Holder
1 x Bracket
1 x Video & Power Cable
1 x Remote Controller(Not included Battery)
1 x User Manual
