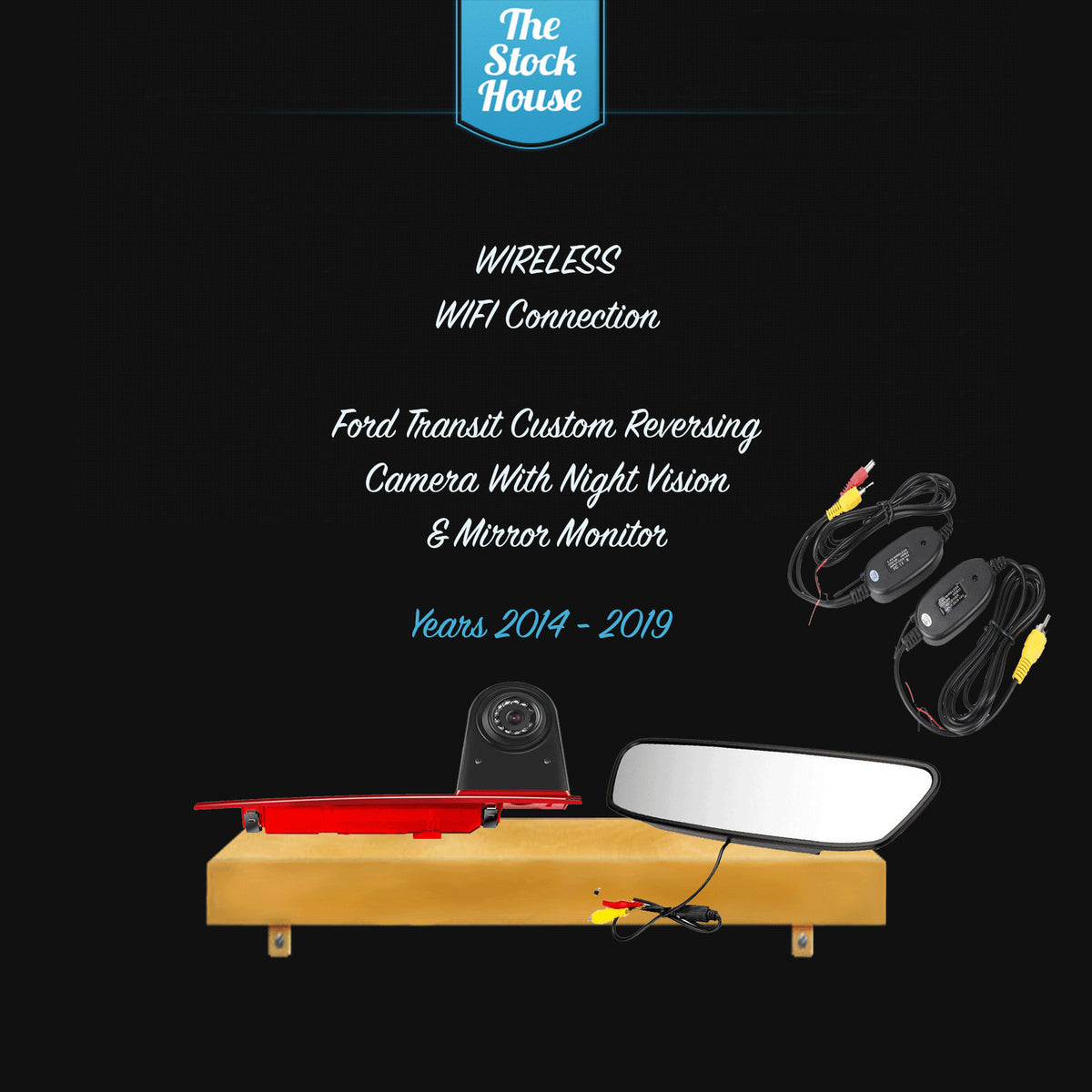

WIRELESS FORD TRANSIT CUSTOM WIFI REVERSING CAMERA & MIRROR MONITOR 14-19 BRAKE

Item description

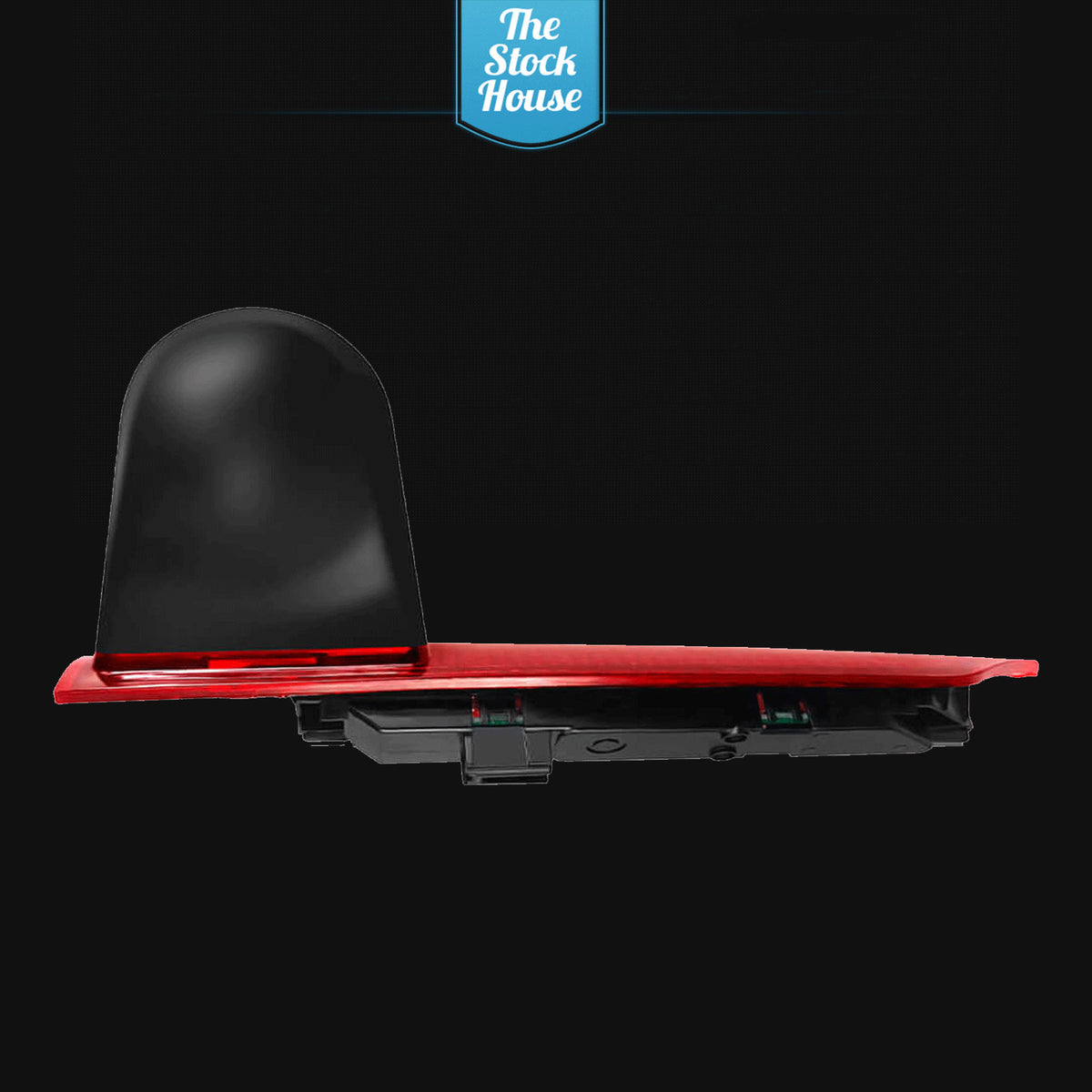

Ford Transit Custom WIFI Brake light Camera brake light camera and mirror monitor for 2014-2019

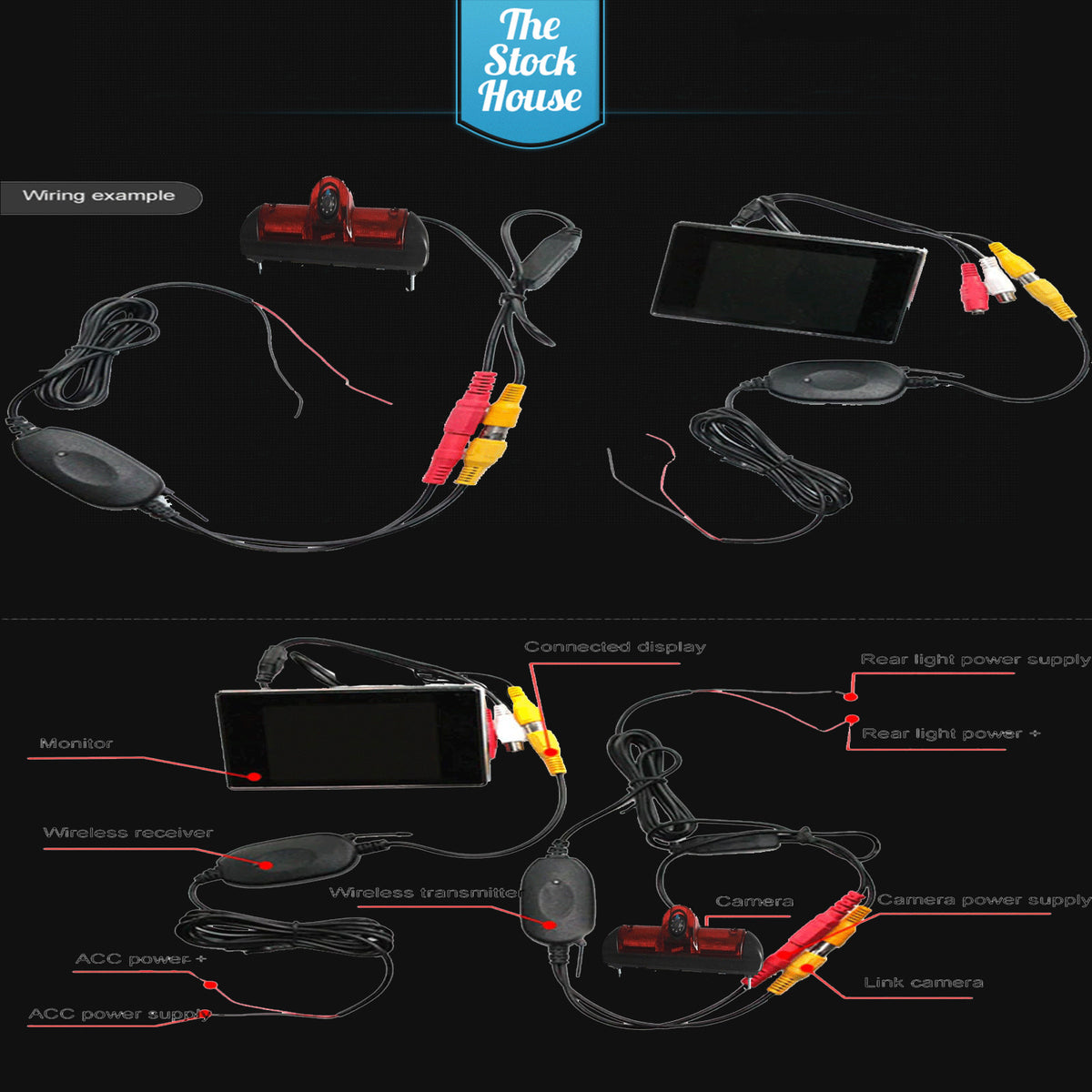

Please note for this system you do not have to run a cable from the front of the van to the rear. Simply connect the transmitter to the camera and receiver to the monitor and they connect using WIFI.

Saving time on installation and ideal for motorhomes or already kitted out vans.

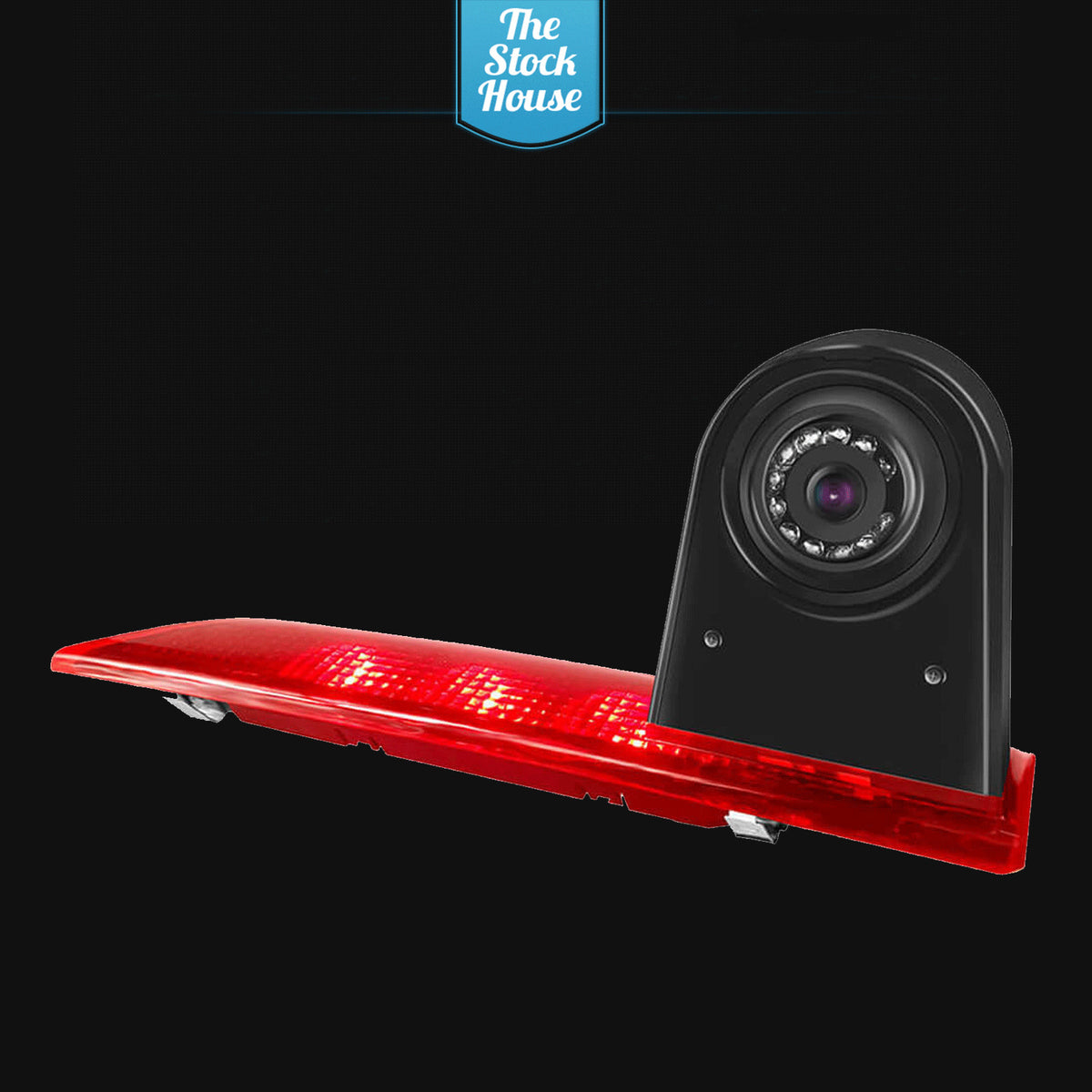

CAMERA SPECIFICATIONS

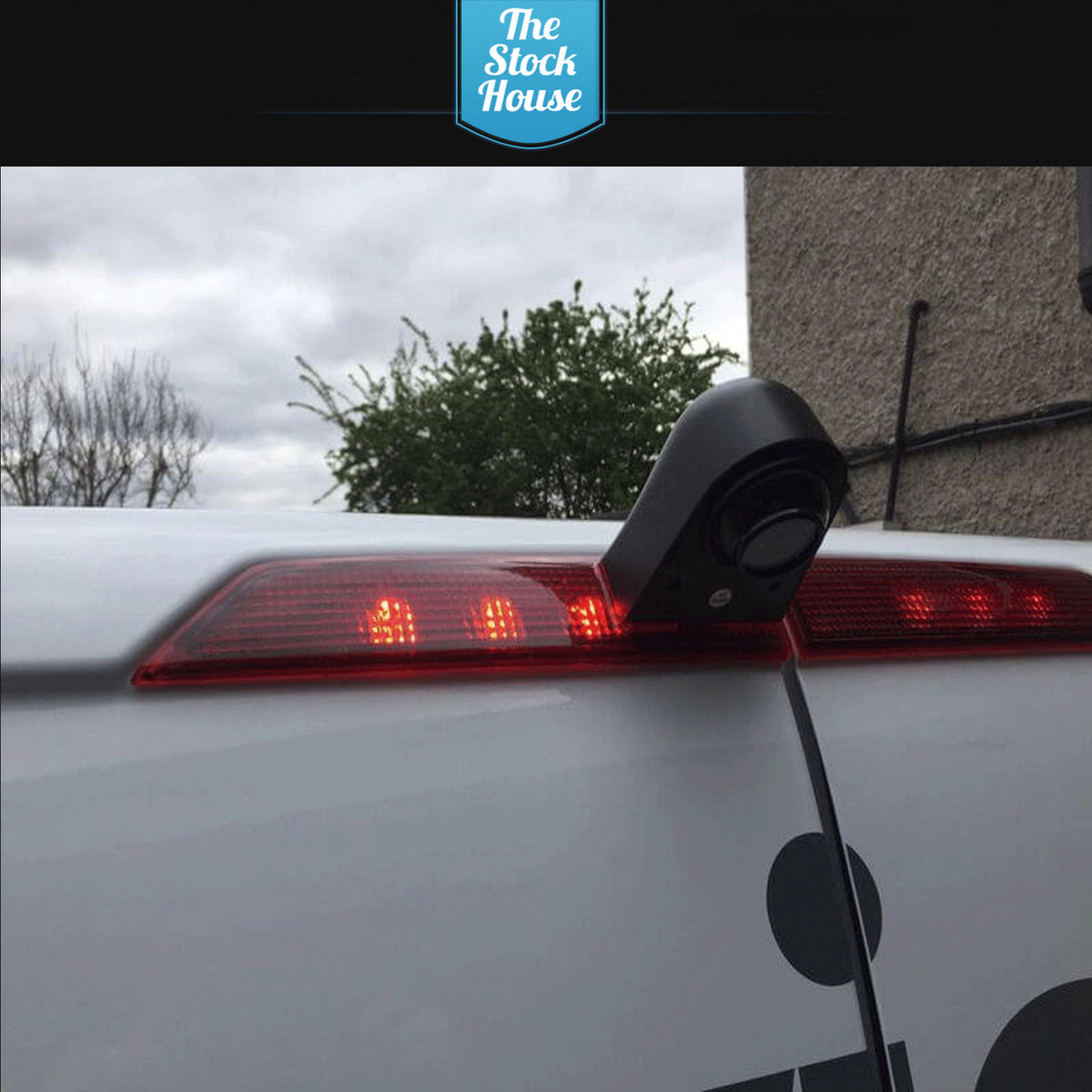

HD Night vision & Waterproof ,8 IR LEDs with light sensor for night modePlease note this camera if for the barn door style back doors and does not fit the tailgate style rear doors

1/3 CMOS/CCD Sensor. 756*504 pixels.DSP digital chip, image clarity without distortion

170 Viewing Angle: 170 degree visible range works great with the blind spot

Easy installation with no holes to be drilled; constructed of high grade automotive plastic

Technical parameters

Third Backup lR reverse rear view light brake Camera For Ford Transit Custom Brakelight Camera

• Lend:1.9
• Min illumination:0Lux (LED ON)
• Image sensors: 1/3″ color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Perfect IR night vision, 8 pcs IR LED
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Color: Colorful
• Waterproof Class: ip68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Lens Angle: 170°
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max

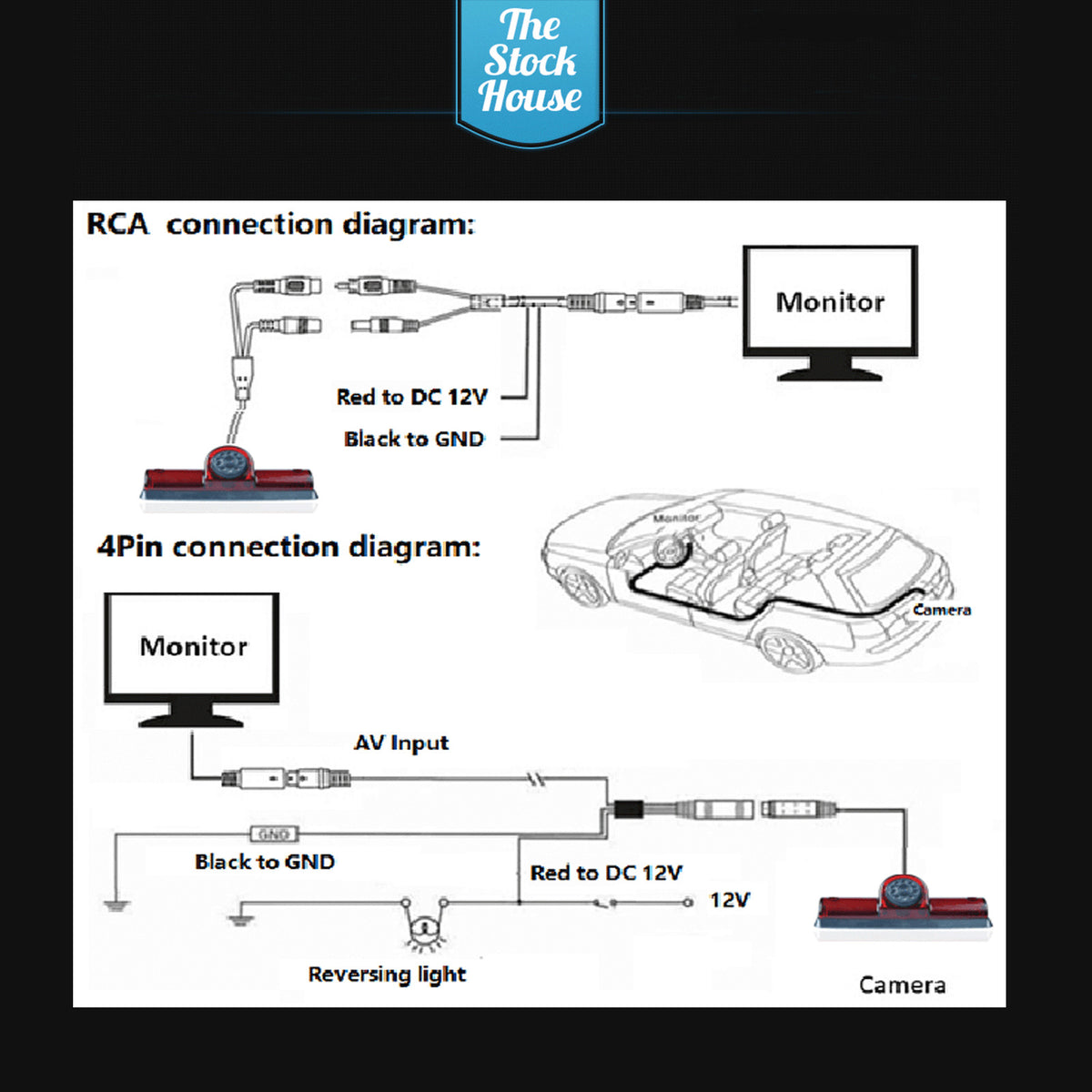

• Video cable is RCA connector

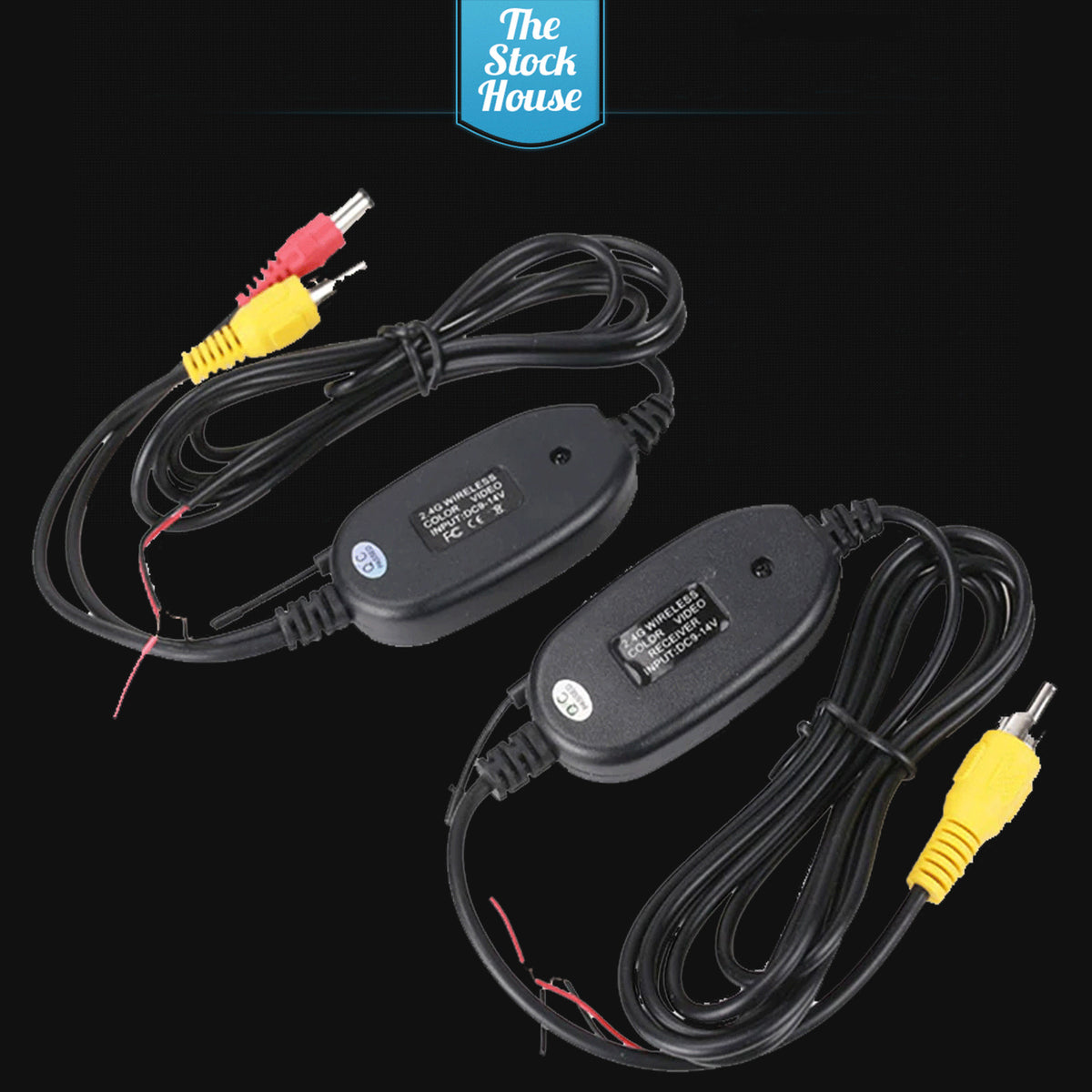

2.4 GHz wireless wiring kit specifications

Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)

• Work Range:Up to about 80m(Hollowness)
• Connects to rear-view camera and front video screen
• Power: DC 12VTransmitter/Receiver Cable Length:1.5m

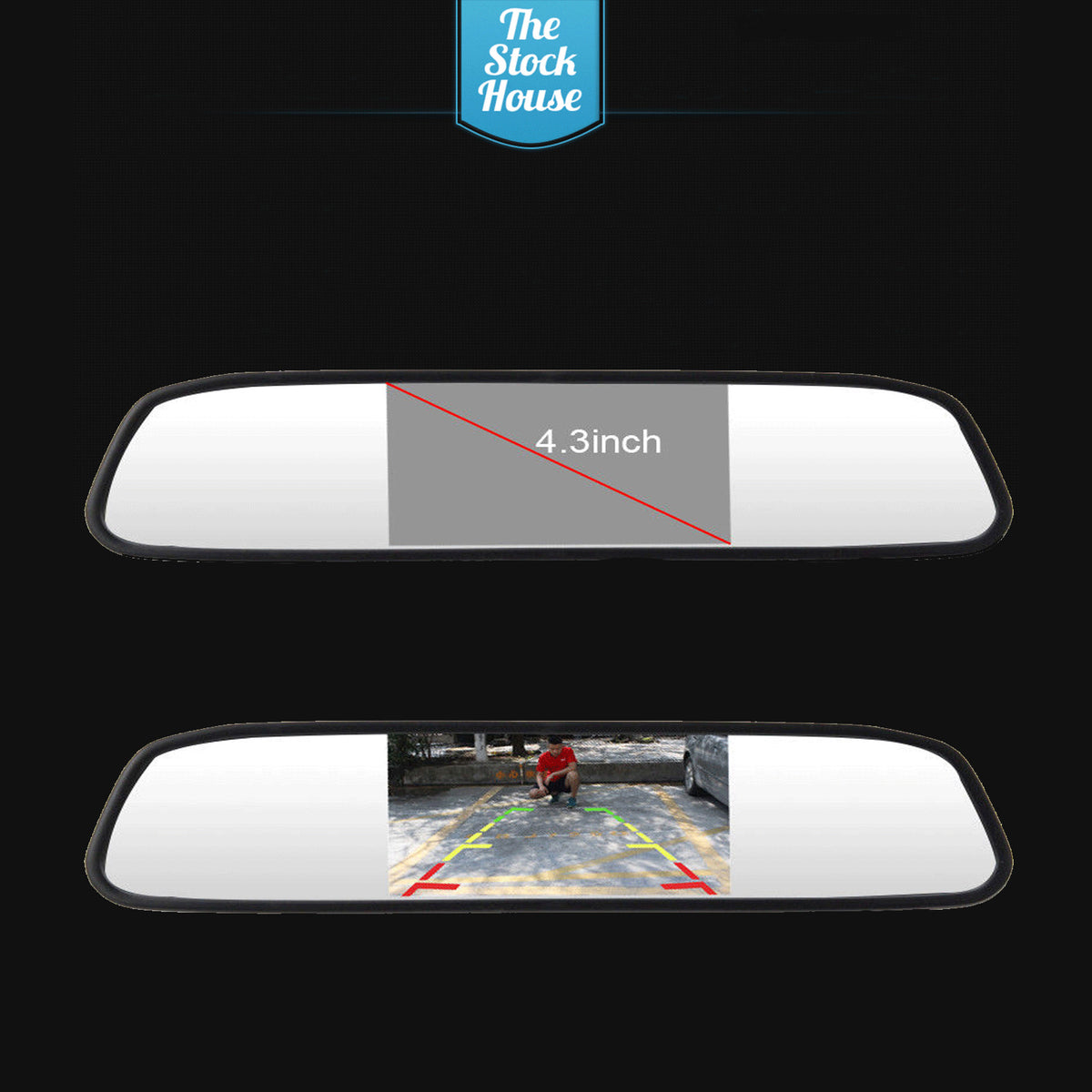

MONITOR SPECIFICATIONS

High-resolution picture.

Full colour LED backlight display.

With 2 video input: White video cable connects to car rearview camera, yellow one to other video equipment.

Parking rearview priority: The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car; the monitor will close itself after backing. Scenes will cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.

Supports Car DVD, VCD, camera, STB, satellite receiver, and other video equipment.

Screen rotatable.

With menu buttons, Brightness/contrast/hue/saturation/language (Chinese/English/Spanish) adjustable.

Easy to install.

Low power consumption.

No Audio input or output

• Chip: 4140+673
